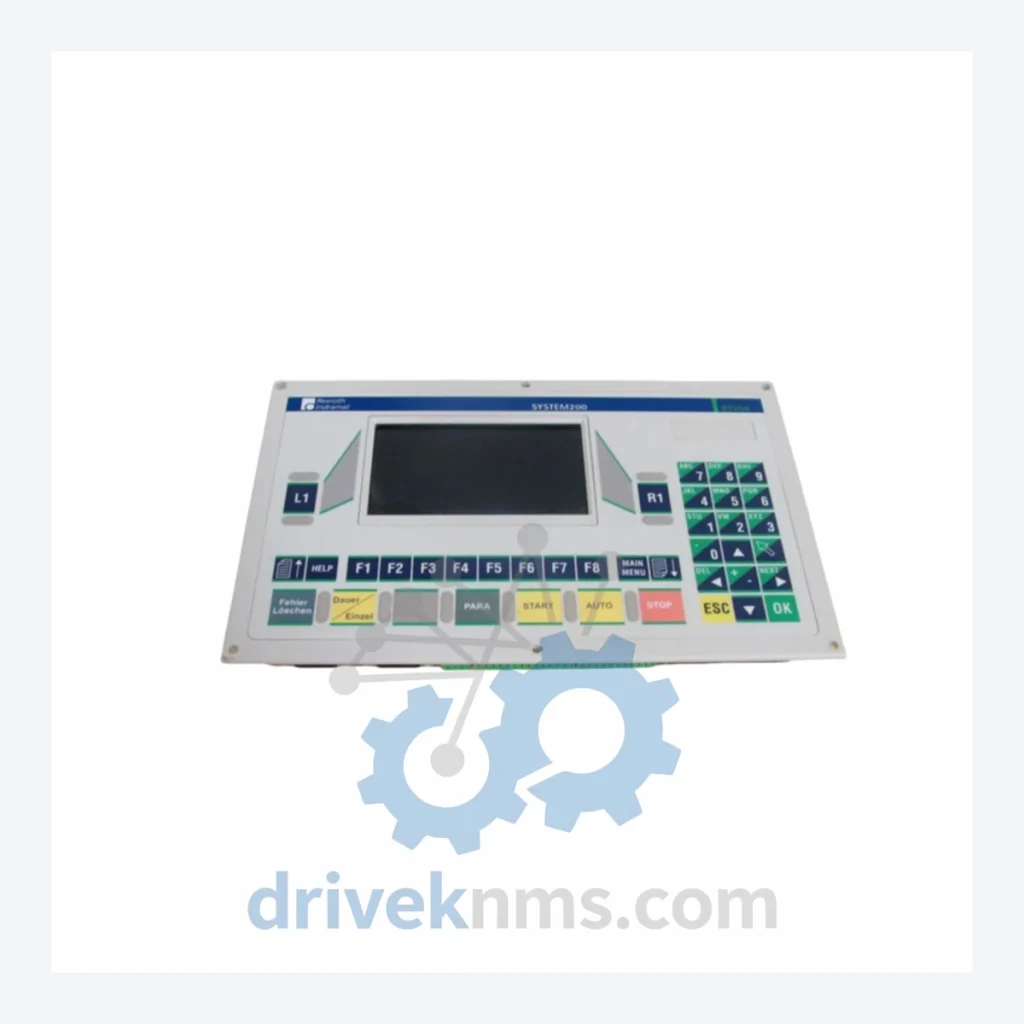

INDRAMAT BTV06.1HN-RS-FW Operator Panel – Obsolete BTV Series Spare Part

When a BTV06.1HN-RS-FW operator panel fails on an active production line, the consequences extend far beyond the cost of the component itself. INDRAMAT's BTV series has been discontinued for over a decade under the Bosch Rexroth consolidation. No new units are manufactured. No authorized channel restocks. A single failed panel can render an entire DIAX04 or ECODRIVE-based servo drive system inoperable — forcing plant managers into an immediate choice: locate a genuine replacement, or commit to a full drive system retrofit that routinely exceeds $200,000 USD in engineering, hardware, and lost production time.

DriveKNMS maintains verified physical stock of the BTV06.1HN-RS-FW. For facilities running legacy Bosch Rexroth motion control infrastructure, this is not a discretionary purchase — it is asset protection.

Technical Specifications

Note: Electrical parameters not listed here are subject to unit-level verification during our QA process. No parameters are published without physical confirmation.

Solving the Discontinued Hardware Crisis

The BTV06.1HN-RS-FW is the local operator interface for INDRAMAT servo drive systems — used for parameter input, fault diagnostics, and drive commissioning directly at the machine. In facilities where DIAX04 or DKC-series drives remain in service, this panel is the only native interface that requires zero software reconfiguration or communication protocol adaptation.

Bosch Rexroth's official end-of-life for the INDRAMAT BTV product line means that procurement teams can no longer source this component through standard distribution. The secondary market is the only viable channel — and within that market, verified stock with documented QA history is scarce.

Plant managers facing system retirement pressure from corporate often underestimate the true cost of early decommissioning. A servo drive system that has been tuned, calibrated, and integrated into a production process over 10–15 years carries embedded value that no datasheet captures. Replacing it with a modern equivalent requires re-engineering of the control architecture, rewriting of PLC logic, retraining of maintenance staff, and a commissioning period that takes the line offline. The BTV06.1HN-RS-FW, by contrast, is a drop-in replacement that restores full system function within hours.

How to extend your INDRAMAT-based automation asset life by 5–10 years:

• Identify single-point-of-failure components in your drive system — operator panels, feedback modules, and power supply boards are the most common failure points in aging INDRAMAT installations. Secure at least one spare of each before they become unavailable.
• Establish a critical spares inventory for each production line. The cost of holding two BTV06.1HN-RS-FW units is a fraction of one hour of unplanned downtime on a CNC or press line.
• Document firmware versions currently running on your DKC or DIAX04 drives. Compatibility between the operator panel firmware and drive firmware is fixed — sourcing a panel with a mismatched firmware version creates commissioning risk. DriveKNMS verifies firmware revision on all units prior to shipment.
• Schedule preventive inspection cycles for electrolytic capacitors in the drive power stage every 7–8 years. Capacitor degradation is the leading cause of drive failure in systems of this age — and it is detectable before catastrophic failure occurs.
• Negotiate a long-term supply agreement with a specialist distributor. Spot-buying obsolete parts during a breakdown is the most expensive procurement strategy. Pre-positioned stock eliminates emergency freight costs and lead time risk.

Condition & Reliability Assurance

Every BTV06.1HN-RS-FW unit shipped by DriveKNMS passes a structured 5-step inspection protocol before it leaves our facility:

1. Visual and mechanical inspection: Housing integrity, keypad tactile response, connector pin condition, and label legibility are checked against OEM reference standards.
2. Electrolytic capacitor assessment: Internal capacitors are tested for ESR (Equivalent Series Resistance) and capacitance retention. Units showing capacitor degradation are either recapped with equivalent-spec components or rejected.
3. Firmware version verification: The firmware revision loaded on the panel is identified and documented. Customers are advised of the revision prior to shipment to confirm compatibility with their drive system.
4. Pin and connector corrosion inspection: All interface connectors are inspected under magnification for oxidation, pin deformation, and contact resistance. Affected contacts are treated or the unit is rejected.
5. Functional power-on test: Where test fixtures permit, units are powered and display function, keypad response, and serial communication output are verified.

Units that do not pass all five stages are not sold as functional spares. Condition grade is documented and disclosed on the shipment certificate.

Key Features for System Maintenance

• Drop-in replacement: The BTV06.1HN-RS-FW installs directly into existing INDRAMAT drive system mounting positions. No mechanical modification required.
• No reprogramming required: Drive parameters stored in the drive controller are not affected by panel replacement. The operator panel does not hold drive configuration data — swap the panel, restore operation.
• Avoids engineering retrofit costs: Substituting a modern HMI for the BTV06.1HN-RS-FW requires RS-232 protocol adaptation, custom cable fabrication, and software integration work. The genuine spare eliminates all of this.
• Maintains system certification integrity: In regulated manufacturing environments (automotive, pharmaceutical, aerospace), replacing a certified component with a non-OEM substitute may trigger re-validation requirements. A genuine INDRAMAT BTV06.1HN-RS-FW replacement preserves the original system configuration.

FAQ

Q: What warranty applies to an obsolete part like the BTV06.1HN-RS-FW?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on verified New Old Stock (NOS) units. Warranty covers functional failure under normal operating conditions and excludes physical damage after delivery.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects or authorized surplus channels. We provide a shipment certificate with the unit's serial number, condition grade, firmware revision, and QA inspection record. Customers are welcome to request pre-shipment photos.

Q: Should I buy more than one unit as a long-term reserve?
A: For any production line where the BTV06.1HN-RS-FW is a single point of failure, holding a minimum of two units is the standard recommendation. Given the declining availability of this part in the secondary market, procurement teams managing multi-line facilities should consider a site-level reserve of three to five units. Contact us to discuss volume pricing.

Q: Can DriveKNMS source this part if it is not currently in stock?
A: We maintain active sourcing relationships across industrial surplus networks in Europe and Asia. If current stock is depleted, submit an RFQ and we will provide a lead time estimate within 48 hours.
