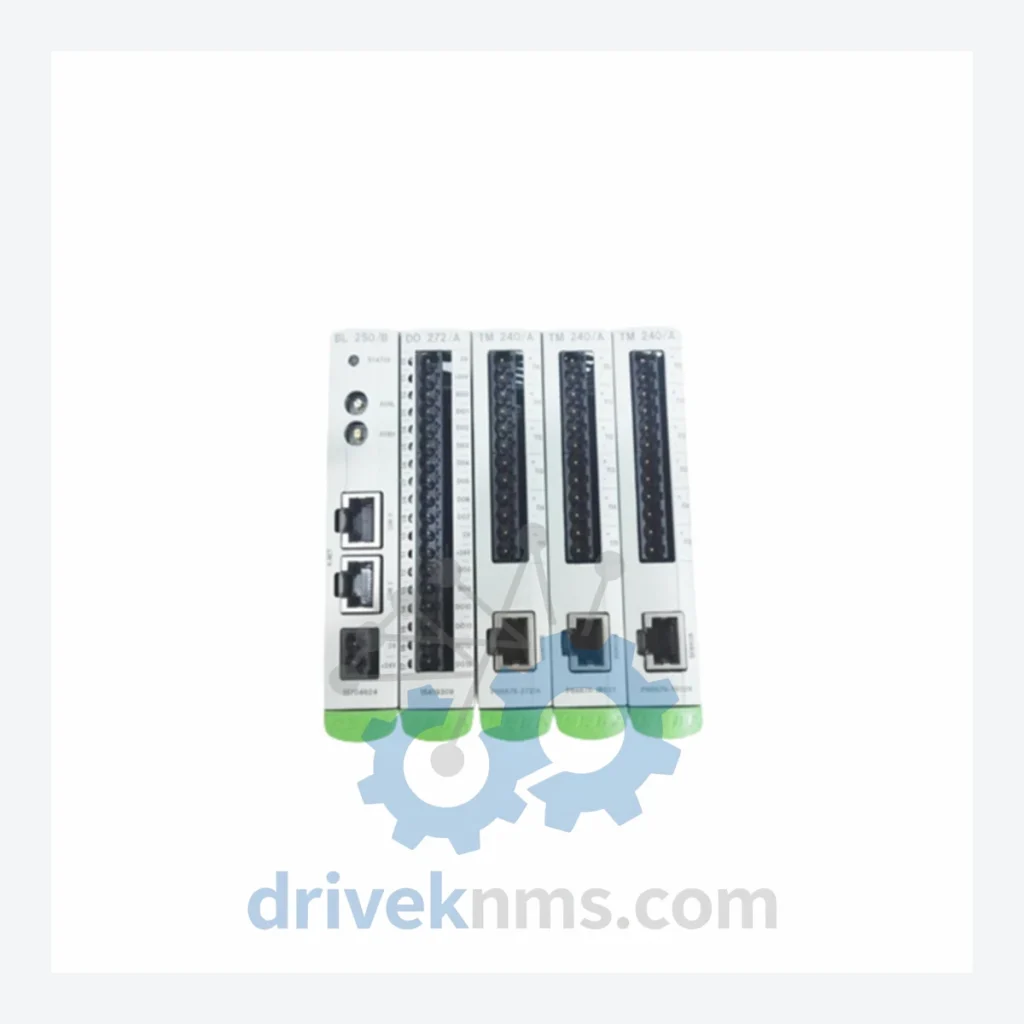

KEBA DO272 Modules: DO272/A

Technical Dossier

Product Details And Specifications

KEBA DO272 Series: Comprehensive Module Range and Technical Overview

The KEBA DO272 series is a family of digital output (DO) controller modules engineered for deployment within KEBA's modular programmable logic controller (PLC) and distributed control system (DCS) platforms. Manufactured in Austria, these modules are installed across heavy industrial sectors including chemical processing plants, oil refineries, pulp and paper facilities, and power generation infrastructure. The DO272/A variant is the primary catalogued unit in this series, providing discrete output signal control for field actuators, relay drivers, and solenoid valve interfaces. KEBA's control hardware is recognized for its deterministic scan-cycle performance and robust backplane communication architecture, making the DO272 series a long-term fixture in plant-floor automation cabinets globally.

The Evolution of DO272 Architecture

The DO272 series was developed as part of KEBA's modular I/O expansion strategy for its CP (Controller Platform) and DP (Distributed Periphery) product lines. Early iterations of KEBA digital output modules used parallel backplane addressing with fixed slot assignments, limiting hot-swap capability. The DO272 generation introduced improved bus isolation and diagnostic feedback per channel, enabling fault detection without full rack shutdown — a critical requirement for continuous-process industries.

As KEBA transitioned its controller ecosystem toward the e-series and later the KeMotion and KeControl platforms, the DO272 series remained backward-compatible with legacy rack configurations, allowing facilities to extend asset life without full system replacement. The /A hardware revision designation indicates a specific PCB revision level, typically associated with improved EMC compliance and revised output driver ICs. Facilities running mixed-generation KEBA racks must verify firmware compatibility between the CPU module and installed DO272/A units before substitution.

In the current product lifecycle, the DO272 series is classified as mature/end-of-active-production. KEBA no longer lists these modules in its primary commercial catalog, and procurement is dependent on authorized distributors, certified repair centers, and industrial spare parts suppliers. Long-term maintenance support for installed DO272/A units is available through third-party lifecycle extension programs.

DO272 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented and commonly sourced modules within the KEBA DO272 series and its directly associated I/O platform. Each entry reflects a distinct hardware function within the KEBA modular rack system:

DO272/A: Digital output module, 16-channel, 24 VDC, sourcing output type, backplane bus interface.
DO272/B: Digital output module, revised hardware revision B, enhanced short-circuit protection per channel.
DI272/A: Digital input module, 16-channel, 24 VDC, sink input, paired platform counterpart to DO272/A.
DI272/B: Digital input module, hardware revision B, improved noise immunity filter settings.
AI272/A: Analog input module, 8-channel, 4–20 mA / 0–10 V configurable, 12-bit resolution.
AO272/A: Analog output module, 4-channel, 4–20 mA output, field loop-powered configuration.
CP272/A: CPU/controller module for the 272-platform rack, handles program execution and backplane arbitration.
CP272/B: CPU module revision B, expanded SRAM, faster scan cycle, Ethernet onboard.
PS272/A: Power supply module for 272-series rack, 24 VDC input, internal 5 VDC backplane rail.
PS272/B: Redundant power supply module, dual-feed input, automatic failover.
COM272/A: Communication adapter module, PROFIBUS-DP slave interface, 12 Mbit/s.
COM272/B: Communication adapter module, Modbus RTU / TCP dual-mode interface.
IM272/A: Interface module for rack expansion, connects primary rack to remote I/O rack via fiber.
IM272/B: Interface module, copper-link variant, up to 100 m rack-to-rack distance.
DO272/C: Digital output module, relay output type, 8-channel, 230 VAC / 2 A per channel, for high-voltage actuator control.
DI272/C: Digital input module, AC input type, 115/230 VAC, 8-channel, for field signal conditioning.
TC272/A: Thermocouple input module, 8-channel, Type J/K/T/E selectable, cold-junction compensation onboard.

Sourcing Hard-to-Find & Obsolete DO272 Parts

DriveKNMS maintains a dedicated inventory program for KEBA DO272 series modules that are no longer available through primary distribution channels. As the DO272 platform has entered its end-of-active-production phase, procurement through standard KEBA authorized distributors is unreliable, with lead times frequently exceeding 26 weeks or resulting in no-quote responses.

DriveKNMS sources DO272/A and associated platform modules through a verified network of decommissioned plant asset liquidations, certified refurbishment programs, and bonded warehouse stock. All units are cross-referenced against KEBA's published hardware revision documentation prior to listing. For facilities operating DO272-based racks under long-term service agreements (LTSA) or requiring spare parts for planned maintenance shutdowns, DriveKNMS provides advance reservation and consignment stocking options. Inquiries for bulk quantities, kitted rack assemblies, or specific hardware revision requirements are handled directly by the technical sales team.

Quality Control for the DO272 Range

KEBA DO272 series modules present specific test challenges due to their integrated backplane bus transceivers and multi-channel output driver arrays. DriveKNMS applies the following test protocol to all DO272/A and platform-equivalent units prior to dispatch:

Backplane Bus Communication Test: Each module is seated in a KEBA-compatible test rack and subjected to full backplane read/write cycle verification using a reference CP272 controller. Bus arbitration errors, address conflicts, and timeout faults are logged and disqualify the unit from resale.
Channel-Level Output Verification: All 16 output channels on DO272/A are individually energized and load-tested at rated current (typically 0.5 A per channel at 24 VDC). Short-circuit protection response time is measured per channel.
Thermal Stress Cycling: Units are cycled between 0°C and 55°C operating range over a minimum 4-hour soak period to identify latent solder joint failures and capacitor degradation common in aged PCB assemblies.
Firmware & Revision Identification: Hardware revision markings are verified against KEBA's revision matrix. Mismatched or remarked units are quarantined.
Visual and Mechanical Inspection: Backplane connector pin condition, faceplate label integrity, and LED indicator functionality are inspected under magnification. Units with bent pins or damaged bus connectors are rejected.
