KEBA KETOP T50 Modules: KETOP T50 R01 VX/69908/14

Technical Dossier

Product Details And Specifications

KEBA KETOP T50 Series: Comprehensive Module Range and Technical Overview

The KEBA KETOP T50 is a ruggedized operator terminal platform developed by KEBA AG (Austria), designed for deployment in demanding industrial environments including chemical processing plants, oil refineries, offshore platforms, and nuclear auxiliary systems. The KETOP T50 series functions as a portable, panel-mountable human-machine interface (HMI) unit, providing operators with direct machine control, diagnostic visualization, and safety-rated enable switching in close-proximity machine operation scenarios. Its IP65-rated enclosure, reinforced cable management, and multi-protocol communication stack make it a standard specification component in European and Asian heavy-industry machine tool and robotics installations. The series is widely integrated with KEBA's KeMotion and KeDrive automation platforms, as well as third-party CNC and PLC controllers via standardized fieldbus interfaces.

The Evolution of KETOP T50 Architecture

The KETOP T50 platform was introduced as a successor to KEBA's earlier KETOP T30 and T40 series, addressing the industry's demand for larger display areas, higher-resolution touchscreens, and expanded safety function integration. Early KETOP T50 variants shipped with resistive touchscreen panels and RS-232/CAN-based communication. Subsequent hardware revisions introduced capacitive multi-touch displays, USB 2.0 host ports, and Ethernet-based fieldbus support (EtherCAT, PROFINET). The R01 hardware revision, as found in the KETOP T50 R01 VX/69908/14, represents the first-generation production release of the T50 platform, establishing the baseline mechanical and electrical architecture that later revisions built upon. Compatibility between R01 and later R02/R03 hardware revisions is limited to software-level interoperability; physical connectors, cable assemblies (VX-type), and mounting hardware are revision-specific. Integrators migrating from R01 to later revisions must account for updated cable harness part numbers and revised safety relay wiring schemas. The T50 series has entered the mature/end-of-active-production phase; KEBA continues to provide spare parts and firmware maintenance but no longer issues new feature releases for this platform. Long-term maintenance support (LTMS) contracts are available through authorized distributors and specialist spare parts suppliers such as DriveKNMS.

KETOP T50 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules and variants within the KEBA KETOP T50 series. Each entry reflects a distinct hardware configuration, revision, or accessory classification.

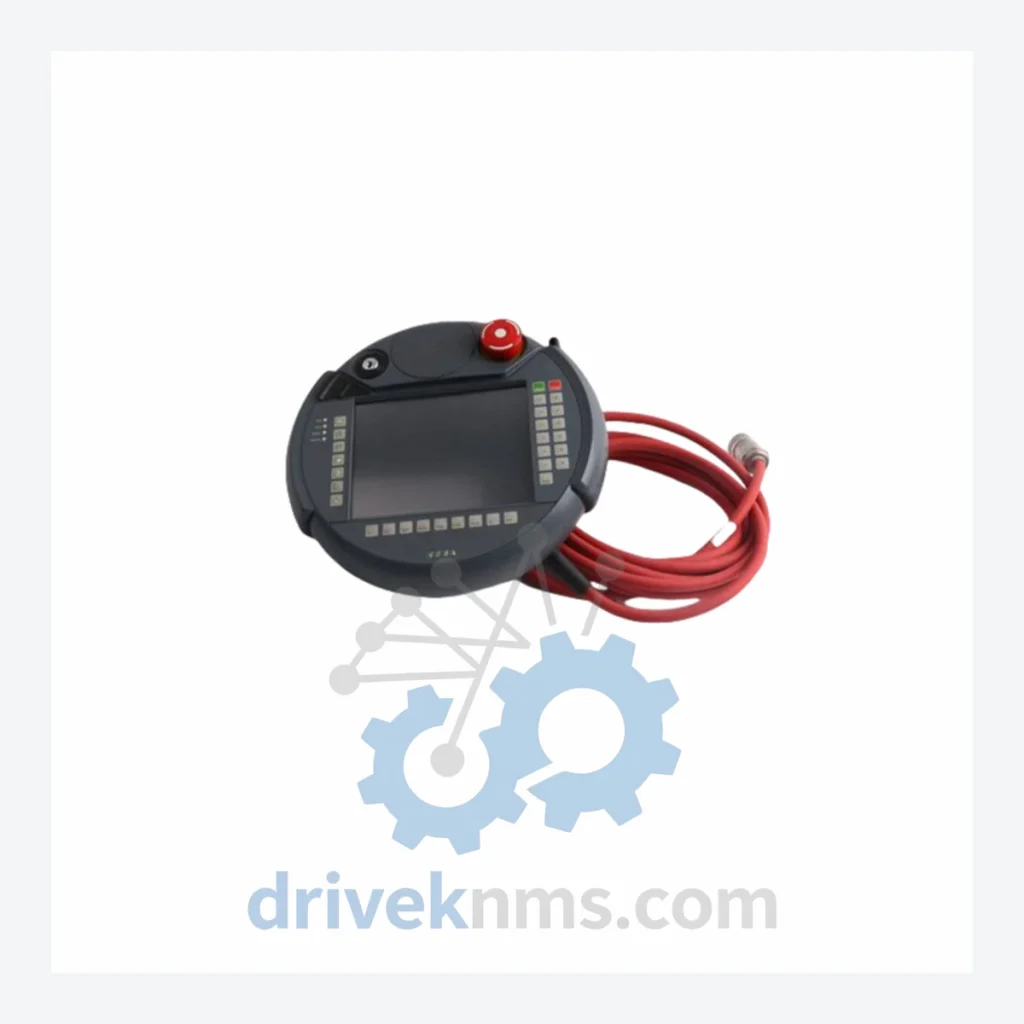

KETOP T50 R01 VX/69908/14: First-revision T50 operator terminal, VX cable assembly, 69908/14 configuration index — baseline production unit for KeMotion integration.
KETOP T50 R02 VX/69908/14: Second hardware revision; updated PCB layout, improved EMC shielding, same VX cable interface.
KETOP T50 R03 VX/69908/14: Third revision; capacitive touchscreen upgrade, revised enable switch assembly.
KETOP T50 R01 VX/69908/20: Extended configuration index variant; modified firmware parameter set for extended-axis machine tool applications.
KETOP T50 R02 VX/69908/20: R02 hardware with /20 configuration; common in CNC retrofit projects.
KETOP T50 R01 USB/69908/14: USB cable interface variant replacing VX connector; introduced for installations requiring USB-based data logging.
KETOP T50 R02 USB/69908/14: R02 hardware with USB interface; standard for post-2015 machine tool OEM builds.
KETOP T50 R03 USB/69908/20: Latest USB-interface variant with /20 configuration; highest firmware compatibility with KeMotion 3.x.
KETOP T50 R01 ETH/69908/14: Ethernet-interface variant; supports PROFINET and EtherCAT topology for distributed control architectures.
KETOP T50 R02 ETH/69908/14: R02 Ethernet variant; revised RJ45 port placement, improved cable strain relief.
KETOP T50 R01 VX/69908/30: /30 configuration index; extended safety function set, dual-channel enable switch wiring.
KETOP T50 R02 VX/69908/30: R02 hardware with dual-channel safety enable; common in collaborative robot (cobot) integration projects.
KETOP T50 CABLE VX-5M: 5-meter VX-type spiral cable assembly for KETOP T50 R01/R02; field-replaceable consumable.
KETOP T50 CABLE VX-10M: 10-meter VX-type spiral cable assembly; for large-footprint machine tool installations.
KETOP T50 CABLE USB-5M: 5-meter USB spiral cable assembly for USB-interface KETOP T50 variants.
KETOP T50 MOUNT-PANEL: Panel-mount bracket kit for fixed-station KETOP T50 installations; includes M4 hardware set.
KETOP T50 BATTERY-KIT: Replacement RTC battery kit for KETOP T50 series; required for units in long-term storage or after deep discharge events.

Sourcing Hard-to-Find & Obsolete KETOP T50 Parts

The KETOP T50 R01 hardware revision, including the KETOP T50 R01 VX/69908/14, is no longer manufactured by KEBA AG. Lead times through standard distribution channels for R01-series units and associated VX cable assemblies are typically 16–52 weeks, with no guarantee of availability. DriveKNMS maintains a dedicated inventory of tested KETOP T50 R01 units, VX cable assemblies, and associated mounting hardware sourced from decommissioned production lines, factory overstock, and controlled end-of-life buybacks. All units are cataloged by hardware revision, configuration index, and firmware version prior to listing. For customers operating legacy KEBA KeMotion or KeDrive installations where R01 hardware is a fixed specification requirement — due to machine OEM certification constraints or validated process control configurations — DriveKNMS provides direct unit-for-unit replacement sourcing without requiring system-level revalidation. Customers requiring multiple units for critical spares inventory are encouraged to submit consolidated parts lists for volume pricing assessment.

Quality Control for the KETOP T50 Range
