KUBOTA KF Series Modules: KF-C1000 Operation Terminal —

Technical Dossier

Product Details And Specifications

KUBOTA KF Series: Comprehensive Module Range and Technical Overview

The KUBOTA KF Series is a distributed control system (DCS) platform developed by Kubota Corporation for deployment in continuous-process industries. Installed across chemical plants, water treatment facilities, food processing lines, and industrial automation environments throughout Asia and globally, the KF Series provides a modular, rack-based architecture that separates controller, I/O, communication, and operator interface functions into discrete, field-replaceable units. The KF-C1000 Operation Terminal serves as the primary human-machine interface (HMI) node within this architecture, providing operators with real-time process visualization, alarm management, and setpoint adjustment capabilities. The KF platform's long service life — spanning multiple decades of active deployment — means that spare parts availability and lifecycle support are primary concerns for maintenance engineers managing aging installations.

The Evolution of KF Series Architecture

The KUBOTA KF Series evolved from earlier proprietary Kubota process control platforms into a structured DCS architecture aligned with IEC 61131 programming conventions. Early KF deployments relied on dedicated serial backplane communication between controller and I/O modules, with operator terminals functioning as standalone units connected via RS-232 or RS-485 links. As the platform matured, Ethernet-based supervisory connectivity was introduced, allowing KF systems to interface with SCADA layers and plant information networks without replacing the core controller and I/O infrastructure. This backward-compatible design philosophy extended the operational lifespan of installed KF systems significantly, but it also created compatibility constraints: newer communication modules may not be interchangeable with first-generation backplane assemblies without firmware verification. Maintenance teams managing mixed-generation KF installations must verify module revision levels before substitution. The KF-C1000 Operation Terminal is associated with mid-to-late generation KF deployments and requires confirmation of firmware compatibility when used as a replacement in earlier rack configurations.

KF Series Full Catalog & Functionalities (SKU List)

The following SKUs represent documented modules within the KUBOTA KF Series platform, organized by functional category. Each entry reflects the module's primary role within the DCS architecture.

Operation Terminals & HMI

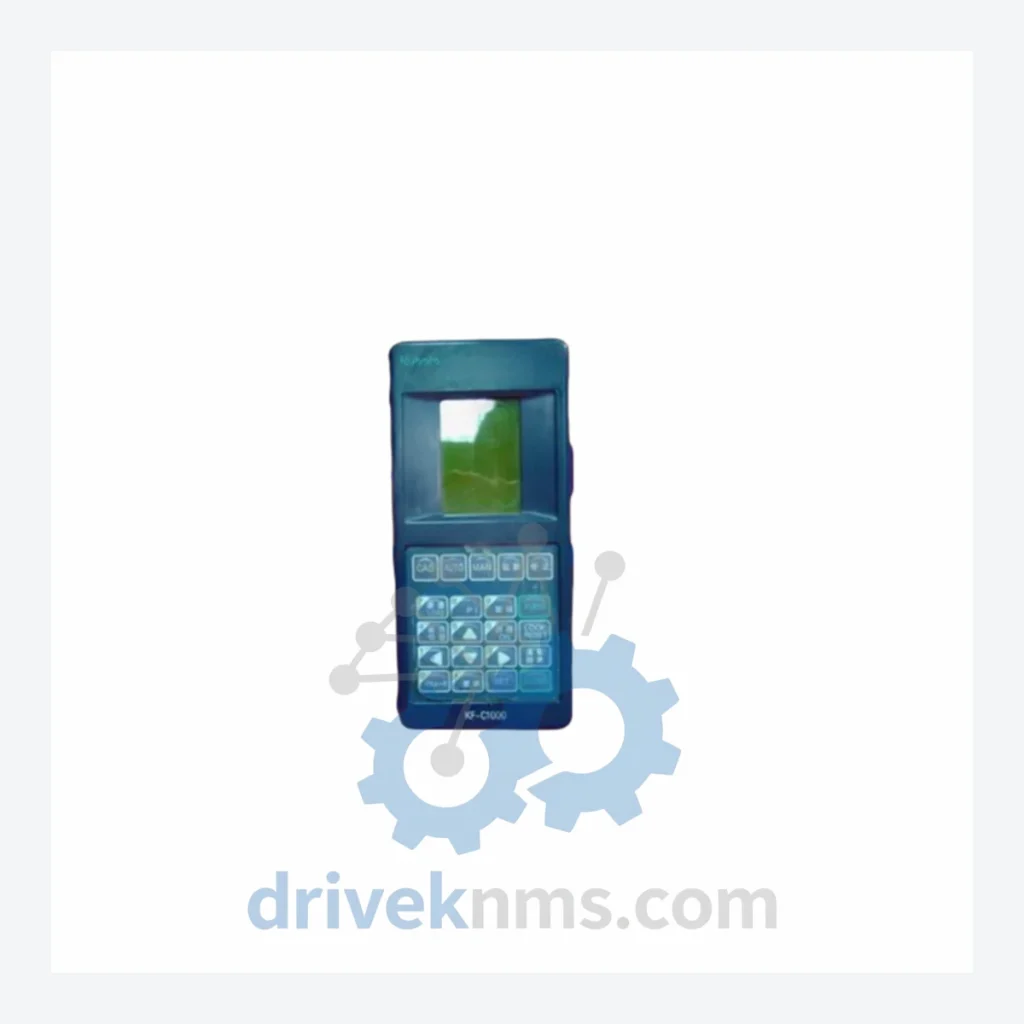

• KF-C1000: Operation terminal; primary operator interface for process visualization and control input.
• KF-C1001: Enhanced operation terminal with expanded display resolution and alarm history logging.
• KF-C1010: Compact operator station for local panel mounting in field enclosures.

CPU & Controller Modules

• KF-P100: Main process controller CPU; executes control logic and manages I/O bus communication.
• KF-P110: Redundant CPU module for high-availability controller configurations.
• KF-P200: Advanced controller with expanded memory and faster scan cycle for complex loop control.

Analog Input (AI) Modules

• KF-A100: 8-channel analog input module; 4–20 mA / 1–5 V DC, 12-bit resolution.
• KF-A110: 16-channel analog input module; supports thermocouple and RTD signal types.
• KF-A120: High-speed analog input module for fast-response process measurements.

Analog Output (AO) Modules

• KF-A200: 8-channel analog output module; 4–20 mA output for final control element actuation.
• KF-A210: 4-channel isolated analog output module for precision valve positioning.

Digital Input (DI) Modules

• KF-D100: 32-channel digital input module; 24 V DC, sink/source configurable.
• KF-D110: 16-channel digital input module with individual channel diagnostics.

Digital Output (DO) Modules

• KF-D200: 32-channel digital output module; 24 V DC, 0.5 A per channel.
• KF-D210: 16-channel relay output module; 250 V AC / 2 A per contact.

Communication & Network Modules

• KF-N100: Ethernet communication module; TCP/IP interface for SCADA and DCS supervisory integration.
• KF-N110: PROFIBUS-DP master/slave communication adapter.
• KF-N120: Serial communication module; RS-232/RS-485 multi-protocol support.

Power Supply Modules

• KF-PS100: 24 V DC rack power supply module; 10 A rated output for standard I/O rack configurations.
• KF-PS110: Redundant power supply module for critical process rack installations.

Sourcing Hard-to-Find & Obsolete KF Series Parts

The KUBOTA KF Series has entered the mature-to-end-of-life phase of its product lifecycle. Kubota Corporation has progressively reduced active manufacturing support for KF platform modules, and several SKUs — including early-revision CPU and analog I/O modules — are no longer available through standard distribution channels. DriveKNMS maintains a dedicated inventory of KF Series spare parts sourced through authorized secondary market channels, including tested-good pull units, refurbished modules with verified functionality, and new-old-stock (NOS) units where available. For facilities operating KF-based DCS installations with no near-term migration budget, DriveKNMS provides lifecycle extension support: sourcing specific module revisions, verifying firmware compatibility, and supplying documentation packages where original manuals are unavailable. Inquiries for obsolete or low-availability KF Series modules — including the KF-C1000 and associated controller and I/O modules — are handled directly by our technical sourcing team.

Quality Control for the KF Series Range

KUBOTA KF Series modules incorporate proprietary backplane bus interfaces and internal diagnostic registers that require specialized test procedures beyond standard bench power-up verification. DriveKNMS applies a multi-stage quality control protocol to all KF Series units processed through our facility. Each module undergoes visual inspection for backplane connector wear, capacitor condition, and PCB contamination. Functional testing is performed using KF-compatible rack test fixtures that simulate live backplane communication, allowing verification of I/O channel accuracy, CPU scan cycle integrity, and communication module handshake behavior. For operation terminals such as the KF-C1000, display panel integrity, keypad response, and internal memory retention are verified under powered test conditions. Modules that pass all test stages are issued a DriveKNMS test certification record, which accompanies the unit on shipment.
