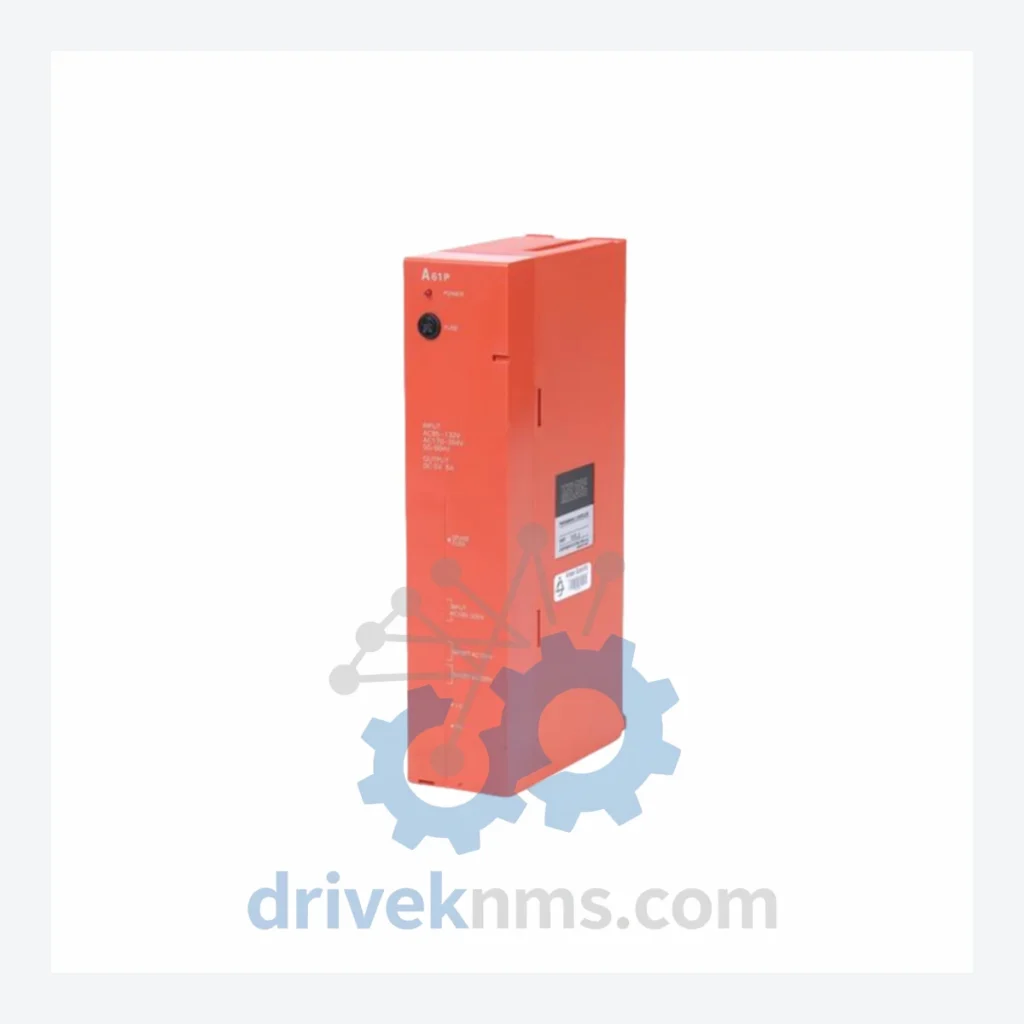

Mitsubishi MELSEC A-Series Power Supply Modules: A61P

Technical Dossier

Product Details And Specifications

Mitsubishi MELSEC A-Series Technical Notes

The Mitsubishi MELSEC A-Series programmable logic controller platform has been a foundational control architecture in global heavy industry since its introduction in the 1980s. Deployed extensively across petrochemical complexes, nuclear power facilities, steel mills, automotive assembly lines, and offshore refinery platforms, the A-Series established Mitsubishi Electric's position as a tier-one PLC supplier in process-critical environments. The A61P power supply module is one of the most widely installed components within this ecosystem, providing regulated DC power to the A-series base units across a range of demanding operational conditions. Installed base counts for A-Series systems remain significant globally, with many facilities operating these systems well beyond their original design lifecycle due to the cost and complexity of full DCS migration projects.

The Evolution of MELSEC A-Series Architecture

The MELSEC A-Series was introduced as a modular, rack-based PLC platform designed for mid-to-large scale discrete and process control applications. Early configurations centered on the A2AS and A3A CPU modules, which communicated with I/O modules via a proprietary parallel backplane bus. Power supply modules such as the A61P and A62P were engineered to deliver stable 5VDC and 24VDC rails to the base unit, with the A61P rated at 5A output on the 5V rail.

MELSEC A-Series Full Catalog & Functionalities (SKU List)

Power Supply Modules

• A61P: 100–240VAC input, 5VDC/5A output power supply for A-Series base units
• A62P: 100–240VAC input, 5VDC/3A + 24VDC/0.6A dual-output power supply module
• A63P: 24VDC input power supply module for battery-backed or DC-only panel environments
• A65P: High-capacity power supply, 5VDC/8A output for large-slot base configurations

CPU Modules

• A2ASCPU: Standard A-Series CPU, 8K step program memory, basic instruction set
• A2ASCPU-S1: Extended A2ASCPU with built-in RS-232C port and enhanced diagnostics
• A3ACPU: High-performance CPU, 30K step memory, floating-point support
• A2UCPU: Universal CPU with expanded I/O addressing and MELSECNET/B compatibility
• A3UCPU: High-end universal CPU, 60K step memory, multi-network support
• A2USHCPU-S1: Super-high-speed CPU variant with 0.2μs basic instruction cycle time

Digital Input (DI) Modules

• AX40: 16-point 100VAC digital input module, screw terminal
• AX80: 32-point 24VDC digital input module, high-density connector
• AX41: 16-point 200VAC digital input module for high-voltage field devices

Digital Output (DO) Modules

• AY40: 16-point relay output module, 2A per point, screw terminal
• AY80: 32-point transistor output module, 0.5A per point, sink type
• AY81: 32-point transistor output module, source type, for PNP field devices

Analog I/O Modules

• A68AD: 8-channel analog input module, 12-bit resolution, ±10V / 4–20mA selectable
• A62DA: 2-channel analog output module, 12-bit, voltage and current output

Communication & Network Adapter Modules

• AJ71UC24: RS-232C/RS-422 serial communication module, MELSEC protocol support
• AJ71QE71: Ethernet interface module, 10BASE-T, MELSEC communication protocol
• AJ71LP21: MELSECNET/10 optical loop network module

Quality Control for the MELSEC A-Series Range

A-Series modules present specific test challenges due to their parallel backplane bus architecture and age-related component degradation patterns. DriveKNMS applies a structured verification protocol for all A-Series units processed through its facility. Power supply modules including the A61P are bench-tested under load conditions replicating full base unit current draw, with output voltage stability measured across the 5VDC and 24VDC rails using calibrated instrumentation. CPU modules undergo program memory read/write cycle testing and watchdog timer verification. I/O modules are tested point-by-point using dedicated fixture boards that simulate field device signals. Communication modules are verified for protocol handshake integrity on RS-232C, RS-422, and Ethernet interfaces as applicable. Units exhibiting capacitor degradation, relay contact wear, or bus connector damage are flagged and either repaired to specification or removed from serviceable inventory.
