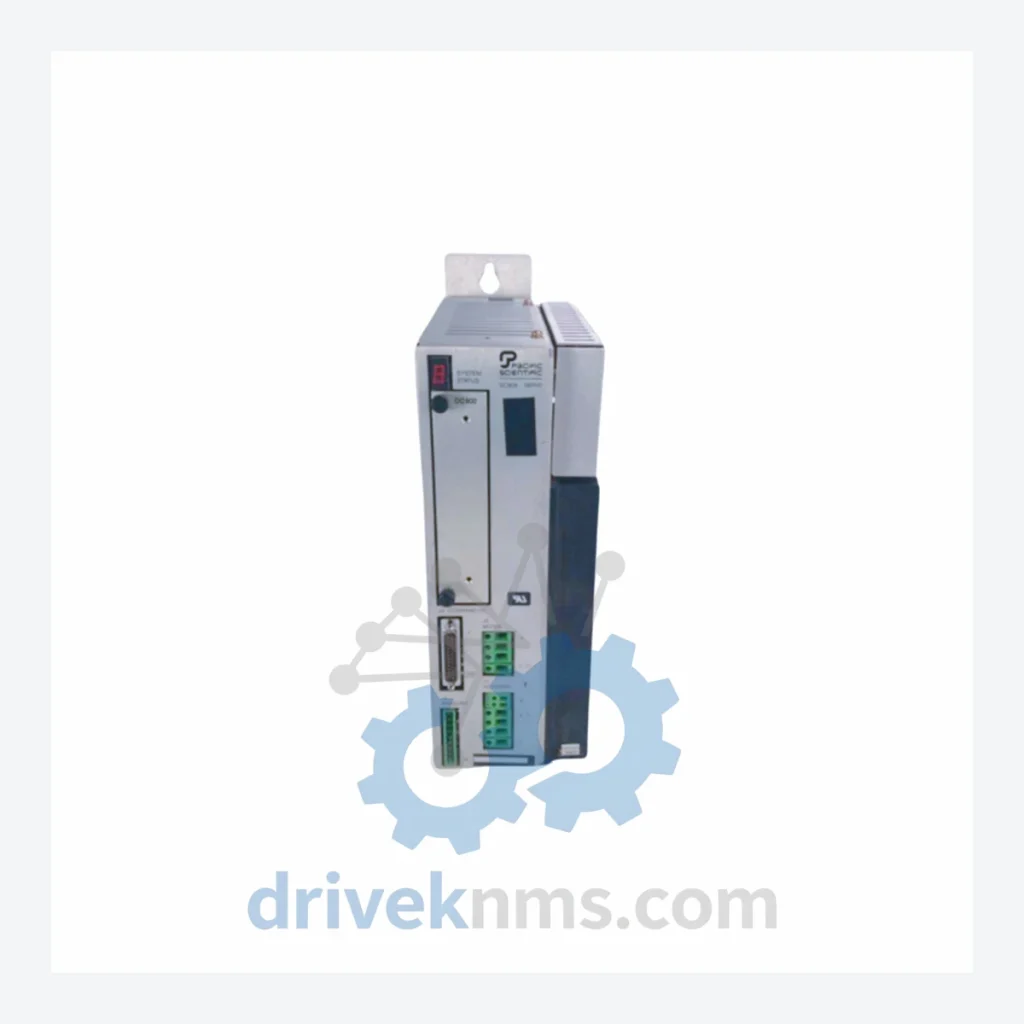

Pacific Scientific SC904 Series Servo Drives

Technical Dossier

Product Details And Specifications

Pacific Scientific SC904 Series: Comprehensive Module Range and Technical Overview

The Pacific Scientific SC904 series represents a line of analog servo drives engineered for precision motion control in continuous-duty industrial environments. Deployed extensively across chemical processing plants, oil refineries, nuclear facility auxiliary systems, and heavy manufacturing lines, the SC904 platform has accumulated a substantial global installed base since its introduction in the late 1980s. Its architecture centers on a PWM-based current control loop with resolver or encoder feedback compatibility, making it a standard reference design in multi-axis servo systems where deterministic torque response is required. The SC904-001-01 variant specifically addresses single-axis applications requiring a compact drive footprint with analog ±10 V command input and RS-232 diagnostic interface.

In heavy industrial sectors, the SC904 series is frequently found paired with Pacific Scientific brushless servo motors (R-series and N-series), integrated into legacy Danaher Motion and Kollmorgen-compatible control architectures following the corporate consolidation of Pacific Scientific under Danaher Corporation in 1998.

The Evolution of SC904 Architecture

The SC904 series was introduced as a successor to Pacific Scientific's earlier SC400 and SC700 analog drive families. The initial SC904 hardware revision used through-hole PCB construction with discrete IGBT switching stages, targeting servo motors in the 1–7.5 Nm continuous torque range. Subsequent hardware revisions (identified by the suffix digits in the part number, e.g., -001-01, -002-01, -003-01) introduced surface-mount logic boards, improved EMI filtering, and expanded current rating options.

The SC904 platform predates fieldbus-native servo drives. Communication is limited to analog command signals and RS-232 serial for parameter configuration via Pacific Scientific's SC-Configurator software. This architecture creates compatibility constraints when integrating SC904 drives into modern EtherCAT or PROFINET motion networks — typically requiring an analog output module from the PLC or motion controller as an intermediary.

By the mid-2000s, Pacific Scientific (then under Danaher/Kollmorgen) transitioned its servo drive portfolio toward the ViX, Platinum DDM, and later S700 series, which offer digital fieldbus interfaces and auto-tuning. The SC904 series entered end-of-life status, with official spare parts support discontinued. However, the drive remains in active service at facilities with long equipment replacement cycles, creating sustained demand for refurbished and new-old-stock (NOS) units.

SC904 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented SC904 series product range, classified by output current rating, feedback type, and hardware revision. All models share the core analog PWM servo drive architecture.

SC904-001-01: Single-axis analog servo drive, 3A cont. / 9A peak, resolver feedback, ±10V cmd input
SC904-002-01: Single-axis analog servo drive, 6A cont. / 18A peak, resolver feedback, ±10V cmd input
SC904-003-01: Single-axis analog servo drive, 10A cont. / 30A peak, resolver feedback, ±10V cmd input
SC904-001-02: Single-axis analog servo drive, 3A cont. / 9A peak, encoder feedback variant, ±10V cmd
SC904-002-02: Single-axis analog servo drive, 6A cont. / 18A peak, encoder feedback variant, ±10V cmd
SC904-003-02: Single-axis analog servo drive, 10A cont. / 30A peak, encoder feedback variant, ±10V cmd
SC904-001-03: Resolver feedback, 3A cont., extended temperature range (-20°C to +55°C operating)
SC904-002-03: Resolver feedback, 6A cont., extended temperature range variant
SC904-003-03: Resolver feedback, 10A cont., extended temperature range variant
SC904-004-01: High-current variant, 15A cont. / 45A peak, resolver feedback, panel-mount format
SC904-004-02: High-current variant, 15A cont. / 45A peak, encoder feedback, panel-mount format
SC904-005-01: 20A cont. / 60A peak, resolver feedback, for high-inertia load applications
SC904-005-02: 20A cont. / 60A peak, encoder feedback, for high-inertia load applications
SC904-001-01-R: Factory-refurbished SC904-001-01, full functional test, 90-day warranty
SC904-002-01-R: Factory-refurbished SC904-002-01, full functional test, 90-day warranty
SC904-003-01-R: Factory-refurbished SC904-003-01, full functional test, 90-day warranty
SC904-PSU-01: Dedicated 24VDC logic power supply module for SC904 series drives
SC904-CBL-RES: Resolver feedback cable assembly, 5m, shielded, SC904-compatible
SC904-CBL-ENC: Incremental encoder feedback cable assembly, 5m, shielded, SC904-compatible

Sourcing Hard-to-Find & Obsolete SC904 Parts

The SC904 series has been formally discontinued by Kollmorgen (successor to Pacific Scientific under Danaher). OEM channels no longer stock new units, and authorized repair centers have progressively reduced SC904 service capability as component availability for the drive's proprietary gate driver ICs and resolver interface ASICs has declined.

DriveKNMS maintains a dedicated inventory of SC904 series units sourced through controlled channels: decommissioned equipment lots from plant shutdowns, verified NOS stock from regional distributors, and refurbished units processed through our in-house servo drive repair facility. Each unit is cataloged by part number suffix to ensure hardware revision accuracy — a critical factor given that SC904 firmware and parameter sets are revision-specific and not cross-compatible between all suffix variants.

For facilities operating SC904 drives in safety-critical or continuous-process environments, DriveKNMS offers a lifecycle extension program: pre-tested spare units held in consignment, priority dispatch for emergency replacements, and cross-reference support to identify compatible modern alternatives (Kollmorgen S700, AKD series) where a controlled migration is feasible.

Quality Control for the SC904 Range

Each SC904 unit processed by DriveKNMS undergoes a structured test protocol before dispatch. The procedure addresses the specific failure modes documented in the SC904 field service history: DC bus capacitor degradation, resolver interface signal drift, IGBT gate driver latch-up, and RS-232 communication port failure.

Test stages include: incoming visual inspection for PCB corrosion, burnt components, and mechanical damage to the heatsink assembly; DC bus capacitance measurement against OEM specification (minimum 85% of rated capacitance); power-on functional test under no-load conditions with bus voltage ramped from 0 to rated; closed-loop servo test using a calibrated inertia load to verify current loop bandwidth and velocity loop stability; resolver or encoder signal integrity verification using an oscilloscope to confirm signal amplitude and phase accuracy; and RS-232 communication test using SC-Configurator software to confirm parameter read/write functionality. Units that fail any stage are either repaired to specification or quarantined and listed as parts-only.
