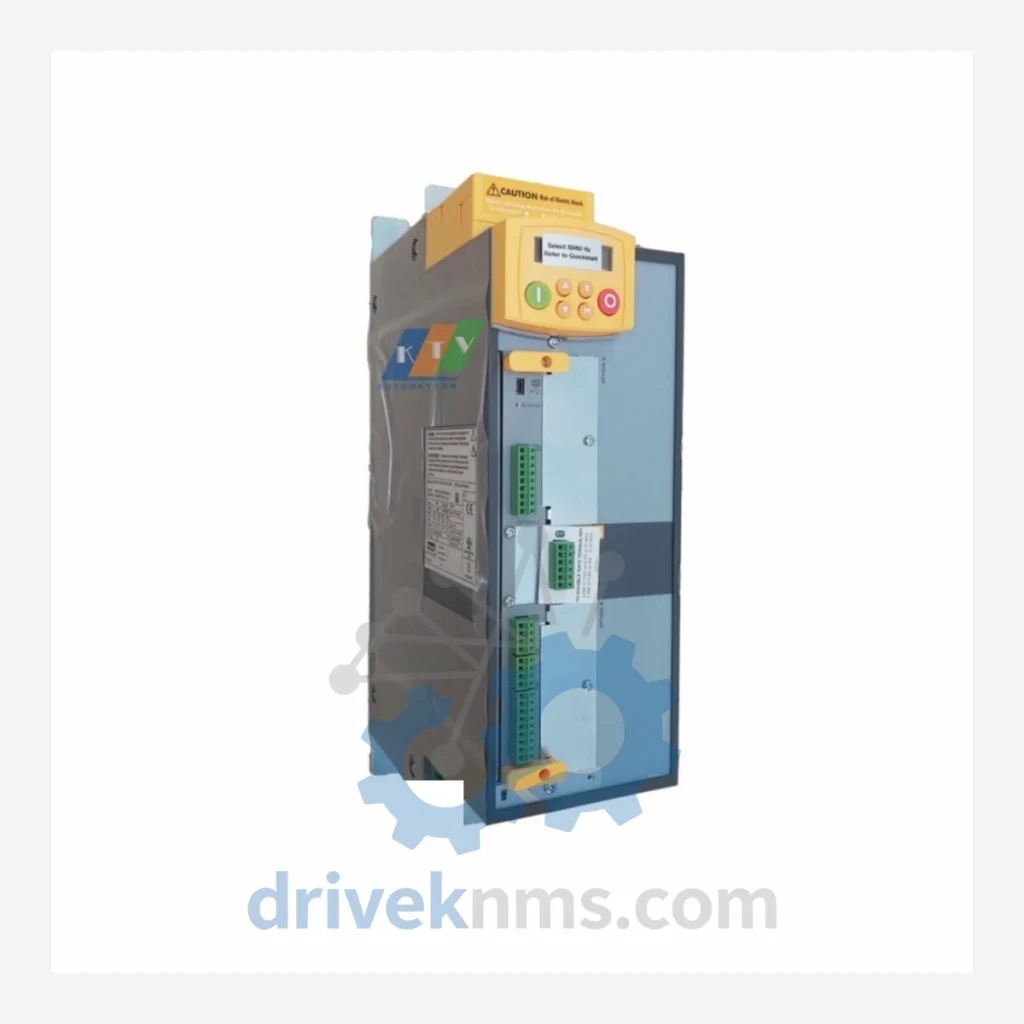

Parker 890CD Series DC Bus Inverter Drives: 890CD-532240C0-000-2A000

Technical Dossier

Product Details And Specifications

Parker 890CD Series: Comprehensive Module Range and Technical Overview

The Parker 890CD series is a high-performance DC bus inverter drive platform engineered for demanding industrial environments including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process manufacturing facilities. Designed around a common DC bus architecture, the 890CD allows multiple drive units to share a single rectifier front-end, significantly reducing harmonic distortion and energy consumption across multi-axis machine lines. The series covers output current ratings from 4A to 2000A+, making it one of the most scalable drive families in Parker Hannifin's SSD Drives division. Installed base spans several hundred thousand units globally, with active deployments in cement kilns, paper mills, steel rolling mills, and water treatment infrastructure.

The Evolution of 890CD Architecture

The 890CD series succeeded the earlier 890 and 590+ drive families, inheriting the field-proven SSD Drives control platform while introducing a modular DC bus topology. Early 890CD units (pre-2005) used analog reference inputs and relied on DSELite software for commissioning. From 2006 onward, Parker introduced the DSE Lite v5 and later DSE890 configuration tools, enabling full parameter backup, drive-to-drive cloning, and fieldbus integration via plug-in option cards. The architecture supports PROFIBUS-DP, DeviceNet, CANopen, Modbus RTU/TCP, and EtherNet/IP communication modules, all hot-swappable on the front-panel option slot. Later revisions introduced Safe Torque Off (STO) as a standard safety function compliant with IEC 61800-5-2 SIL2/PLd, replacing the earlier external contactor-based safety circuits. The 890CD-532240C0-000-2A000 variant specifically represents the 240A continuous output, 532V DC bus rating configuration with standard I/O complement and no fieldbus option pre-installed, positioned for retrofit and OEM integration projects.

890CD Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked configurations within the Parker 890CD series. Each unit is a self-contained inverter module intended for DC bus connection to a compatible Parker 890 series active front-end or diode rectifier.

890CD-532040C0-000-2A000: 40A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532075C0-000-2A000: 75A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532110C0-000-2A000: 110A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532150C0-000-2A000: 150A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532180C0-000-2A000: 180A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532240C0-000-2A000: 240A / 532V DC bus inverter, standard I/O, no fieldbus — this listing
890CD-532300C0-000-2A000: 300A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532400C0-000-2A000: 400A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532500C0-000-2A000: 500A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532600C0-000-2A000: 600A / 532V DC bus inverter, standard I/O, no fieldbus
890CD-532040C0-B00-2A000: 40A / 532V DC bus inverter with PROFIBUS-DP option card
890CD-532110C0-B00-2A000: 110A / 532V DC bus inverter with PROFIBUS-DP option card
890CD-532240C0-B00-2A000: 240A / 532V DC bus inverter with PROFIBUS-DP option card
890CD-532400C0-B00-2A000: 400A / 532V DC bus inverter with PROFIBUS-DP option card
890CD-532600C0-B00-2A000: 600A / 532V DC bus inverter with PROFIBUS-DP option card
890CD-532040C0-C00-2A000: 40A / 532V DC bus inverter with DeviceNet option card
890CD-532240C0-C00-2A000: 240A / 532V DC bus inverter with DeviceNet option card
890CD-532040C0-D00-2A000: 40A / 532V DC bus inverter with CANopen option card
890CD-532240C0-D00-2A000: 240A / 532V DC bus inverter with CANopen option card

Sourcing Hard-to-Find & Obsolete 890CD Series Parts

Parker Hannifin officially transitioned the 890CD series to a managed lifecycle status, with new production of certain low-volume configurations discontinued. DriveKNMS maintains a dedicated inventory of new-old-stock (NOS), refurbished, and tested-used 890CD units sourced from decommissioned plant equipment, OEM overstock, and authorized distributor liquidations. For end-users operating legacy 890CD installations in facilities where a full drive system upgrade is not economically viable — particularly in continuous-process industries where downtime costs exceed capital replacement budgets — DriveKNMS provides a direct replacement sourcing service. Customers submit their full drive nameplate data (model number, serial number, firmware revision, and option card part numbers) and receive a compatibility-verified replacement unit with a documented test report. Long-term maintenance contracts covering annual spare unit reservation are available for fleet operators managing 10 or more 890CD axes.

Quality Control for the 890CD Range

Each 890CD unit processed by DriveKNMS undergoes a structured multi-stage inspection protocol. Stage 1 covers visual inspection of the DC bus bar connections, IGBT gate driver boards, and capacitor bank for physical damage, electrolyte leakage, or thermal stress marks. Stage 2 involves powered bench testing at rated DC bus voltage with a resistive load bank, verifying output current linearity, overcurrent trip thresholds, and STO input response time. Stage 3 covers communication option card verification using live PROFIBUS-DP or DeviceNet network simulation to confirm parameter read/write integrity. Stage 4 is a 4-hour thermal soak test at 80% rated load to identify latent component failures. All units are shipped with a printed test report referencing the specific 890CD serial number, test date, firmware version confirmed, and technician ID. Units that do not pass all four stages are either repaired to component level or quarantined for parts recovery only.
