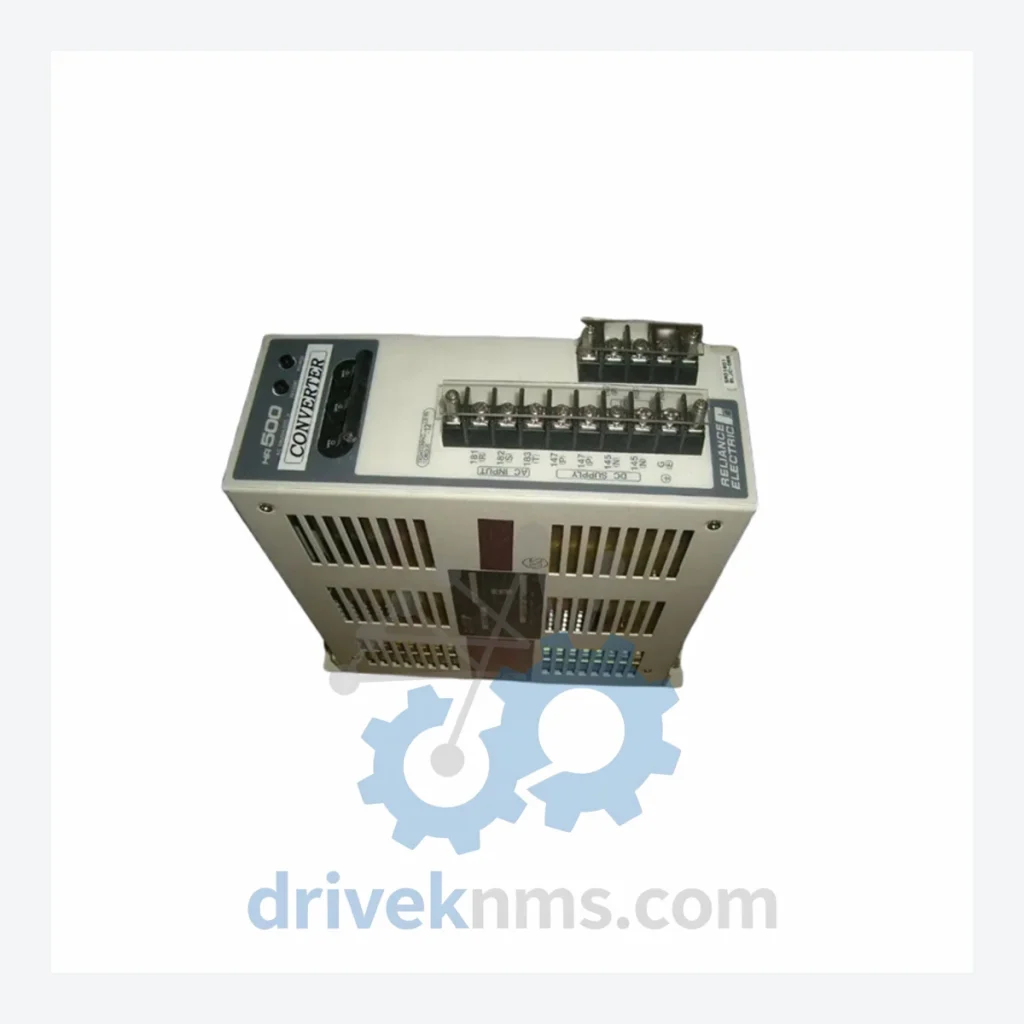

Reliance Electric HR500 Modules: HR500 BLJC-08R 5RD1601 AC Servo Module —

Technical Dossier

Product Details And Specifications

Reliance Electric HR500 Series: Comprehensive Module Range and Technical Overview

The Reliance Electric HR500 series represents one of the most widely deployed AC servo drive platforms in global heavy industry. Installed across petrochemical refineries, nuclear power generation facilities, offshore platforms, and continuous-process chemical plants, the HR500 architecture established a benchmark for closed-loop motion control in demanding industrial environments throughout the 1980s and 1990s. Its modular backplane design allowed system integrators to configure multi-axis servo systems with a high degree of flexibility, making it a preferred platform for OEM machine builders and plant automation engineers operating under strict uptime requirements. The series remains in active service at numerous legacy installations where full system replacement is cost-prohibitive, driving sustained demand for certified spare parts and lifecycle extension support.

The Evolution of HR500 Architecture

The HR500 platform was introduced by Reliance Electric — then a subsidiary of Rockwell Automation — as a successor to earlier analog servo systems. Its core innovation was a fully digital closed-loop control architecture using resolver-based feedback, enabling precise velocity and torque regulation without the drift inherent in analog designs. Early HR500 configurations relied on dedicated axis modules paired with a central supervisory controller, communicating over a proprietary backplane bus. As the platform matured, Reliance introduced enhanced communication adapters supporting RS-232, RS-422, and later DeviceNet interfaces, allowing integration with emerging PLC and DCS architectures from Allen-Bradley and third-party vendors.

Compatibility across HR500 generations is constrained by backplane bus protocol revisions. First-generation modules (pre-1990) use a parallel backplane interface incompatible with later serial-bus variants. System maintainers must verify module revision codes before substituting components. Power supply modules are not universally interchangeable across chassis sizes. As Rockwell Automation consolidated its drive portfolio under the Kinetix brand in the 2000s, the HR500 was formally discontinued, transitioning to end-of-life support status. Replacement migration paths include the Allen-Bradley Kinetix 6000 and Kinetix 6500 multi-axis servo systems, though direct drop-in substitution requires mechanical and electrical re-engineering.

HR500 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Reliance Electric HR500 series, organized by functional category. Each module is a discrete field-replaceable unit (FRU) designed for installation into the HR500 chassis backplane.

AC Servo Drive Modules

• HR500 BLJC-08R 5RD1601: 8A continuous AC servo amplifier module, resolver feedback, single-axis
• HR500 BLJC-15R 5RD1602: 15A continuous AC servo amplifier module, resolver feedback, single-axis
• HR500 BLJC-30R 5RD1603: 30A peak AC servo drive module, high-inertia load configuration
• HR500 BLJC-08E 5RD1611: 8A encoder-feedback variant, quadrature incremental encoder input
• HR500 BLJC-15E 5RD1612: 15A encoder-feedback AC servo module, differential line driver input

CPU / Controller Modules

• HR500 CPU-1 5RD1501: Single-axis supervisory controller, RS-232 host interface
• HR500 CPU-2 5RD1502: Dual-axis supervisory controller, expanded program memory
• HR500 CPU-4 5RD1504: Four-axis coordinated motion controller, contouring capability
• HR500 CPU-8 5RD1508: Eight-axis controller module, multi-task execution, RS-422 interface

I/O Modules

• HR500 DI-16 5RD1401: 16-channel 24VDC discrete input module, optically isolated
• HR500 DO-16 5RD1402: 16-channel 24VDC discrete output module, sourcing type
• HR500 AI-08 5RD1411: 8-channel ±10V analog input module, 12-bit resolution
• HR500 AO-04 5RD1412: 4-channel ±10V analog output module, 12-bit DAC

Communication Adapters

• HR500 DNI-1 5RD1301: DeviceNet scanner adapter, Group 2 slave, 125/250/500 kbps
• HR500 RIO-1 5RD1302: Remote I/O adapter, Allen-Bradley 1771 RIO compatible, rack addressing
• HR500 SER-2 5RD1311: Dual-port RS-422/RS-232 serial communication module

Power Supply Modules

• HR500 PSU-5A 5RD1101: 5A backplane power supply, 115/230VAC input, regulated 24VDC output
• HR500 PSU-10A 5RD1102: 10A backplane power supply, dual-voltage output, overcurrent protected

Sourcing Hard-to-Find & Obsolete HR500 Parts

The HR500 series reached end-of-production status following Rockwell Automation's portfolio consolidation. OEM factory support, including new unit supply and Reliance-authorized repair, is no longer available through standard distribution channels. DriveKNMS maintains a dedicated inventory of HR500 modules sourced from decommissioned plant equipment, verified overstock, and controlled disassembly of functional systems. All units are catalogued by part number, revision code, and functional test status prior to listing.

For installations where full system migration to a current-generation platform is deferred — due to capital budget constraints, production continuity requirements, or regulatory approval timelines — DriveKNMS provides lifecycle extension support including: verified spare module supply, board-level repair assessment, and cross-reference identification for functionally equivalent substitute modules where applicable. Customers operating HR500 systems in critical process environments are advised to establish a strategic spare parts buffer covering high-failure-rate components: servo amplifier modules, CPU modules, and power supply units.

Quality Control for the HR500 Range

HR500 modules present specific test challenges due to their integrated backplane bus interface and resolver/encoder signal conditioning circuitry. DriveKNMS applies a structured functional verification protocol to all HR500 units prior to dispatch. Servo amplifier modules (BLJC series) are tested under load using a calibrated motor-load simulator, verifying current loop response, resolver signal processing accuracy, and fault detection logic across the full operating current range. CPU modules are verified for program execution integrity, axis command output accuracy, and host communication port functionality. I/O modules are tested channel-by-channel for input threshold accuracy and output drive capability. Power supply modules are load-tested at 100% rated current with output ripple and regulation measurements recorded. All test data is retained and available upon request for critical-application procurement.
