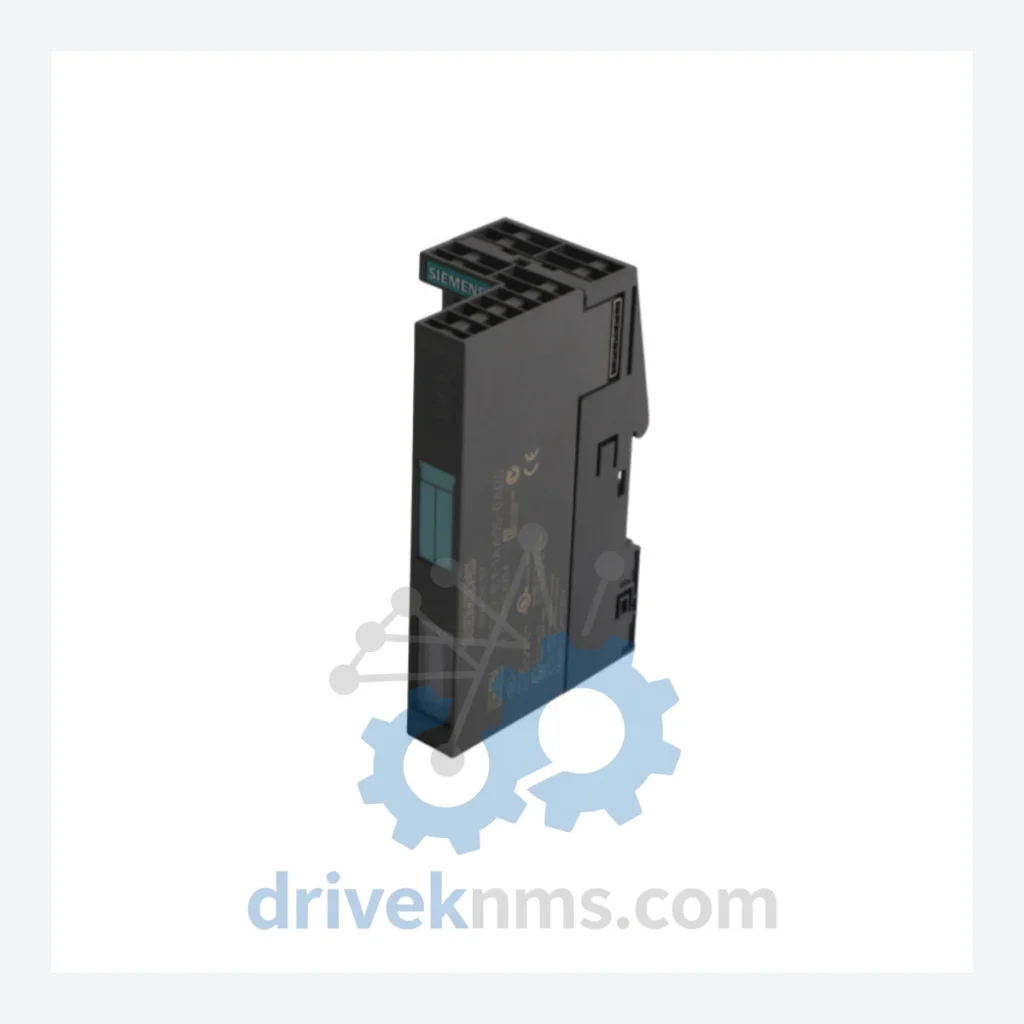

Siemens ET 200S Interface Modules: 6ES7151-1AA05-0AB0

Technical Dossier

Product Details And Specifications

Siemens ET 200S Series Technical Notes

The Siemens ET 200S distributed I/O system is one of the most widely deployed modular field-level automation platforms in global heavy industry. Installed across chemical processing plants, nuclear power facilities, petroleum refineries, and large-scale manufacturing lines, the ET 200S operates as a PROFIBUS DP or PROFINET slave station, enabling decentralized signal acquisition and actuation at the field level while maintaining deterministic communication with S7-300 and S7-400 PLCs. Its modular slot-based architecture — anchored by the IM 151 interface module family — allows engineers to configure station-specific I/O profiles without redesigning the backplane. The 6ES7151-1AA05-0AB0 is a PROFIBUS DP interface module within this family, rated for direct integration into ET 200S head stations with standard terminal module mounting.

The Evolution of ET 200S Architecture

The ET 200S platform was introduced by Siemens in the late 1990s as a successor to the ET 200B and ET 200C compact I/O blocks, addressing the need for finer-grained, slot-by-slot I/O configuration at the field level. The original IM 151-1 interface modules (e.g., 6ES7151-1AA00-0AB0) supported PROFIBUS DP at up to 12 Mbit/s and were designed for integration with S7-300 CPUs via DP master interfaces. Subsequent hardware revisions — AA01, AA02, AA03, AA04, and AA05 — introduced incremental improvements in diagnostic depth, isochronous mode support, and firmware compatibility with Step 7 V5.x and TIA Portal V13+.

With the introduction of PROFINET-capable variants (IM 151-3 PN family, e.g., 6ES7151-3AA23-0AB0), Siemens extended the ET 200S platform into Ethernet-based architectures, enabling media redundancy protocol (MRP) and shared device functionality. The ET 200S has since entered a mature/end-of-life phase for many PROFIBUS-only variants, with Siemens recommending migration to ET 200SP (SIMATIC ET 200SP, 6ES7155-6 series) for new installations. However, the installed base of ET 200S across legacy DCS and SCADA environments remains substantial, making long-term spare parts availability a critical operational requirement.

ET 200S Full Catalog & Functionalities (SKU List)

Interface Modules (IM 151 — PROFIBUS DP)

• 6ES7151-1AA05-0AB0: IM 151-1 Standard, PROFIBUS DP, up to 63 slaves, 12 Mbit/s, isochronous mode capable.
• 6ES7151-1AA04-0AB0: IM 151-1 Standard, PROFIBUS DP, predecessor to AA05, Step 7 V5.4 compatible.
• 6ES7151-1AA03-0AB0: IM 151-1 Standard, PROFIBUS DP, earlier firmware revision, limited diagnostic buffer.
• 6ES7151-1BA02-0AB0: IM 151-1 High Feature, PROFIBUS DP, extended diagnostics, isochronous operation, equidistance support.
• 6ES7151-3AA23-0AB0: IM 151-3 PN, PROFINET IO, MRP support, shared device, TIA Portal V14+.
• 6ES7151-3BA23-0AB0: IM 151-3 PN High Speed, PROFINET IO, IRT (isochronous real-time), 100 Mbit/s.

Digital Input Modules (DI)

• 6ES7131-4BB01-0AB0: 4DI, 24 VDC, standard, 3-wire sensor compatible, 3 ms input delay.
• 6ES7131-4BF00-0AB0: 8DI, 24 VDC, standard, 0.1 ms input filter, high-speed acquisition.
• 6ES7131-4RD02-0AB0: 4DI, 120/230 VAC, relay-isolated, for high-voltage field signals.

Digital Output Modules (DO)

• 6ES7132-4BB01-0AB0: 4DO, 24 VDC / 0.5 A, standard, short-circuit protected.
• 6ES7132-4BF00-0AB0: 8DO, 24 VDC / 0.5 A, standard, group diagnostics.
• 6ES7132-4HB01-0AB0: 2DO, 24 VDC / 2 A, high-current output for solenoid valve actuation.

Analog Input Modules (AI)

• 6ES7134-4FB01-0AB0: 2AI, 4–20 mA / 0–10 V, 13-bit resolution, HART-transparent.
• 6ES7134-4GB11-0AB0: 2AI, RTD/TC, thermocouple and resistance thermometer, 16-bit resolution.
• 6ES7134-4LB02-0AB0: 2AI, high-speed, 1 ms conversion time, for fast process variables.

Analog Output Modules (AO)

• 6ES7135-4FB01-0AB0: 2AO, 4–20 mA / 0–10 V, 13-bit resolution, short-circuit protected.

Power Modules (PM)

• 6ES7138-4CA01-0AA0: PM-E 24 VDC, power module for electronic modules, load group segmentation.
• 6ES7138-4CB11-0AB0: PM-E 24–48 VDC / 24–230 VAC, universal power module for relay modules.

Terminal Modules (TM)

• 6ES7193-4CA40-0AA0: TM-E15S24-A1, terminal module for 4-channel electronic modules, screw terminals.
• 6ES7193-4CB20-0AA0: TM-E15C24-A1, terminal module for 8-channel electronic modules, cage clamp terminals.

Sourcing Hard-to-Find & Obsolete ET 200S Parts

Multiple IM 151-1 PROFIBUS variants — including the 6ES7151-1AA03-0AB0 and earlier revisions — have been discontinued by Siemens with no direct factory replacement on the PROFIBUS platform. For facilities operating legacy ET 200S stations in environments where a full migration to ET 200SP is not operationally feasible (e.g., nuclear-qualified installations, long-cycle turnaround plants), DriveKNMS maintains a dedicated inventory of tested surplus and refurbished ET 200S modules.

Quality Control for the ET 200S Range

ET 200S interface modules present specific test challenges due to their integrated PROFIBUS DP ASIC, backplane bus arbitration logic, and firmware-dependent diagnostic behavior. DriveKNMS applies the following test protocol to all ET 200S modules prior to shipment:

• Visual inspection: connector pin integrity, housing condition, label legibility, firmware version label verification.
• Powered bench test: module inserted into a live ET 200S head station with active PROFIBUS DP master; station configuration loaded via Step 7 or TIA Portal.
• Diagnostic verification: module diagnostic buffer interrogated for hardware faults, PROFIBUS address assignment confirmed, LED status pattern validated (SF, BF, ON indicators).
• I/O channel functional test: for I/O modules, each channel is individually stimulated and read-back verified against rated specifications.
• Thermal soak: modules operated at rated voltage for minimum 2 hours prior to final pass/fail determination.
• Firmware compatibility check: firmware version cross-referenced against Siemens compatibility matrix for target Step 7 / TIA Portal version.
