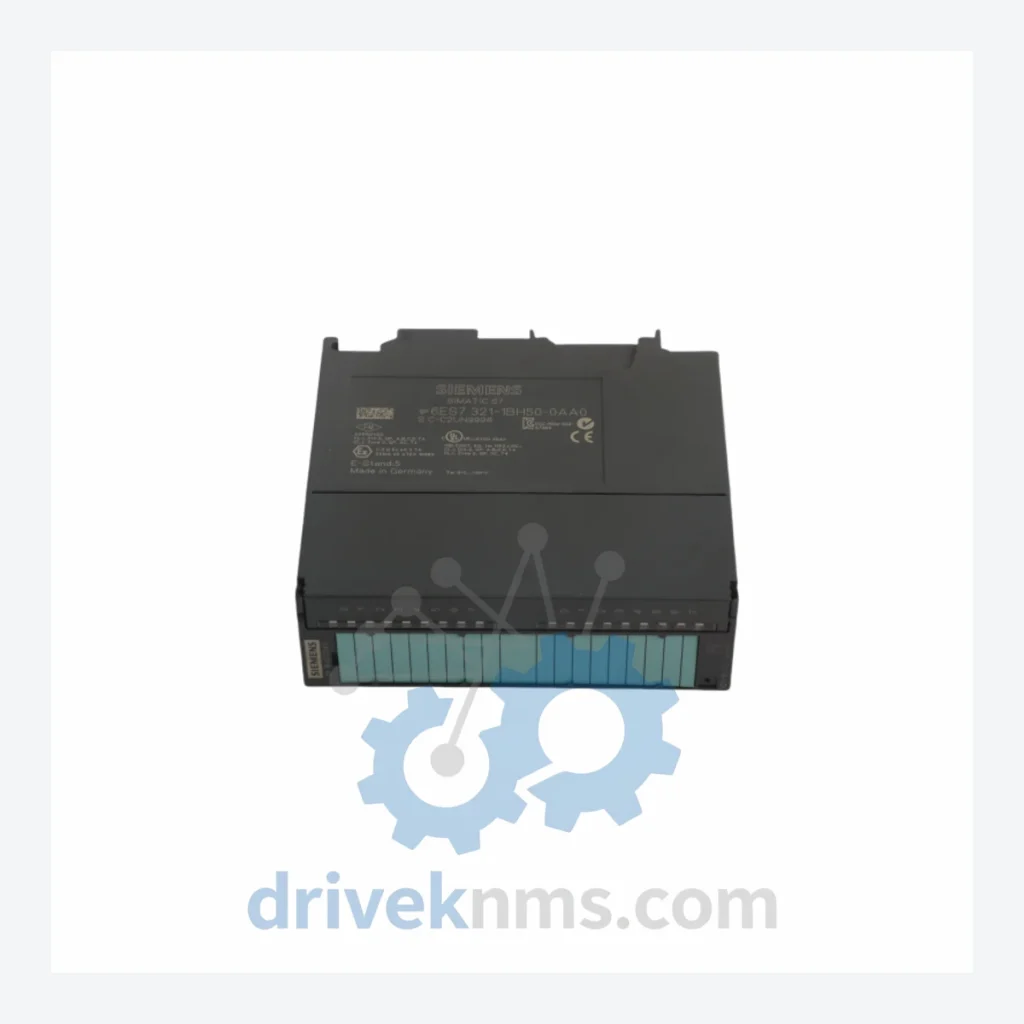

Siemens S7-300 SM 321 Modules: 6ES7321-1BH50-0AA0

Technical Dossier

Product Details And Specifications

Siemens S7-300 SM 321 Series Technical Notes

The Siemens SIMATIC S7-300 Signal Module 321 (SM 321) digital input series represents one of the most widely deployed discrete input module families in global heavy industry. Installed across petrochemical complexes, nuclear power auxiliary systems, crude oil refineries, pharmaceutical batch plants, and steel mill automation lines, the SM 321 range provides the field-level digital signal acquisition layer for S7-300 CPU-based control architectures. The 6ES7321-1BH50-0AA0 is a 16-channel 24 VDC digital input module within this series, designed for high-density I/O expansion in standard S7-300 rail-mounted configurations. Its 24 VDC input compatibility, group isolation, and direct backplane bus integration make it a standard bill-of-materials item in distributed control panel builds across IEC 61511-compliant process industries.

The Evolution of S7-300 SM 321 Architecture

The SIMATIC S7-300 platform was introduced by Siemens in 1993 as a modular mid-range PLC system, succeeding the S5-115U and S5-135U families. The SM 321 digital input module line evolved through several hardware revisions across three decades:

First Generation (1993–2000): Initial SM 321 modules used parallel backplane bus communication with 5 VDC logic levels. Early variants such as the 6ES7321-1BH00-0AA0 and 6ES7321-1BL00-0AA0 established the 16-channel and 32-channel form factors that became the platform standard. Isolation was achieved via optocouplers rated at 500 VAC group isolation.

Second Generation (2000–2012): Revised hardware revisions (suffix -0AA0 to later production states) introduced improved EMC filtering, extended operating temperature ranges (0°C to +60°C), and enhanced diagnostic capabilities accessible via STEP 7 hardware configuration. The 6ES7321-1BH02-0AA0 and 6ES7321-1FF01-0AA0 variants emerged during this period, adding 120/230 VAC input capability for direct field device interfacing without interposing relays.

Third Generation / Current Production (2012–present): The -1BH50-0AA0 suffix designation (as in the subject module) reflects current production state revisions with updated ASIC-level input filtering and compatibility with the S7-300 CPU firmware versions supporting PROFIBUS DP and MPI multi-master configurations. Siemens has positioned the S7-300 platform in a lifecycle maintenance phase since 2020, with the SIMATIC S7-1500 and ET 200SP serving as the designated migration targets. Spare parts and replacement modules for the S7-300 SM 321 family remain in high demand for installed base maintenance through at least 2033 per Siemens' published product lifecycle roadmap.

S7-300 SM 321 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked members of the Siemens SIMATIC S7-300 SM 321 digital input module family. Each entry includes a concise functional descriptor:

6ES7321-1BH50-0AA0: SM 321; 16 DI x 24 VDC, current production state, standard backplane bus.
6ES7321-1BH02-0AA0: SM 321; 16 DI x 24 VDC, prior hardware revision, direct replacement baseline.
6ES7321-1BH01-0AA0: SM 321; 16 DI x 24 VDC, early production revision, legacy installed base.
6ES7321-1BH00-0AA0: SM 321; 16 DI x 24 VDC, original release hardware, obsolete production.
6ES7321-1BL00-0AA0: SM 321; 32 DI x 24 VDC, high-density input module, single-width housing.
6ES7321-1CH00-0AA0: SM 321; 16 DI x 24 VDC, isolated channels, individual channel diagnostics.
6ES7321-1EH01-0AA0: SM 321; 16 DI x 24/48 VDC or 24/48 VAC, universal voltage input range.
6ES7321-1FF01-0AA0: SM 321; 8 DI x 120/230 VAC, optocoupler isolated, for AC field devices.
6ES7321-1FF10-0AA0: SM 321; 8 DI x 120/230 VAC, updated hardware revision, AC input module.
6ES7321-7BH01-0AB0: SM 321; 16 DI x 24 VDC, NAMUR sensor compatible, intrinsically safe interface.
6ES7321-7RD00-0AB0: SM 321; 8 DI, redundant input module for fault-tolerant S7-300H configurations.
6ES7321-1FH00-0AA0: SM 321; 16 DI x 24/48 VAC/VDC, mixed voltage field wiring compatibility.
6ES7321-1BH10-0AA0: SM 321; 16 DI x 24 VDC, intermediate production state, common MRO replacement.
6ES7321-1BH20-0AA0: SM 321; 16 DI x 24 VDC, hardware revision with updated input filter timing.
6ES7321-1BH30-0AA0: SM 321; 16 DI x 24 VDC, production state with revised terminal block design.
6ES7321-1BH40-0AA0: SM 321; 16 DI x 24 VDC, pre-current-production revision, widely stocked MRO item.

Sourcing Hard-to-Find & Obsolete S7-300 SM 321 Parts

The SIMATIC S7-300 platform entered Siemens' Classic lifecycle phase in 2020, meaning no new development is planned and production of select variants has been discontinued. For end users operating S7-300-based systems in continuous process environments — where a control system replacement project is not feasible within the current maintenance cycle — sourcing verified replacement SM 321 modules from specialist distributors is the primary lifecycle extension strategy.

Quality Control for the S7-300 SM 321 Range

The SM 321 module family presents specific test requirements due to its backplane bus interface, optocoupler input isolation stages, and channel-level input filter circuits. DriveKNMS applies the following verification protocol to all SM 321 units prior to dispatch:

Backplane Bus Communication Test: Each module is seated in a live S7-300 rack with an active CPU (315-2DP or 317-2DP) and verified for correct hardware configuration recognition in STEP 7 v5.6 and TIA Portal V16 hardware catalog. Modules that fail to enumerate correctly are rejected.

Channel-Level Input Verification: All 16 (or 32, for BL-suffix) input channels are individually stimulated with a calibrated 24 VDC test signal and verified for correct state reporting in the CPU process image. Input filter delay times are measured against the module's published specification (typically 0.1 ms to 20 ms selectable).

Visual and Mechanical Inspection: Terminal block connector integrity, front connector locking mechanism, module coding key, and housing condition are inspected. Modules with cracked housings, bent backplane bus connectors, or missing coding keys are classified as parts-only and not sold as functional replacements.

Burn-In Cycle: Selected modules undergo a 48-hour powered burn-in cycle at elevated ambient temperature (50°C) to screen for early-life component failures prior to shipment.
