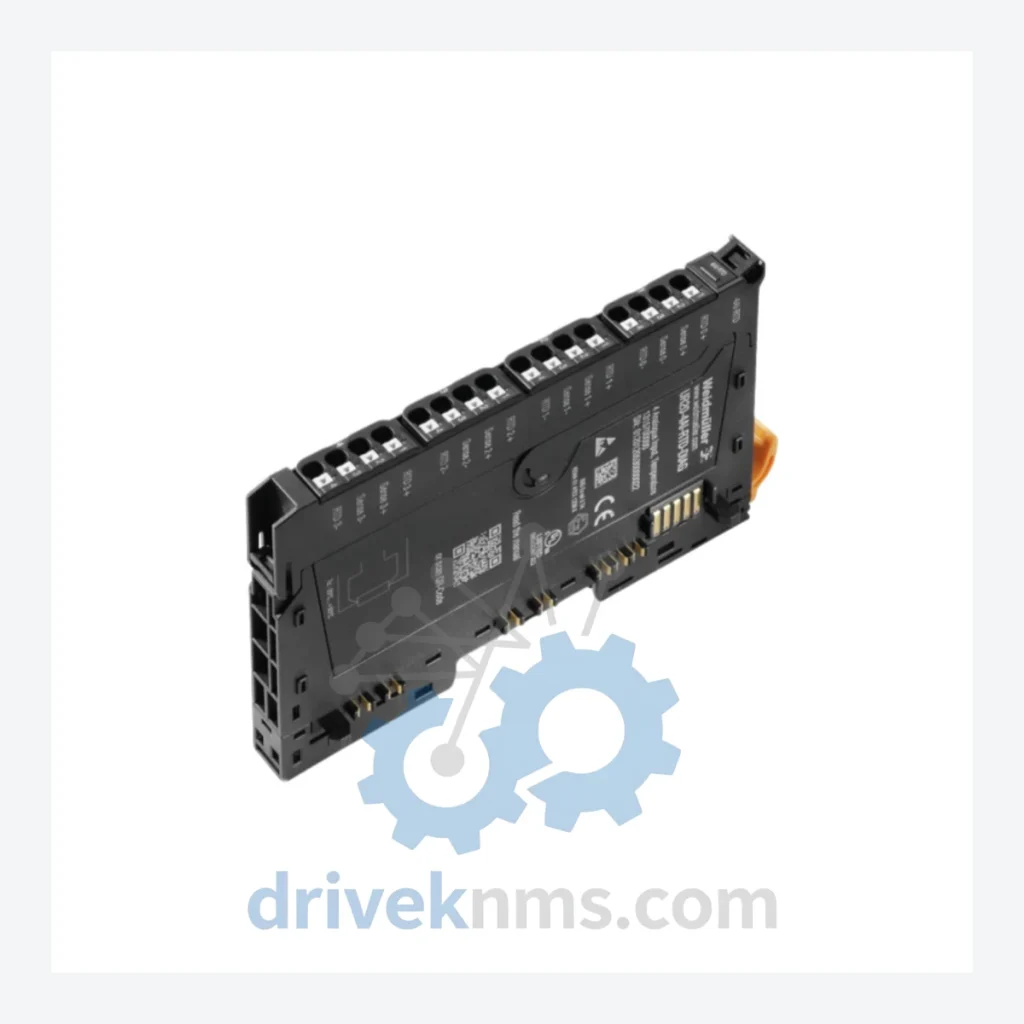

Weidmuller UR20 Series: Comprehensive Module Range and Technical Overview

The Weidmuller UR20 (u-remote) series represents one of the most widely deployed remote I/O platforms in global heavy industry. Installed across chemical processing plants, oil refineries, power generation facilities, and water treatment infrastructure, the UR20 system is engineered for high-density signal acquisition and distributed control in harsh industrial environments. Its modular backplane architecture, combined with support for all major fieldbus and Industrial Ethernet protocols, has made it a standard reference design for DCS and PLC integrators worldwide.

The UR20 platform supports coupler-based communication over PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP, EtherCAT, and CANopen — enabling seamless integration into both legacy and modern control architectures. With IP20-rated modules designed for cabinet installation and a hot-swap-capable backplane, the UR20 series minimizes planned downtime during module replacement cycles.

The Evolution of UR20 Architecture

Weidmuller introduced the u-remote UR20 platform in the early 2010s as a successor to its earlier RS20/RS30 terminal-based I/O systems. The architectural shift moved from passive terminal blocks to an active, bus-capable modular I/O rail — a response to the industry's demand for higher channel density and remote diagnostics capability.

Generation 1 (2011–2015): Initial UR20 couplers supported PROFIBUS DP and Modbus TCP. Module lineup focused on standard DI/DO and AI/AO functions. Backplane communication ran at fixed cycle times with limited diagnostic depth.

Generation 2 (2016–2020): Introduction of PROFINET and EtherNet/IP couplers. Expanded I/O library including RTD, thermocouple, pulse counter, and SSI encoder modules. Enhanced web-based diagnostics and FDT/DTM support added. This generation introduced the 4AI-RTD-DIAG class of modules (e.g., UR20-4AI-RTD-DIAG, order no. 1315700000), which added per-channel wire-break and short-circuit diagnostics — a critical feature for process industry compliance.

Generation 3 (2021–present): Introduction of TSN-capable couplers and IIoT-ready modules. OPC UA integration at the coupler level. Backward compatibility maintained with Gen 1/2 modules on the same backplane rail, protecting installed base investments.

Plants that standardized on Gen 1 or Gen 2 UR20 hardware face a common lifecycle challenge: coupler firmware updates may not support older module variants, and some early-generation modules have reached end-of-production (EOP) status. DriveKNMS maintains verified stock of both current-production and EOP UR20 modules to support long-term maintenance contracts.

UR20 Full Catalog & Functionalities (SKU List)

The following represents a structured reference catalog of the UR20 module range, organized by functional category. All models listed are genuine Weidmuller components.

Analog Input Modules (AI)

• UR20-4AI-UI-16 (1315430000): 4-channel universal analog input, ±10V / 0–20mA / 4–20mA, 16-bit resolution
• UR20-4AI-UI-16-DIAG (1315440000): 4-channel analog input with per-channel diagnostics, wire-break detection
• UR20-4AI-RTD-DIAG (1315700000): 4-channel RTD/resistance input, PT100/PT1000/Ni100, with full channel diagnostics
• UR20-4AI-TC-DIAG (1315710000): 4-channel thermocouple input, types J/K/T/E/B/R/S/N, with cold junction compensation and diagnostics
• UR20-2AI-SG-24-DIAG (1315720000): 2-channel strain gauge / load cell input, 24-bit resolution, bridge excitation supply

Analog Output Modules (AO)

• UR20-4AO-UI-16 (1315460000): 4-channel analog output, ±10V / 0–20mA / 4–20mA, 16-bit resolution
• UR20-4AO-UI-16-DIAG (1315470000): 4-channel analog output with load monitoring and short-circuit diagnostics

Digital Input Modules (DI)

• UR20-16DI-P (1315170000): 16-channel digital input, 24V DC, PNP, 2-wire connection
• UR20-16DI-P-PLC-INT (1315180000): 16-channel DI with integrated PLC interface for local logic execution
• UR20-8DI-P-3W (1315140000): 8-channel digital input, 24V DC, PNP, 3-wire sensor connection
• UR20-4DI-P-3W-DIAG (1315120000): 4-channel DI with per-channel short-circuit and wire-break diagnostics

Digital Output Modules (DO)

• UR20-16DO-P (1315230000): 16-channel digital output, 24V DC, PNP, 0.5A per channel
• UR20-8DO-P-2A (1315210000): 8-channel digital output, 24V DC, PNP, 2A per channel, high-current actuator drive
• UR20-4DO-P-2A-DIAG (1315200000): 4-channel DO with load current monitoring and overload diagnostics

Communication Couplers

• UR20-FBC-PN-IRT (1334530000): PROFINET coupler, IRT capable, integrated 2-port switch, web diagnostics
• UR20-FBC-EIP-2PORT (1334610000): EtherNet/IP coupler, 2-port, DLR ring topology support
• UR20-FBC-PB-DP (1334500000): PROFIBUS DP coupler, up to 12 Mbit/s, GSD file support

Power Feed Modules

• UR20-PF-O-1DI-SIL (1315060000): Power feed module with SIL-rated digital input monitoring, for safety-related segments
• UR20-PF-I (1315010000): Standard power feed module, 24V DC bus supply for I/O segment

Sourcing Hard-to-Find & Obsolete UR20 Parts

Several first-generation UR20 modules — particularly early PROFIBUS couplers and 8-channel analog variants — have reached end-of-production status at Weidmuller. Plants operating these systems face a binary choice: full system migration (high capital cost, extended downtime) or lifecycle extension through verified surplus sourcing.

DriveKNMS specializes in the second path. Our procurement network spans authorized distributors, OEM surplus channels, and decommissioned plant inventories across Europe, North America, and Asia-Pacific. Every UR20 module sourced through DriveKNMS undergoes the following before shipment:

• Visual inspection against Weidmuller factory cosmetic standards
• Label and date-code verification to confirm genuine origin
• Functional power-on test with backplane communication verification
• Anti-static packaging with humidity indicator cards

For EOP modules, we provide a written statement of origin and, where applicable, a test report — documentation that satisfies most plant maintenance audit requirements.

Quality Control for the UR20 Range

The UR20 backplane uses a proprietary high-speed serial bus for inter-module communication. Standard bench testing with a multimeter is insufficient to verify module health — a module may pass continuity checks while having a degraded bus transceiver that causes intermittent communication faults under load.

DriveKNMS uses a dedicated UR20 test rig comprising a live PROFINET coupler, a calibrated 24V DC power supply, and a PLC test program that exercises all I/O channels at rated load. For analog modules such as the UR20-4AI-RTD-DIAG (1315700000), the test protocol includes:

• RTD simulation across the full PT100 range (−200°C to +850°C) using a precision decade resistance box
• Wire-break fault injection on each channel to verify diagnostic reporting
• Comparison of measured values against factory calibration tolerance (±0.1% of full scale)
• Bus communication stress test at 1ms cycle time for 30 minutes

Modules that fail any step are quarantined and not offered for sale. Test records are retained for 24 months and available to customers on request.

For RFQ, availability inquiry, or technical pre-sales support on any UR20 module:

• 📧 Email: [email protected]
• 💬 WhatsApp: +86 18359293191
• 🌐 Web: driveknms.com
