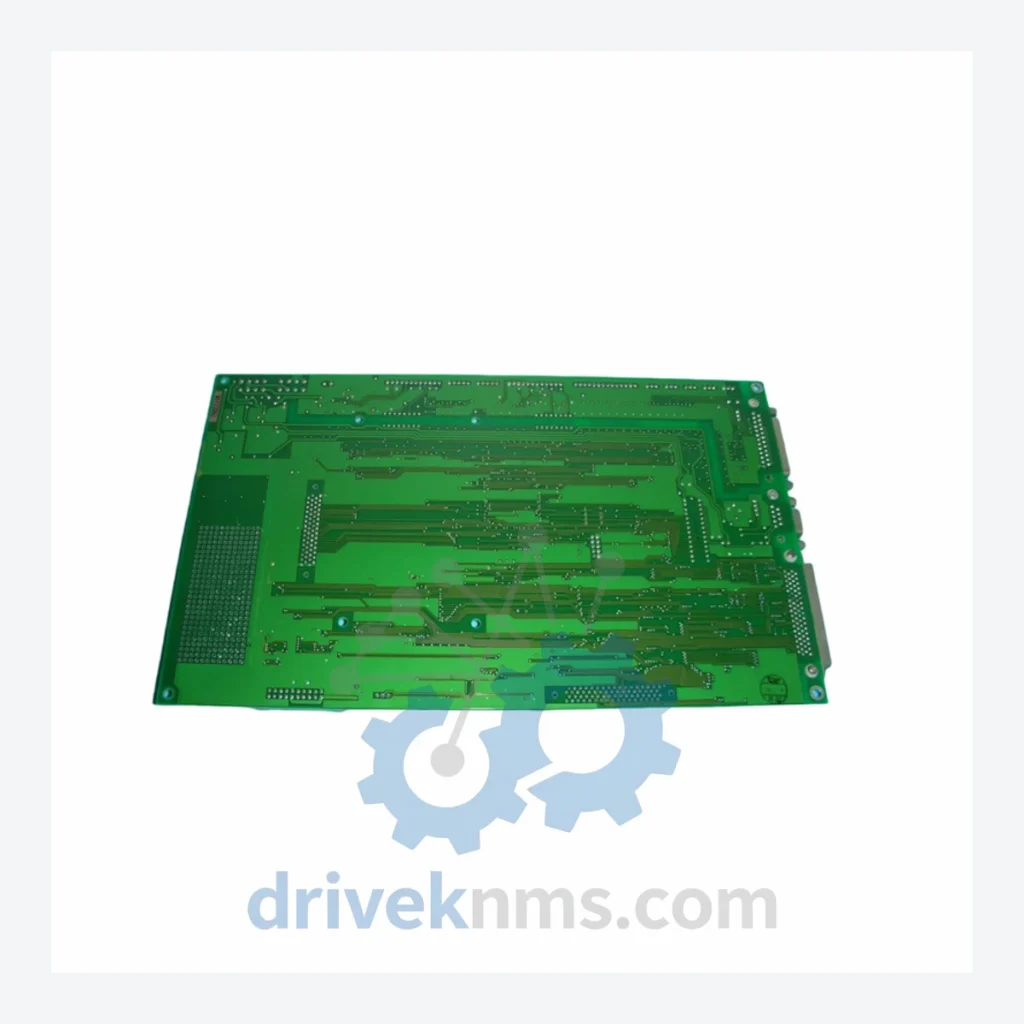

YASKAWA F350604-1 Drive Control Board

Technical Dossier

Product Details And Specifications

YASKAWA F350604-1 Series: Comprehensive Module Range and Technical Overview

The YASKAWA F350604-1 Drive Control Board is a core control component deployed across YASKAWA's AC drive and servo drive platforms. It is installed in heavy industrial environments including petrochemical refineries, nuclear auxiliary systems, steel rolling mills, and large-scale water treatment facilities. The F350604-1 functions as the primary signal processing and gate-drive interface board within the drive chassis, managing PWM output logic, fault detection circuits, and communication between the control card and power stack. Its global installed base spans decades of continuous operation in process-critical applications where unplanned downtime carries significant financial and safety consequences.

The Evolution of F350604-1 Architecture

The F350604-1 board belongs to YASKAWA's mid-generation drive control architecture, bridging the analog-dominant designs of the G5 and VS-616 era with the fully digital platforms introduced in the E7, F7, and G7 series. Early YASKAWA drive control boards used discrete analog signal conditioning with limited onboard diagnostics. The F350604-1 generation introduced integrated ASIC-based gate signal management, onboard fault memory registers, and standardized ribbon-cable backplane interfaces that improved field serviceability.

Compatibility considerations are significant for maintenance engineers: the F350604-1 is not cross-compatible with later CIMR-series control boards without chassis-level modifications. Firmware dependencies are tied to the specific drive model and software version. Replacement units must match the original part number exactly, or be validated against the drive's parameter set before commissioning. As YASKAWA has transitioned its product line toward the GA700, GA500, and CR700 platforms, the F350604-1 has entered the mature/end-of-life phase, making third-party inventory sourcing the primary procurement channel for maintenance teams.

F350604-1 Full Catalog & Functionalities (SKU List)

The following SKUs represent the YASKAWA drive control board and closely associated interface, power, and I/O modules commonly maintained alongside the F350604-1 in the same drive chassis. All models listed are verified components within YASKAWA's industrial drive ecosystem:

F350604-1: Primary PWM gate-drive control board for YASKAWA AC drive chassis
ETP615823: Gate driver interface card, compatible with F350604-1 chassis generation
ETP615822: Auxiliary power supply board for drive control section
ETP615820: Fault detection and protection logic board
ETP615819: Current feedback signal conditioning board
ETP615818: Voltage sensing and DC bus monitoring card
ETP615817: Fan control and thermal management interface board
ETP615816: Encoder feedback interface card, incremental type
ETP615815: Serial communication interface board (RS-485/RS-422)
ETP615814: Analog I/O expansion card, 4-channel differential input
ETP615813: Digital I/O option card, 16 DI / 8 DO configuration
ETP615812: PROFIBUS-DP communication option card
ETP615811: DeviceNet communication option card
ETP615810: Modbus TCP/IP Ethernet communication card
ETP615809: Keypad interface and parameter copy unit
ETP615808: Braking resistor interface and chopper control card
ETP615807: Regenerative converter control interface board
ETP615806: Synchronization and multi-drive coordination card
ETP615805: Safety relay output option card (STO function)
ETP615804: Resolver feedback interface card for servo applications

Sourcing Hard-to-Find & Obsolete F350604-1 Parts

DriveKNMS maintains a dedicated inventory program for YASKAWA drive control boards in the mature and end-of-life lifecycle phase. The F350604-1 is no longer available through standard YASKAWA distribution channels in most regions, which creates procurement risk for facilities operating legacy drive systems without a planned upgrade path.

DriveKNMS sources F350604-1 units through verified industrial surplus channels, decommissioned equipment recovery, and direct manufacturer overstock. Each unit is catalogued with its revision level, firmware compatibility notes, and physical condition grade prior to listing. For facilities requiring long-term maintenance agreements or buffer stock arrangements for the F350604-1 and associated boards, DriveKNMS provides multi-unit procurement packages with documented traceability. Emergency same-day quotation is available for critical plant situations.

Quality Control for the F350604-1 Range

Drive control boards in the F350604-1 class require functional validation beyond visual inspection due to the complexity of their gate-drive signal paths and onboard protection logic. DriveKNMS applies the following test protocol to all F350604-1 units prior to dispatch:

Static inspection covers PCB trace integrity, capacitor ESR measurement, IGBT gate resistor values, and connector pin condition. Dynamic testing is performed using a drive chassis test rig that replicates the original operating environment: the board is powered under controlled conditions and PWM output signals are verified against factory reference waveforms using an oscilloscope. Fault injection testing confirms that protection circuits (overcurrent, overvoltage, thermal) respond within specification. Communication interface continuity is verified for all populated option slots. Units that do not pass all test stages are quarantined and not offered for sale.
