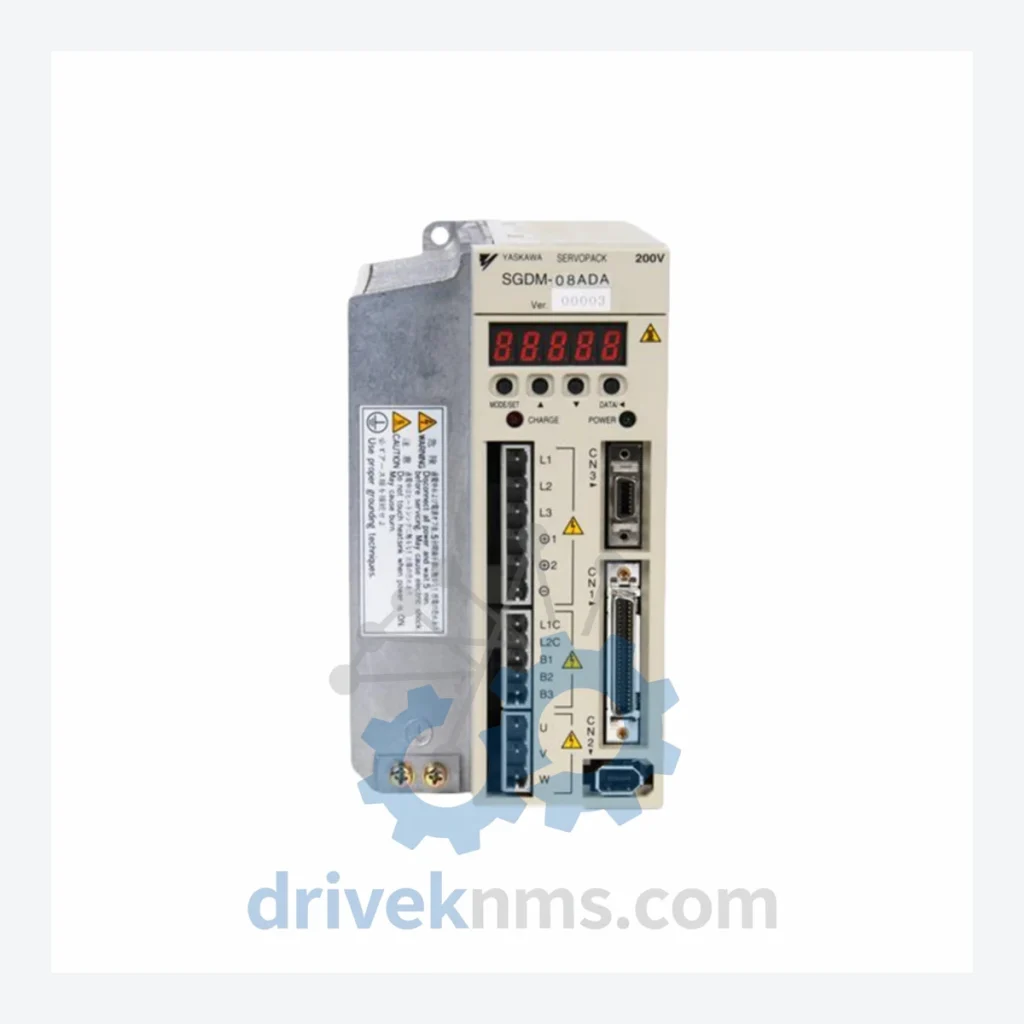

Yaskawa SGDM-08ADA Servo Drive

Technical Dossier

Product Details And Specifications

Yaskawa SGDM Series: Comprehensive Module Range and Technical Overview

The Yaskawa SGDM series is a SERVOPACK analog/pulse-command servo drive platform that has achieved widespread deployment across global heavy industry, including petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, and large-scale automated assembly lines. Operating on single-phase or three-phase AC input (100V–230V class), the SGDM series interfaces directly with Yaskawa SGMAH, SGMPH, SGMGH, and SGMSH series servo motors, forming a closed-loop motion control system with encoder feedback resolution up to 17-bit. Its compact DIN-rail and panel-mount form factor, combined with analog ±10V and pulse-train command inputs, made it the standard drive choice for OEM machine builders throughout the late 1990s and 2000s. Installed base counts in the tens of thousands of units remain active in facilities where full system replacement is cost-prohibitive, making reliable spare parts sourcing a critical operational requirement.

The Evolution of SGDM Architecture

The SGDM series was introduced by Yaskawa Electric Corporation as the successor to the SGDA platform, incorporating improved current-loop bandwidth and a more integrated power stage design. Early SGDM units (circa 1998–2002) used discrete IGBT modules and relied on external regenerative resistors for braking energy dissipation. Mid-generation revisions introduced internal dynamic braking circuits on smaller capacity units (≤5.0A continuous output) and expanded the parameter set to support more complex gain-tuning profiles via the digital operator (JUSP-OP02A-2).

The SGDM architecture uses a single-axis, standalone topology — each drive controls one motor axis independently, with no shared DC bus between units. This contrasts with later Yaskawa platforms such as the SGDV (Sigma-5) and SGDH (Sigma-II), which introduced MECHATROLINK-II serial communication and on-board auto-tuning. Facilities migrating from SGDM to SGDV or SGDH must account for command interface changes: SGDM accepts analog voltage or pulse-train inputs, while SGDV/SGDH require MECHATROLINK-II or analog modes with different parameter mapping. Direct drop-in replacement is not possible without rewiring and parameter reconfiguration. For installations where SGDM units are embedded in legacy CNC or PLC architectures with hardwired analog command signals, maintaining SGDM spares inventory is the lowest-risk continuity strategy.

SGDM Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed models within the Yaskawa SGDM series. Units are classified by continuous output current rating and input voltage class. All models accept analog ±10V speed/torque command or pulse-train position command.

SGDM-01ADA: 0.1A cont. output, 100V class, single-phase input, ultra-compact panel mount
SGDM-02ADA: 0.2A cont. output, 100V class, single-phase, for sub-100W servo motors
SGDM-04ADA: 0.4A cont. output, 100V class, single-phase, standard small-axis drive
SGDM-08ADA: 0.8A cont. output, 100V class, single-phase, mid-range torque density axis
SGDM-10ADA: 1.0A cont. output, 100V class, single-phase, high-cycle indexing applications
SGDM-02ADB: 0.2A cont. output, 200V class, three-phase, standard industrial voltage
SGDM-04ADB: 0.4A cont. output, 200V class, three-phase, general-purpose servo axis
SGDM-08ADB: 0.8A cont. output, 200V class, three-phase, common OEM machine axis
SGDM-10ADB: 1.0A cont. output, 200V class, three-phase, high-speed positioning axis
SGDM-15ADB: 1.5A cont. output, 200V class, three-phase, medium-load conveyor axis
SGDM-20ADB: 2.0A cont. output, 200V class, three-phase, standard mid-power axis
SGDM-30ADB: 3.0A cont. output, 200V class, three-phase, heavy-duty servo axis
SGDM-50ADB: 5.0A cont. output, 200V class, three-phase, high-torque industrial axis
SGDM-60ADB: 6.0A cont. output, 200V class, three-phase, large servo motor pairing
SGDM-A5ADB: 0.5A cont. output, 200V class, three-phase, compact footprint variant
SGDM-75ADB: 7.5A cont. output, 200V class, three-phase, high-power press/winding axis

Sourcing Hard-to-Find & Obsolete SGDM Parts

Yaskawa has formally transitioned the SGDM series to end-of-life (EOL) status. Factory new units are no longer available through standard distribution channels, and Yaskawa's own repair service for SGDM hardware has a limited and declining parts availability window. For facilities operating SGDM-based systems — particularly in chemical processing, paper manufacturing, and semiconductor fab support equipment — the operational risk of an unplanned SGDM failure without a spare on hand is significant.

Quality Control for the SGDM Range

SGDM series drives present specific test challenges due to their analog command interface and discrete component power stage. DriveKNMS applies the following verification protocol to all SGDM units processed through its facility:

Power Stage Verification: DC bus capacitance measurement and IGBT gate drive integrity check prior to energization. Units with capacitance below 80% of rated value are flagged for capacitor replacement before sale.
Analog Command Interface Test: ±10V speed command linearity verified across full input range using calibrated signal source. Deadband and offset parameters checked against factory defaults.
Encoder Feedback Loop Test: Drive operated with matched SGMAH or SGMPH motor under no-load and resistive-load conditions. Position loop stability and velocity ripple measured.
Parameter Integrity Check: All user parameters reset to factory default (Fn005 initialization) and re-verified. Any unit with corrupted EEPROM is rejected.
Thermal Cycling: Units operated through minimum two thermal cycles (ambient to operating temperature) to identify latent solder joint or connector failures.
Regenerative Resistor Circuit: Dynamic braking resistor circuit continuity and switching function verified on applicable models.
