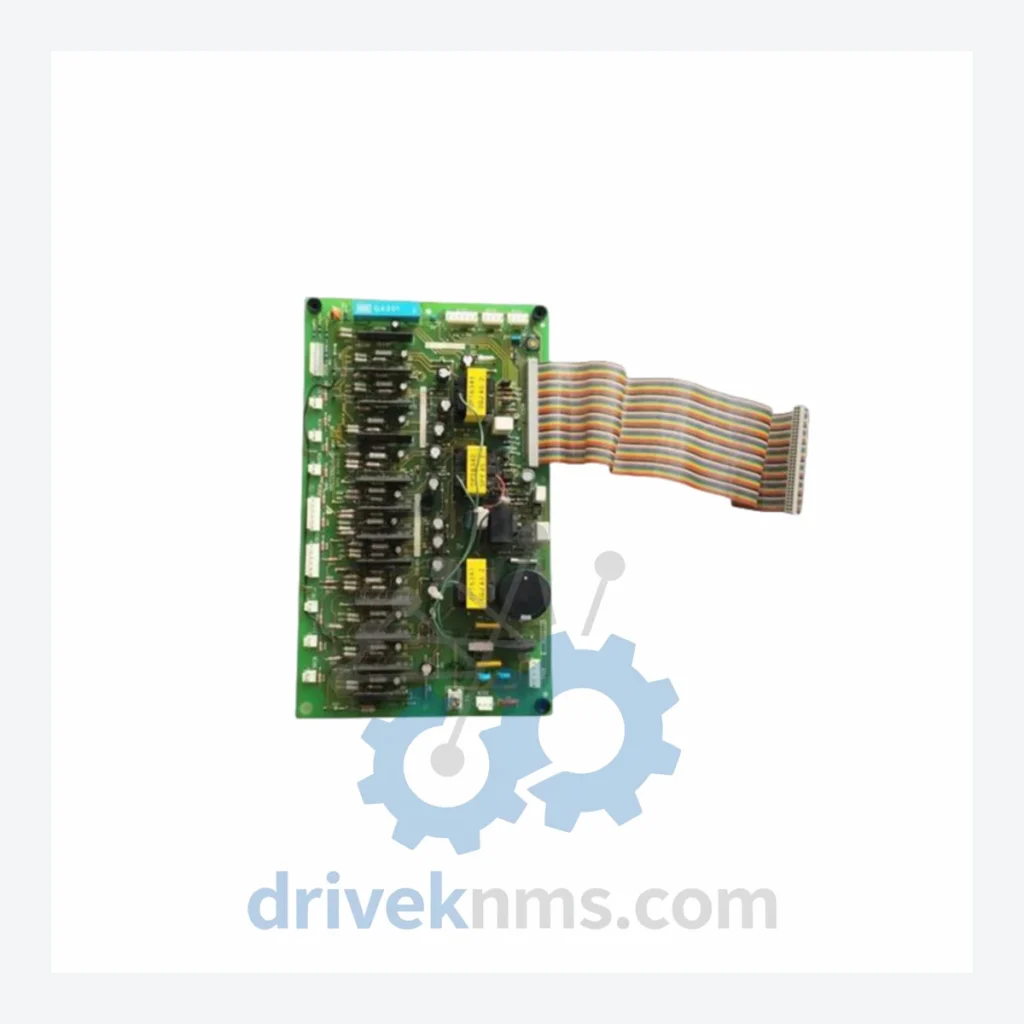

YASKAWA YPCT21092-1-4 Control Board

Technical Dossier

Product Details And Specifications

YASKAWA YPCT21092-1 Series: Comprehensive Module Range and Technical Overview

The YASKAWA YPCT21092-1 series of control boards occupies a critical position in global heavy industrial automation infrastructure. These boards are deployed extensively in chemical processing plants, petroleum refineries, nuclear power auxiliary systems, steel mills, and large-scale water treatment facilities. As a core component within YASKAWA's drive and motion control ecosystem, the YPCT21092-1 series provides the primary control logic interface between the host drive unit and field-level actuators. Installations span North America, Europe, the Middle East, and Asia-Pacific, with a significant installed base in facilities operating continuous 24/7 production cycles where unplanned downtime carries severe economic consequences. The board's design reflects YASKAWA's engineering standard for high-noise-immunity environments, with isolated signal paths and robust bus communication architecture suited to high-voltage drive cabinets.

The Evolution of YPCT21092-1 Architecture

The YPCT21092-1 control board lineage traces to YASKAWA's G-series and F-series drive platforms developed in the late 1990s and early 2000s. Early revisions (suffix -1-1 and -1-2) used through-hole component construction with discrete logic ICs for PWM signal generation and fault detection. These boards interfaced with YASKAWA's proprietary MEMOBUS/Modbus RTU protocol over RS-485, establishing a communication standard that persisted across subsequent hardware generations.

The -1-3 revision introduced surface-mount technology (SMT) for the majority of passive components, reducing board footprint and improving thermal performance. Gate driver isolation was upgraded to optocoupler-based designs rated for higher dV/dt transients, addressing field failures observed in high-switching-frequency applications above 10 kHz. The -1-4 revision (the current subject, YPCT21092-1-4) represents the mature production variant: it incorporates an updated DSP core, revised firmware ROM, and enhanced EMC filtering on the analog input conditioning stage. Compatibility with the -1-3 revision is maintained at the connector and mounting level, but firmware is not interchangeable between revisions.

As the YPCT21092-1 series has entered the mature/end-of-production phase, YASKAWA's current equivalent functionality is addressed by control boards within the GA700, GA800, and A1000 drive platforms. However, direct drop-in replacement is not possible without drive chassis modification, making original YPCT21092-1-4 boards the only viable option for in-situ repair of legacy installations.

YPCT21092-1 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented range of YPCT21092-1 series control boards and closely associated interface modules within the same drive platform. Each entry reflects a distinct hardware revision or functional variant confirmed within YASKAWA's service documentation and field parts databases.

YPCT21092-1-1: First-generation control board; through-hole construction; RS-485 MEMOBUS interface; compatible with early F7 drive chassis.

YPCT21092-1-2: Revised gate driver section; improved fault latch circuit; updated analog input scaling resistor network.

YPCT21092-1-3: SMT transition revision; optocoupler-isolated gate drive outputs; enhanced thermal pad layout for improved heat dissipation.

YPCT21092-1-4: Current production variant; updated DSP core; revised firmware ROM; enhanced EMC filtering on analog input stage; primary subject of this listing.

YPCT21092-1-5: Late-production variant with revised conformal coating specification for high-humidity environments; functionally equivalent to -1-4.

YPCT21092-2-1: Alternate series designation for higher-frame-size drive applications; expanded current sensing range; same bus interface protocol.

YPCT21092-2-2: Revised power supply section; reduced standby current draw; compatible with YPCT21092-2-1 mounting footprint.

YPCT21092-3-1: Three-phase input variant; dedicated for regenerative drive configurations; includes additional braking chopper control logic.

YPCT21092-3-2: Updated braking chopper threshold firmware; revised overcurrent trip point calibration.

YPCT21092-4-1: Communication-enhanced variant; onboard RS-232 diagnostic port in addition to standard RS-485; used in remote monitoring installations.

YPCT21092-4-2: Revised communication buffer IC; improved noise immunity on RS-232 diagnostic channel.

YPCT21092-5-1: High-temperature-rated variant; extended operating range to 60°C ambient; ceramic capacitor substitution on critical nodes.

YPCT21092-5-2: Updated ceramic capacitor specification; revised thermal derating curve documentation.

YPCT21092-6-1: Reduced-feature variant for OEM drive integrators; analog I/O count reduced; lower unit cost for volume OEM supply.

YPCT21092-6-2: OEM variant with custom firmware lock; parameter access restricted to OEM-defined range; not field-reprogrammable.

YPCT21092-7-1: Safety-rated variant; STO (Safe Torque Off) logic integrated on-board; certified to IEC 61508 SIL 2 for safety-critical drive applications.

YPCT21092-7-2: Revised STO circuit with dual-channel monitoring; updated safety relay output driver; SIL 2 certification maintained.

Sourcing Hard-to-Find & Obsolete YPCT21092-1 Parts

The YPCT21092-1 series has transitioned out of standard YASKAWA production channels. OEM new-stock availability through authorized distributors is effectively exhausted for most revision suffixes, with the -1-4 variant representing the last revision to see consistent distributor stocking. DriveKNMS maintains a dedicated inventory program for this series, sourcing boards through verified industrial surplus channels, decommissioned equipment recovery, and long-term storage stock from original production runs.

Quality Control for the YPCT21092-1 Range

Control boards in the YPCT21092-1 series present specific test challenges due to their integrated gate driver outputs, isolated analog input conditioning, and MEMOBUS communication interface. DriveKNMS applies a structured test protocol developed specifically for this board family.

Each board undergoes visual inspection under magnification for solder joint integrity, capacitor condition (ESR measurement on all electrolytic capacitors), and conformal coating continuity. The DSP and firmware ROM are verified against known-good checksums using a dedicated YASKAWA-compatible programmer interface. Gate driver output channels are tested under resistive load at rated switching frequency to confirm output voltage levels, rise/fall times, and dead-time insertion accuracy. The RS-485 MEMOBUS interface is exercised through a full register read/write cycle using a calibrated test master to confirm communication integrity at 9600, 19200, and 38400 baud. Analog input channels are calibrated against a traceable voltage reference to verify scaling accuracy within ±0.5% of full scale. Boards that pass all test stages are issued a DriveKNMS test certificate with individual board serial number, test date, and technician ID.
