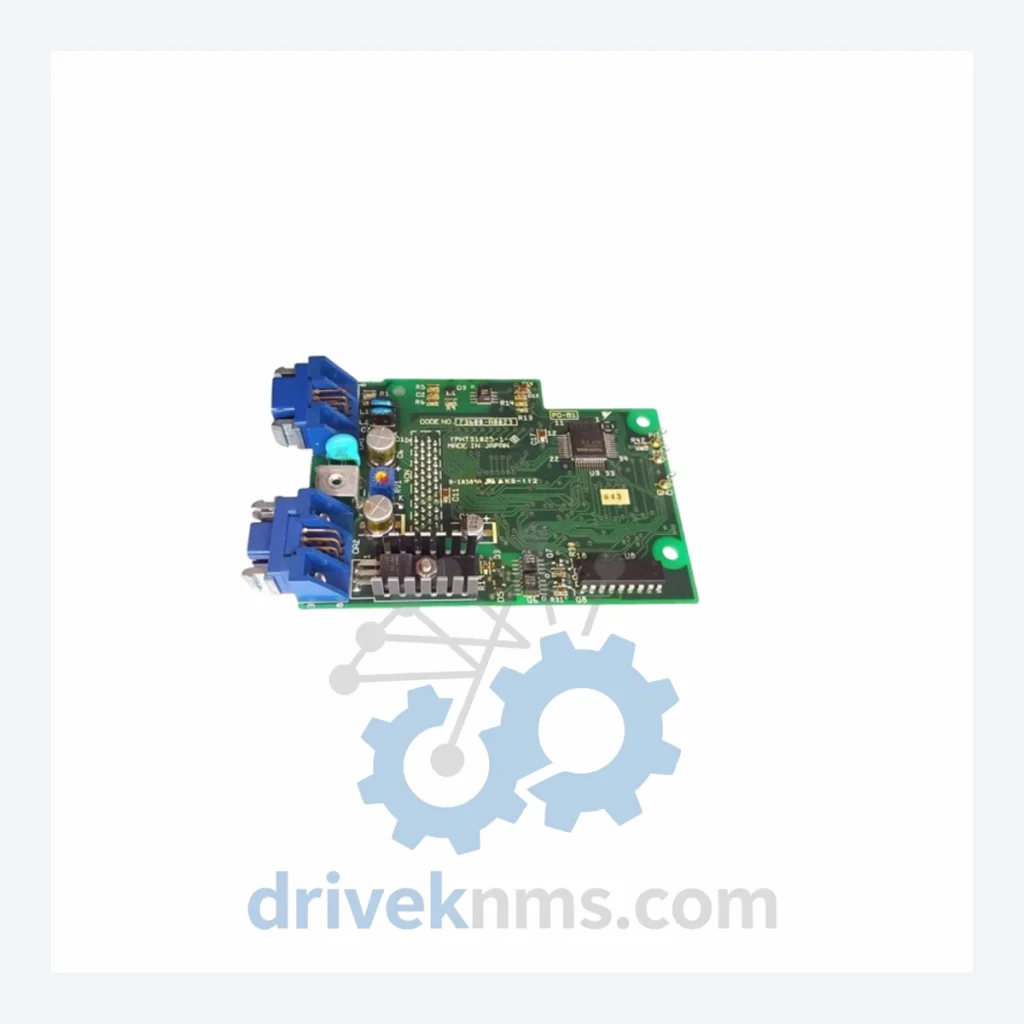

Yaskawa YPHT31033-1-1 73600-A0101 Circuit Board

Technical Dossier

Product Details And Specifications

Yaskawa YPHT31033 Series: Comprehensive Module Range and Technical Overview

The Yaskawa YPHT31033 series circuit boards are deployed across heavy industrial sectors including petrochemical refineries, nuclear power generation facilities, and large-scale chemical processing plants. These boards serve as core control and signal processing substrates within Yaskawa's drive and motion control platforms, providing stable, high-reliability operation in environments with strict uptime requirements. The YPHT31033-1-1 73600-A0101 variant is a documented revision used in legacy Yaskawa drive systems, and remains in active demand for maintenance and lifecycle extension programs globally.

The Evolution of YPHT31033 Architecture

The YPHT31033 board family was developed as part of Yaskawa's drive control substrate architecture, designed to interface with the internal bus structures of medium-voltage and low-voltage AC drive systems. Early revisions (suffix -1-0 and -1-1) used through-hole and mixed SMD component layouts optimized for industrial temperature ranges (-10°C to +60°C). Subsequent revisions introduced improved EMI shielding traces and revised firmware ROM configurations to address compatibility with updated drive firmware stacks. The 73600-A0101 assembly code identifies a specific PCB revision and component population variant, critical for cross-referencing against Yaskawa's internal BOM documentation. Compatibility with backplane connectors and drive control racks must be verified against the host drive model before substitution. Boards from different suffix revisions are not always interchangeable without firmware alignment.

YPHT31033 Full Catalog & Functionalities (SKU List)

The following SKUs represent documented variants and functionally related boards within the Yaskawa YPHT31033 and associated drive control board families. Each entry reflects a distinct assembly revision or functional role:

YPHT31033-1-1 73600-A0101: Primary control circuit board, revision A0101, mixed SMD/through-hole layout.
YPHT31033-1-0: Earlier revision of the same control board, through-hole dominant design.
YPHT31033-2-1: Second-generation variant with revised signal routing for updated drive firmware.
YPHT31033-1-2: Minor revision with component substitutions for EOL part mitigation.
YPHT31033-3-1: Third-generation layout with enhanced EMI suppression traces.
YPCB31033-1: Associated power supply sub-board used in the same drive chassis.
YPCB31033-2: Revised power sub-board with updated capacitor specification.
YPCT31S11-1E: Gate drive interface board, compatible with YPHT31033 host systems.
YPCT31S11-2E: Updated gate drive board with revised isolation barrier rating.
ETC615823-S1040: Control card used in conjunction with YPHT31033 in G7 drive platforms.
ETC615823-S1041: Revised control card variant for G7 series with updated ADC resolution.
YPHT31033-1-1 73600-B0101: B-revision assembly of the same board, component-level differences from A0101.
YPHT31033-1-1 73600-C0101: C-revision with updated conformal coating specification.
YPCB31033-3: Third-revision power sub-board, compatible with YPHT31033-2-x and -3-x variants.
ETC615823-S1042: Third-generation control card for G7/G5 drive platforms, functionally paired with YPHT31033 series.
YPHT31033-1-1 73600-A0102: Minor sub-revision of A0101, differing in ROM firmware version only.

Sourcing Hard-to-Find & Obsolete YPHT31033 Parts

The YPHT31033-1-1 73600-A0101 and related board revisions are no longer in active production by Yaskawa. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished units sourced from decommissioned drive systems, OEM overstock, and controlled disassembly of retired equipment. For end-users operating legacy Yaskawa drive platforms beyond the manufacturer's standard support window, DriveKNMS provides lifecycle extension support including cross-reference verification, revision compatibility assessment, and long-term supply agreements. All units are catalogued by assembly revision code and firmware variant to ensure accurate substitution. Customers requiring specific revision matches (e.g., A0101 vs. B0101) for validated repair procedures are advised to specify the full assembly code when submitting inquiries.

Quality Control for the YPHT31033 Range

Each YPHT31033 series board processed by DriveKNMS undergoes a structured inspection and functional verification protocol. Visual inspection covers solder joint integrity, capacitor condition (ESR measurement for electrolytic types), trace continuity, and connector pin condition. Boards are powered under controlled bench conditions using matched drive chassis or dedicated test fixtures that replicate the original backplane bus environment. Signal outputs are verified against reference waveform specifications for the applicable drive model. Boards exhibiting firmware version mismatches are flagged and documented prior to dispatch. Final units are packed in ESD-compliant packaging with revision labels and test records included. No board is dispatched without a completed inspection record.
