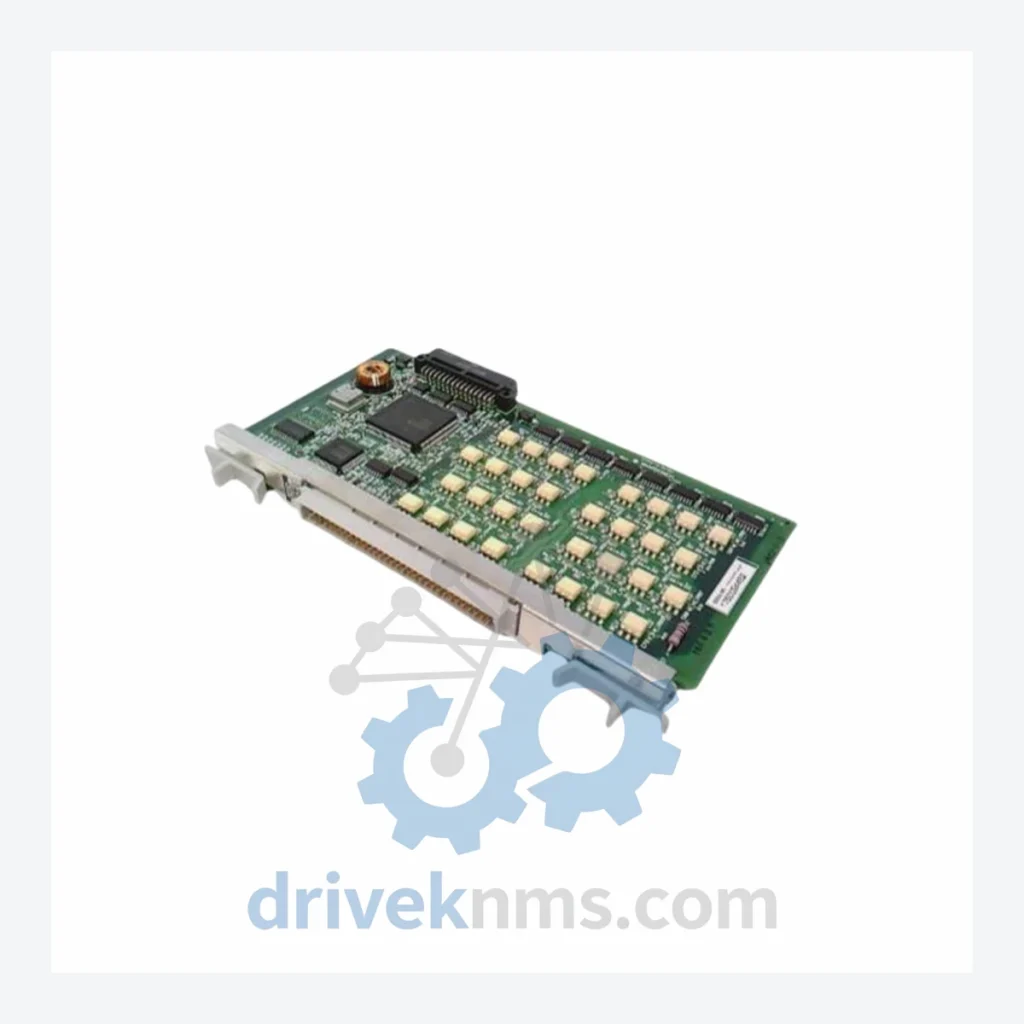

Yokogawa ADM52 S2 Output Module Board

Technical Dossier

Product Details And Specifications

Yokogawa ADM52 Series Technical Notes

The Yokogawa ADM52 S2 is an analog output module board deployed within the Yokogawa CENTUM CS and CENTUM VP Distributed Control System (DCS) platform — one of the most widely installed DCS architectures in global heavy industry. This series holds a significant installed base across petrochemical complexes, crude oil refineries, nuclear power generation facilities, LNG terminals, and large-scale chemical manufacturing plants. The ADM52 S2 specifically functions as an analog output sub-module, interfacing with field instruments such as control valves and positioners via 4–20 mA current loop signals. Its role is critical in closed-loop process control, where signal integrity and board-level reliability directly affect plant uptime and regulatory compliance.

The Evolution of ADM52 Architecture

The ADM52 module board is part of Yokogawa's long-running analog output card lineage within the CENTUM platform, which spans from the original CENTUM CS (introduced in the mid-1990s) through CENTUM CS 3000 and into the current CENTUM VP generation. The S2 suffix denotes a second-generation board revision, incorporating improved signal conditioning circuitry and enhanced EMI tolerance compared to the original S1 revision.

Early CENTUM CS installations used predecessor boards such as the ADM11 and ADM21 families for analog output functions. As the platform matured into CENTUM CS 3000 (circa 2000–2008), the ADM52 series became the standard analog output sub-module, designed to slot into the AMM22 and AMM42 analog output modules. The CENTUM VP era (2008–present) introduced the ADM52 S2 as the current production revision, maintaining backward compatibility with CS 3000 field wiring while adding improved diagnostics.

A key compatibility consideration: ADM52 S2 boards are not interchangeable with ADM52 S1 boards in all configurations — firmware and backplane connector revisions differ. Plants running mixed CS 3000 / VP environments must verify the exact sub-module revision before substitution. As CENTUM CS 3000 has entered its end-of-sale lifecycle, ADM52 S2 boards are increasingly sourced as spare parts rather than new production units.

ADM52 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified ADM52 and closely related analog output sub-module range within the Yokogawa CENTUM CS/VP ecosystem. Each entry reflects a distinct hardware revision or configuration variant.

ADM52 S2: Analog output sub-module board, 4-ch, 4–20 mA, CENTUM VP/CS3000 compatible.
ADM52 S1: First-generation analog output sub-module board, 4-ch, 4–20 mA, CENTUM CS3000.
ADM11: Single-channel analog output module, early CENTUM CS platform, 4–20 mA.
ADM21: 2-channel analog output module, CENTUM CS, predecessor to ADM52 family.
ADM51: 4-channel analog output sub-module, CENTUM CS3000, precursor revision to ADM52.
AMM22: 2-channel analog output module assembly; houses ADM52 sub-module boards.
AMM42: 4-channel analog output module assembly; primary carrier for ADM52 S2 boards.
AMM12: Single-channel analog output module, CENTUM CS3000/VP, field terminal compatible.
AAM21: Analog input/output mixed module, CENTUM VP, shares backplane with ADM52 family.
ADM12: Analog output sub-module, isolated channel configuration, CENTUM CS3000.
ADM22: Dual-channel analog output sub-module, CENTUM CS3000, 4–20 mA isolated.
ADM32: 4-channel analog output sub-module, CENTUM CS3000, non-isolated variant.
ADM42: 4-channel analog output sub-module, CENTUM CS3000, enhanced diagnostics revision.
ADM61: 6-channel analog output sub-module, CENTUM VP extended I/O configuration.
ADM71: High-density analog output sub-module, CENTUM VP R6, 8-channel configuration.
ADM80: Analog output sub-module, CENTUM VP R6, HART-enabled, 4-ch, 4–20 mA.

Quality Control for the ADM52 Range

The ADM52 S2 board presents specific test challenges due to its role as a precision analog output device operating within a tightly coupled DCS backplane environment. DriveKNMS applies the following test protocol to all ADM52 units prior to shipment:

Backplane Interface Verification: Each board is seated in a CENTUM-compatible test backplane to verify correct bus communication and absence of backplane connector damage or pin deformation. DAC Linearity Test: The 12-bit DAC output is swept across the full 4–20 mA range in 256 steps, with output current measured at ±0.01 mA resolution to confirm linearity within Yokogawa specification. Channel Isolation Test: Inter-channel isolation resistance is measured at 500 VDC to confirm no cross-channel leakage, critical for multi-loop installations. Thermal Cycling: Units are subjected to a 0–55°C thermal cycle to identify latent solder joint failures common in aged PCB assemblies. Firmware Revision Check: EEPROM firmware revision is read and documented; S1 vs S2 revision is confirmed and labeled on the unit before dispatch to prevent field substitution errors.
