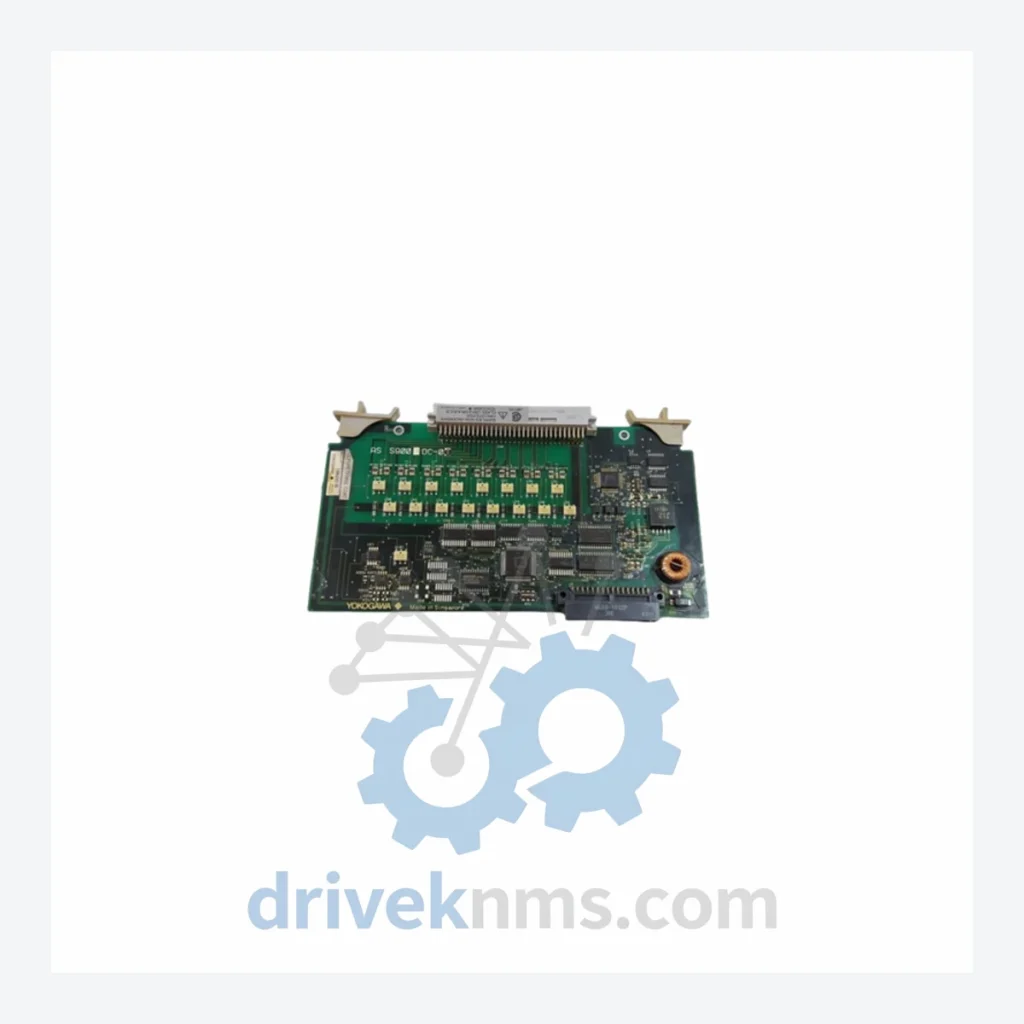

Yokogawa AMM12 Modules: AMM12 S2 PC Board

Technical Dossier

Product Details And Specifications

Yokogawa AMM12 Series Technical Notes

The Yokogawa AMM12 is an analog input/output module deployed within the CENTUM CS/CS 3000/VP Distributed Control System (DCS) platform — one of the most widely installed DCS architectures in global heavy industry. AMM12-series modules are found in continuous operation environments including petrochemical complexes, LNG terminals, nuclear power auxiliary systems, crude oil refineries, and pulp & paper mills. The AMM12 S2 PC Board is the core processing substrate of this module, responsible for signal conditioning, A/D conversion, and backplane bus communication. Its long field service record — spanning installations from the mid-1990s through active sites today — makes it a critical spare parts target for plant maintenance engineers worldwide.

The Evolution of AMM12 Architecture

The AMM12 module family was introduced as part of Yokogawa's CENTUM CS platform in the early 1990s, designed to provide high-density analog I/O within a compact field control station (FCS) chassis. The original AMM12 revision (S1) used discrete analog front-end components with 12-bit resolution. The S2 revision introduced improved EMI shielding, enhanced A/D linearity, and revised bus arbitration logic compatible with both the CENTUM CS and early CENTUM CS 3000 backplane standards.

With the release of CENTUM CS 3000 R3 and subsequently CENTUM VP, Yokogawa migrated toward the AAM21B and AAM51B module families, which offer 16-bit resolution and HART field device communication. The AMM12 S2 is therefore classified as a mature/end-of-life module within Yokogawa's official product lifecycle. However, due to the 20–40 year operational lifespan of DCS installations in refinery and power generation environments, AMM12 S2 boards remain in active demand as replacement spares. Yokogawa ceased volume production of AMM12 variants, making third-party certified spare parts suppliers the primary sourcing channel for plant operators.

AMM12 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified AMM12 module range and directly associated CENTUM CS/CS 3000 analog I/O components. Each entry reflects a distinct hardware configuration or revision level.

AMM12 S2: Analog mixed I/O PC board, CENTUM CS/CS 3000 backplane, S2 revision substrate
AMM12 S1: First-generation analog mixed I/O PC board, 12-bit resolution, CENTUM CS backplane
AMM12-H: High-density analog I/O variant, extended channel count configuration
AMM12 S2-A: AMM12 S2 with conformal coating for high-humidity environments
AAM21B: Successor 16-bit analog input module, HART-compatible, CENTUM CS 3000/VP
AAM51B: 16-bit analog output module, HART-compatible, CENTUM VP platform
ADM12: Analog input module, differential input configuration, CENTUM CS chassis
ADM51: Analog output module, 4–20 mA, CENTUM CS 3000 FCS
ALM11: Alarm input module, 32-channel, CENTUM CS field control station
ALM21: Alarm input module, 64-channel, CENTUM CS 3000
DIO11: Digital I/O module, 32-channel mixed, CENTUM CS backplane
DIO51D: Digital output module, 32-channel, CENTUM CS 3000/VP
PIO11: Pulse input module, high-speed counter, CENTUM CS FCS
SCP451: Sequence control processor, CENTUM CS 3000 FCS CPU module
CP451-10: Field control unit CPU, CENTUM CS 3000, dual-redundant capable
CP461-50: Enhanced FCS CPU, CENTUM VP, high-capacity sequence execution
MCU-1: Module communication unit, CENTUM CS backplane bus controller
RIO-BUS: Remote I/O bus coupler, CENTUM CS 3000 extended I/O node

Quality Control for the AMM12 Range

AMM12 S2 PC boards undergo a structured multi-stage inspection protocol at DriveKNMS before dispatch. Stage 1: Visual inspection of backplane connector pins, solder joints, and component seating under 10× magnification. Stage 2: Powered bench test using a CENTUM CS 3000 test chassis — module is inserted into a live backplane and analog channel continuity is verified across all I/O points at 4 mA, 12 mA, and 20 mA reference signals. Stage 3: Bus communication verification — the AMM12 S2 is confirmed to respond correctly to FCS polling cycles with no CRC errors over a minimum 30-minute soak period. Stage 4: Thermal cycling — boards are subjected to 0°C to 55°C thermal ramp to identify latent cold-solder or capacitor degradation faults. Only boards passing all four stages are released for sale.
