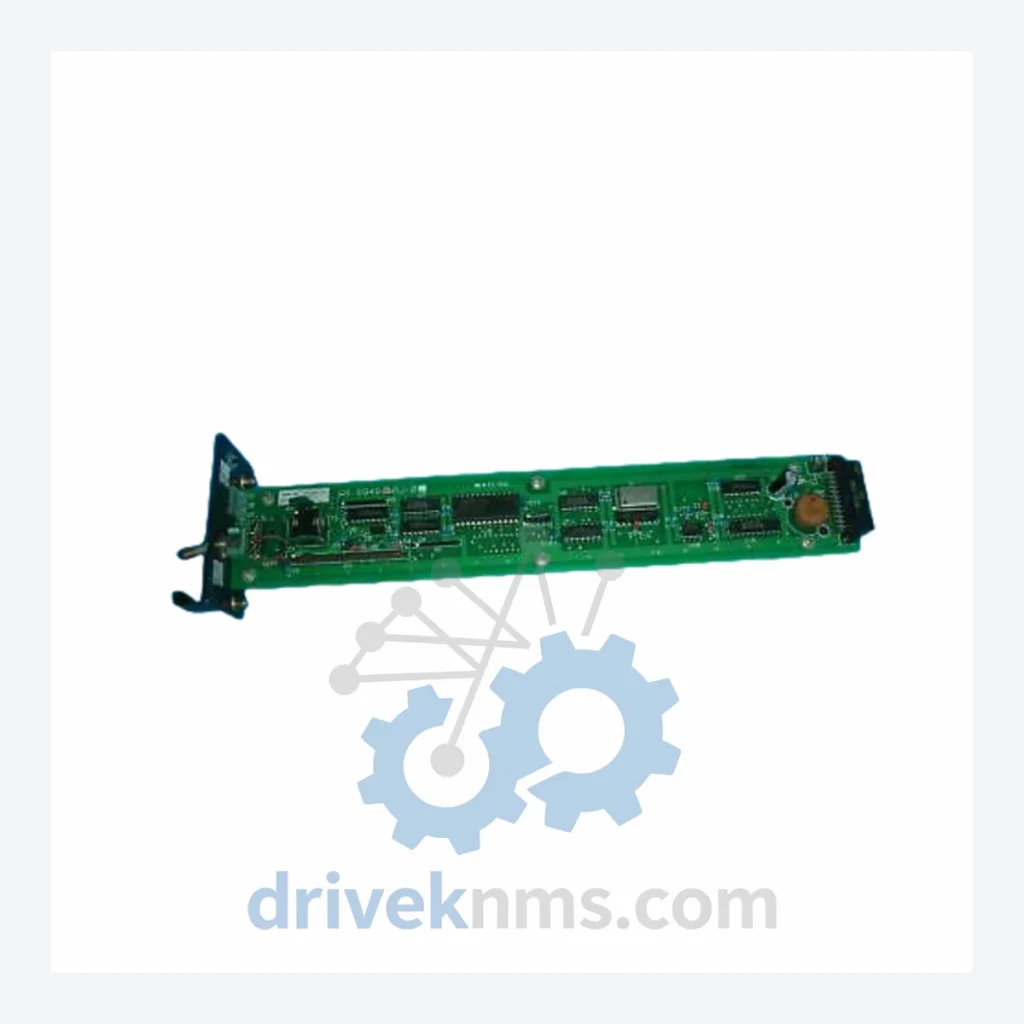

Yokogawa AS Series Modules: AS S9491BJ-0 Bus Coupler Module

Technical Dossier

Product Details And Specifications

Yokogawa AS Series Technical Notes

The Yokogawa AS Series (Autonomous Controller Series) is a field-proven distributed control platform deployed across the global heavy process industry, including petrochemical complexes, nuclear power auxiliary systems, oil refineries, LNG terminals, and continuous chemical manufacturing facilities. Introduced as part of Yokogawa's CENTUM and STARDOM ecosystem, the AS Series functions as the primary field controller layer, interfacing directly with I/O subsystems, field instruments, and supervisory SCADA/DCS networks. Its modular backplane architecture supports hot-swap replacement, redundant power configurations, and deterministic scan-cycle execution — characteristics that have made it a standard specification in long-lifecycle plant environments where uptime requirements exceed 99.9%. The AS S9491BJ-0 Bus Coupler Module is a representative component of this series, providing the critical communication bridge between the controller backplane and field I/O expansion racks.

The Evolution of AS Series Architecture

The Yokogawa AS Series traces its lineage to the CENTUM CS 3000 and CENTUM VP controller families, where autonomous field controllers were first standardized for distributed process control. Early-generation AS modules operated on a proprietary Vnet/IP backbone, providing deterministic Ethernet-based communication between field controllers and the engineering workstation layer. The AS S9400-series backplane units established the physical form factor — a 19-inch rack-mount chassis with a passive backplane bus — that remains consistent across subsequent generations.

As plant automation requirements evolved through the 2000s and 2010s, Yokogawa extended the AS Series to support IEC 61131-3 function block programming, enabling hybrid DCS/PLC operation within a single controller node. The introduction of dual-redundant CPU modules (e.g., AS S9401BJ-0 paired configurations) addressed SIL 2 and SIL 3 safety instrumented system requirements without requiring a separate safety controller platform. Bus coupler modules such as the AS S9491BJ-0 were developed to extend the I/O bus across rack boundaries, allowing large-scale I/O configurations to be distributed across multiple physical enclosures while maintaining a single logical controller domain.

Compatibility across AS Series generations is governed by the firmware revision of the CPU module and the backplane bus protocol version. Mixing early-generation I/O modules (pre-2008 firmware) with later CPU revisions requires validation against Yokogawa's compatibility matrix. DriveKNMS maintains documentation on cross-generation compatibility for the AS Series and can advise on validated replacement configurations.

AS Series Full Catalog & Functionalities (SKU List)

CPU / Controller Modules

• AS S9401BJ-0: Single-node autonomous controller CPU, Vnet/IP primary interface
• AS S9401BJ-1: Redundant-pair autonomous controller CPU, enhanced diagnostics
• AS S9403BJ-0: High-capacity CPU module, extended tag count support
• AS S9403BJ-1: Redundant CPU, high-capacity, dual Vnet/IP ports

Bus Coupler / Communication Modules

• AS S9491BJ-0: Bus coupler module, extends I/O bus across rack boundaries
• AS S9492BJ-0: Remote I/O bus coupler, fiber-optic interface variant
• AS S9493BJ-0: Bus coupler with enhanced noise immunity for hazardous areas

Digital Input (DI) Modules

• AS S9410BJ-0: 16-channel 24 VDC digital input module, isolated
• AS S9411BJ-0: 32-channel 24 VDC digital input, high-density format
• AS S9412BJ-0: 16-channel 120 VAC digital input module

Digital Output (DO) Modules

• AS S9420BJ-0: 16-channel 24 VDC digital output, transistor type
• AS S9421BJ-0: 16-channel relay output module, 2A per channel

Analog Input (AI) Modules

• AS S9430BJ-0: 8-channel 4–20 mA analog input, 16-bit resolution
• AS S9431BJ-0: 16-channel analog input, multiplexed, HART pass-through
• AS S9432BJ-0: 8-channel thermocouple/RTD input module

Analog Output (AO) Modules

• AS S9440BJ-0: 8-channel 4–20 mA analog output, 13-bit resolution
• AS S9441BJ-0: 4-channel analog output with HART communication support

Power Supply Modules

• AS S9480BJ-0: 24 VDC rack power supply module, 10A rated
• AS S9481BJ-0: Redundant power supply module, auto-switchover on failure

Sourcing Hard-to-Find & Obsolete AS Series Parts

For obsolete variants where no direct replacement exists, DriveKNMS provides cross-reference analysis to identify compatible substitute modules within the Yokogawa product range or from validated third-party equivalents. Requests for obsolete AS Series parts should include the full part number, firmware revision if known, and the host system version (CENTUM CS 3000 R3.xx or CENTUM VP Rxx.xx).

Quality Control for the AS Series Range

The AS Series backplane bus operates on a proprietary parallel bus protocol with strict timing tolerances. Standard bench-testing procedures used for generic PLC modules are insufficient to validate AS Series bus coupler and CPU modules. DriveKNMS applies a dedicated test protocol for AS Series components:

• Backplane bus integrity test: Each module is seated in a reference AS Series chassis and subjected to a full bus communication cycle test, verifying address decoding, data transfer integrity, and error flag behavior across all 32 bus slots.
• Power rail verification: 5 VDC, 24 VDC, and isolated power rails are measured under load conditions representative of a fully populated rack.
• Firmware revision identification: CPU and bus coupler modules are interrogated via the engineering port to confirm firmware version and compatibility classification.
• Thermal cycling: Modules are subjected to a 0°C to 55°C thermal cycle to identify latent component failures consistent with field-aged units.
• Communication loop test: Bus coupler modules (including AS S9491BJ-0) are tested in a live Vnet/IP segment to confirm end-to-end I/O bus extension functionality.
