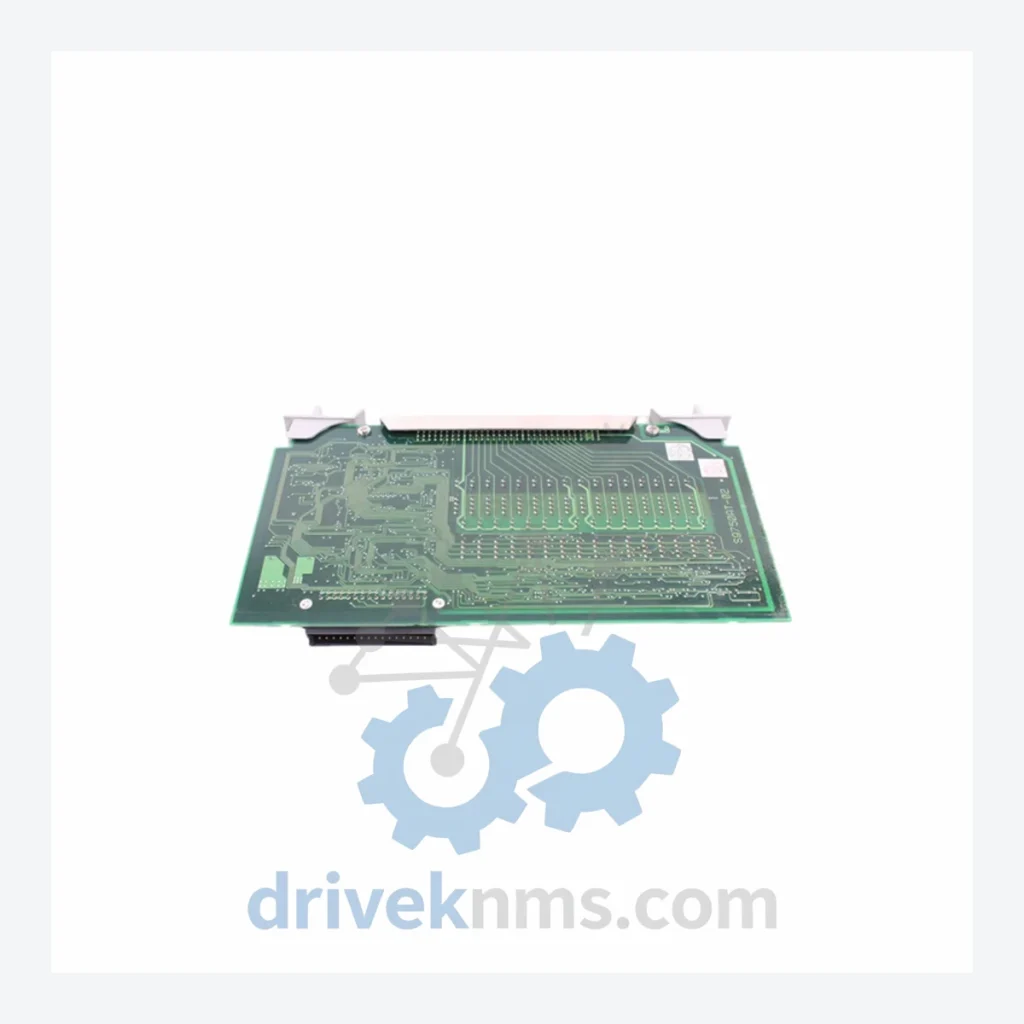

Yokogawa CENTUM VP ADM12 S1 Modules

Technical Dossier

Product Details And Specifications

Yokogawa CENTUM VP Series Technical Notes

The Evolution of CENTUM VP Architecture

Yokogawa's CENTUM DCS lineage spans four decades. The original CENTUM system (1975) introduced distributed field control. CENTUM XL (1988) added redundancy and expanded I/O capacity. CENTUM CS (1993) transitioned to Ethernet-based communication backbones. CENTUM CS 3000 (1998) became the dominant platform in refinery and chemical plant installations globally, introducing the Vnet/IP communication protocol and modular FCS architecture. CENTUM VP (2008) extended this architecture with enhanced cybersecurity, OPC-UA integration, and expanded function block libraries while maintaining backward hardware compatibility with CS 3000 I/O modules — a critical factor for brownfield plant operators managing long asset lifecycles. The ADM12 S1 servo module operates within the FCS I/O bus structure, interfacing with the node unit (NU) via the ESB bus or RIO bus depending on installation generation. Compatibility between CS 3000 and CENTUM VP hardware generations requires verification of bus type, power supply rating, and firmware revision before substitution.

CENTUM VP Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Yokogawa CENTUM VP and CS 3000 hardware catalog. Modules are classified by functional category.

Servo / Motion Add-On Modules

• ADM12 S1: Servo Add-On Module/Board; extends axis control in FCS node units
• ADM11 S1: Servo Add-On Module; single-axis variant for compact FCS configurations
• ADM51 S1: Advanced Servo Drive Module; supports high-speed positioning feedback loops

Analog Input Modules

• AAI141-S00: 16-ch analog input module; 4–20 mA, HART-compatible, isolated
• AAI141-S50: 16-ch analog input; intrinsically safe barrier variant for Zone 1 hazardous areas
• AAI143-S00: 8-ch analog input; high-speed scan for fast-loop process variables
• AAI841-S00: 16-ch analog input; dual-redundant signal path for SIL-rated loops

Analog Output Modules

• AAO141-S00: 8-ch analog output; 4–20 mA with HART pass-through capability
• AAO841-S00: 8-ch analog output; redundant output for critical control valves

Digital Input Modules

• ADV151-P00: 32-ch digital input; 24 VDC, high-density node I/O card
• ADV157-P00: 16-ch digital input; 110/220 VAC compatible for legacy field wiring
• ADV161-P00: 64-ch digital input; ultra-high-density for large interlock systems

Digital Output Modules

• ADV551-P00: 32-ch digital output; 24 VDC transistor output, short-circuit protected
• ADV557-P00: 16-ch relay output; 250 VAC/2A per channel for motor starter interfaces

Communication & CPU Modules

• CP451-10: Field Control Station CPU; dual-redundant processor for CENTUM VP FCS
• CP345-1: CS 3000 FCS CPU module; compatible with VP via firmware bridge mode
• ALF111: Vnet/IP communication coupler; connects FCS to plant-wide control network
• AIP829-S00: FOUNDATION Fieldbus H1 interface module; 4-segment, 16-device capacity

Power Supply Modules

• PW481: 24 VDC node power supply; 40W, redundancy-capable with hot-swap support
• PW482: 48 VDC power supply module; for extended I/O bus configurations

Quality Control for the CENTUM VP Range

CENTUM VP modules — particularly servo add-on boards, CPU cards, and communication couplers — require functional validation beyond visual inspection. DriveKNMS applies a structured test protocol for all CENTUM VP hardware prior to shipment. Servo modules including the ADM12 S1 are bench-tested for axis command response, encoder feedback signal integrity, and ESB bus communication handshake. Analog I/O modules undergo full-channel calibration verification against NIST-traceable references. Digital I/O modules are tested for channel isolation resistance and switching response time. CPU modules are powered in a controlled FCS test rack and verified for Vnet/IP link establishment and function block execution. All modules are shipped with individual test records. ESD-safe packaging and anti-static foam inserts are standard for all board-level components.
