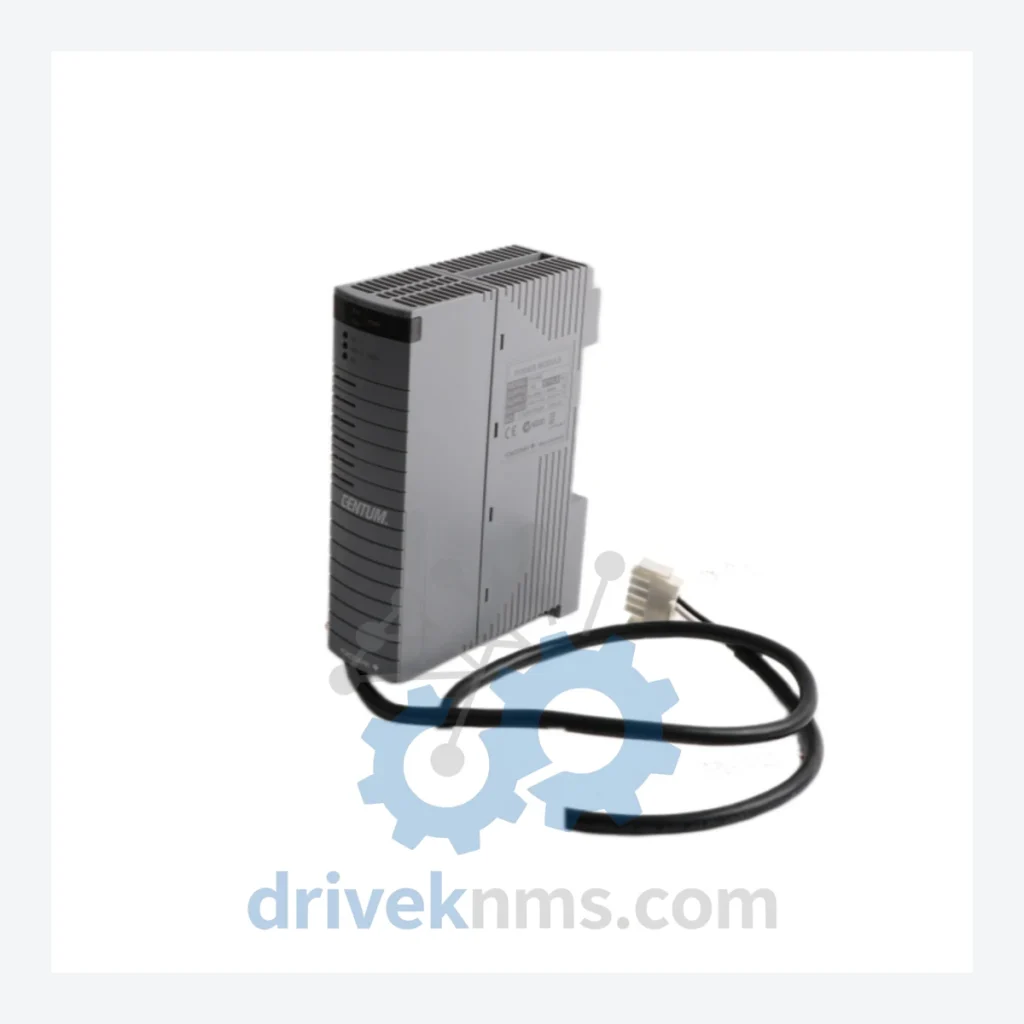

Yokogawa CENTUM VP / CS 3000 Power Supply Modules: PW482-51

Technical Dossier

Product Details And Specifications

Yokogawa PW482 Series Technical Notes

The Yokogawa PW482 series power supply modules are core infrastructure components within the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS) — platforms that hold dominant installed-base positions across global heavy industry verticals including petrochemical complexes, nuclear power generation facilities, LNG terminals, offshore platforms, and crude oil refineries. The PW482 series provides regulated DC power to field control stations (FCS), I/O modules, and communication buses, operating under the strict reliability and redundancy requirements mandated by continuous-process industries. These modules are engineered to IEC 61508 functional safety standards and are designed for 24/7 uninterrupted operation in Class I hazardous environments.

The Evolution of PW482 Architecture

The PW482 lineage traces to Yokogawa's CENTUM CS platform introduced in the mid-1990s, where modular, hot-swappable power supply architecture replaced earlier monolithic PSU designs. The CS 3000 generation (released circa 1998) standardized the PW482 form factor across field control stations, establishing a common backplane interface that persisted through the CENTUM VP transition (2008 onward). This architectural continuity was deliberate: it allowed brownfield plants to migrate from CS 3000 to VP without replacing power infrastructure, significantly reducing upgrade CAPEX.

Key architectural milestones: the PW481 series (predecessor) operated at narrower input voltage tolerances; the PW482 series expanded AC input range to 85–264 VAC universal input, improving grid compatibility across Asian, European, and North American installations. Redundant PW482 configurations use the PWR482 redundancy unit to enable N+1 hot-swap without process interruption. As CENTUM VP has now entered its mature phase and CS 3000 is fully end-of-life (EOL declared by Yokogawa), the PW482 series is in the lifecycle maintenance and long-term spare parts support phase. No direct next-generation replacement module exists with identical backplane pinout, making original PW482 units the only field-compatible solution for existing installations.

PW482 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified PW482 series module range across CENTUM CS 3000 and CENTUM VP platforms, classified by function:

Power Supply Modules

• PW482-51: 100–240 VAC input, 24 VDC output power supply module for FCS field control stations, standard single-unit configuration.
• PW482-50: 100–240 VAC input power supply module, earlier revision with narrower output tolerance, used in CS 3000 legacy racks.
• PW482-11: 24 VDC direct input power supply module, designed for DC-bus powered field installations and battery-backed UPS environments.
• PW482-10: 24 VDC input variant, earlier hardware revision, compatible with CS 3000 AFV10 and AFV30 field control stations.
• PW482-61: Extended-range AC input power supply module with enhanced EMI filtering, for installations in electrically noisy industrial environments.
• PW482-60: AC input module with conformal coating option for high-humidity and coastal refinery environments.
• PW481-51: Predecessor series AC input PSU, compatible with early CENTUM CS racks; superseded by PW482-51 but still required in unmodified legacy stations.
• PW481-11: Predecessor DC input PSU, predecessor to PW482-11; used in early CS 3000 deployments pre-2002.

Redundancy & Power Distribution Units

• PWR482: Redundancy unit for PW482 series; enables hot-swap N+1 redundant power supply configuration without process shutdown.
• PWR481: Redundancy unit for PW481 predecessor series; not cross-compatible with PW482 backplane.
• PW701-51: 24 VDC power distribution module for CENTUM VP ESB bus-powered I/O node stations.
• PW701-11: DC input power distribution module for ESB node stations in remote I/O configurations.

Associated Field Control Station Power Infrastructure

• AFV10D: Field control station unit (dual-redundant CPU) requiring dual PW482-51 modules in redundant PSU configuration.
• AFV30D: Expanded field control station supporting up to 16 I/O nests; power budget requires PW482-51 with PWR482 redundancy unit.
• ANB10D: I/O node unit powered via ESB bus; uses PW701 series rather than PW482 directly.
• AIP588-S50: Intrinsically safe I/O module drawing regulated 24 VDC from PW482 output rail; power budget must be verified against PW482 output current rating.

Quality Control for the PW482 Range

PW482 series modules present specific test challenges due to their backplane bus interface and regulated DC output architecture. DriveKNMS applies the following test protocol to all PW482 units prior to dispatch:

• Input voltage sweep test: AC input tested across 85 VAC to 264 VAC to verify universal input regulation compliance.
• Output load regulation test: 24 VDC output measured under 0%, 50%, and 100% rated load conditions; ripple and noise measured per IEC 61000-4 methodology.
• Backplane connector inspection: Gold-contact backplane pins inspected under 10x magnification for oxidation, mechanical deformation, and contamination.
• Thermal cycling verification: Units cycled through operating temperature range (0°C to 55°C) to identify latent thermal-stress failures in capacitor banks and switching transistors.
• Redundancy switchover test: Where PWR482 redundancy unit is available, active-to-standby switchover is tested under load to verify sub-100ms transfer time.
• Isolation resistance test: Input-to-output and input-to-chassis isolation verified per IEC 60950 dielectric withstand requirements.
• Firmware/hardware revision logging: Hardware revision code recorded and cross-referenced against Yokogawa technical bulletins for known field issues.
