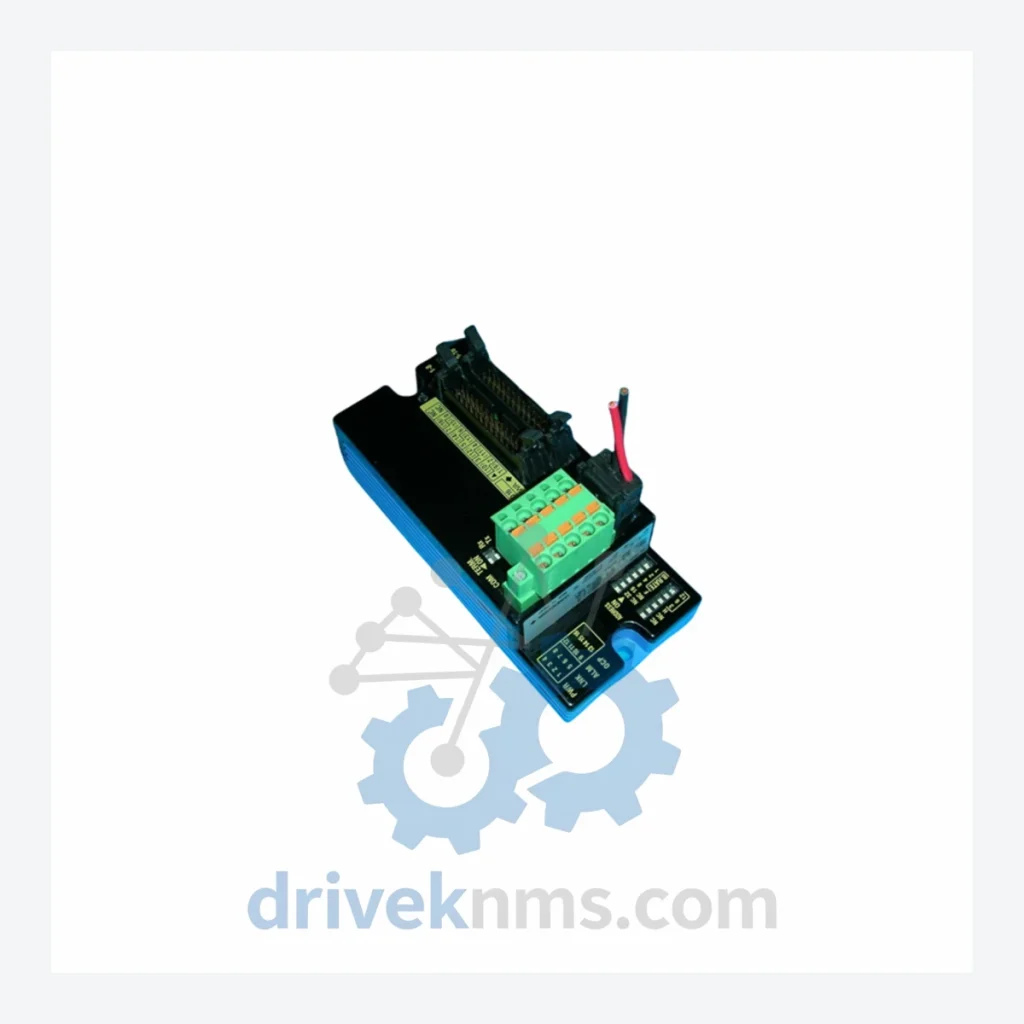

Yokogawa CENTUM VP TAHXD Series Modules – TAHXD16-3PEM

Technical Dossier

Product Details And Specifications

Yokogawa CENTUM VP TAHXD Series Technical Notes

The Yokogawa TAHXD series represents a core I/O and master module family within the CENTUM VP Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in global heavy industry. CENTUM VP installations are documented across petrochemical complexes, LNG terminals, nuclear power facilities, offshore platforms, and continuous-process refineries in over 80 countries. The TAHXD series specifically addresses the high-density analog and digital I/O requirements of these environments, where signal integrity, redundancy, and long-term parts availability are non-negotiable operational parameters.

The TAHXD16-3PEM is a master module variant within this family, designed to interface with field devices through a structured backplane bus architecture. Its role in the CENTUM VP node is to coordinate I/O sub-module communication, manage bus arbitration, and maintain real-time data exchange with the field control station (FCS). Plants operating CENTUM VP systems with TAHXD-series nodes typically run 10–25 year lifecycle horizons, making spare parts sourcing a critical maintenance discipline.

The Evolution of TAHXD Architecture

The TAHXD series traces its lineage through Yokogawa's successive CENTUM generations. Early CENTUM CS 1000/3000 platforms used predecessor I/O node architectures (KFCS, LFCS) with discrete wiring-intensive I/O marshalling. The transition to CENTUM VP introduced the Vnet/IP communication backbone and a redesigned I/O node structure, of which the TAHXD family is a primary component.

The TAHXD architecture uses a dual-redundant backplane bus with hot-standby master module capability. The "-3PEM" suffix in TAHXD16-3PEM denotes a specific hardware revision and power/communication configuration. Over successive CENTUM VP releases (R4, R5, R6), Yokogawa introduced firmware-level enhancements to TAHXD modules while maintaining backward hardware compatibility — a deliberate design choice to protect installed base investments. Plants running CENTUM VP R3 or earlier may encounter compatibility constraints when mixing TAHXD hardware revisions, requiring careful BOM validation before procurement.

As CENTUM VP matures into its late-lifecycle phase in many installations, the TAHXD series has transitioned from active production to managed availability status. Yokogawa's successor platform (CENTUM VP R6 and the emerging FAST/TOOLS integration layer) introduces updated I/O node designs, but the installed base of TAHXD-equipped systems remains substantial and will require parts support through the 2030s.

TAHXD Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Yokogawa CENTUM VP TAHXD and associated I/O node ecosystem.

Master & Node Interface Modules

• TAHXD16-3PEM: 16-slot I/O node master module, 3-port Ethernet, redundancy-capable
• TAHXD08-3PEM: 8-slot I/O node master module, 3-port Ethernet interface variant
• TAHXD16-3PE: 16-slot master module, standard Ethernet, non-redundant configuration
• TAHXD08-3PE: 8-slot master module, standard Ethernet, compact node deployment
• TAHXD16-3PEL: 16-slot master module, long-distance Ethernet fiber variant

Analog Input Modules

• AAI141-S00: 16-ch analog input, 4-20 mA, HART-enabled, single-ended
• AAI141-S50: 16-ch analog input, 4-20 mA, HART, with SIL2 certification
• AAI143-S00: 16-ch analog input, thermocouple/RTD universal input
• AAI835-S00: 8-ch high-speed analog input, 1 ms scan rate
• AAI841-S00: 8-ch analog input, isolated, high-accuracy 0.1% FS

Analog Output Modules

• AAO145-S00: 8-ch analog output, 4-20 mA, HART-enabled
• AAO145-S50: 8-ch analog output, 4-20 mA, HART, SIL2-rated
• AAO841-S00: 8-ch analog output, isolated, high-load drive capability

Digital Input / Output Modules

• ADV151-P00: 32-ch digital input, 24 VDC, sink type, standard density
• ADV161-P00: 32-ch digital output, 24 VDC, source type, fused per channel
• ADV557-P00: 16-ch digital input, 110/220 VAC, optically isolated
• ADV151-P50: 32-ch digital input, SIL2-rated, for safety instrumented systems

Communication & Power Modules

• ACP71: Node power supply module, 24 VDC input, redundancy-capable
• ACP72: Node power supply module, 110/220 VAC input variant
• ANB10D: Vnet/IP node bus interface card for FCS integration

Quality Control for the TAHXD Range

TAHXD master modules present specific test challenges due to their integrated backplane bus controller, Ethernet PHY circuitry, and dual-port redundancy switching logic. DriveKNMS applies a structured test protocol for all TAHXD units prior to dispatch:

• Backplane bus communication verification using a CENTUM VP-compatible node test fixture
• Ethernet port continuity and link negotiation test (10/100 Mbps auto-negotiation validation)
• Redundancy switchover simulation: forced primary-to-secondary failover with sub-100ms recovery confirmation
• Power rail measurement: +5V, +3.3V, and +24V backplane supply within 2% tolerance
• Firmware revision identification and documentation against Yokogawa hardware compatibility matrix
• 48-hour burn-in cycle under simulated I/O load conditions
• Final visual inspection per IPC-A-610 Class 2 workmanship standard

All test results are documented and shipped with each unit. Units that fail any stage of the protocol are quarantined and not offered for sale.
