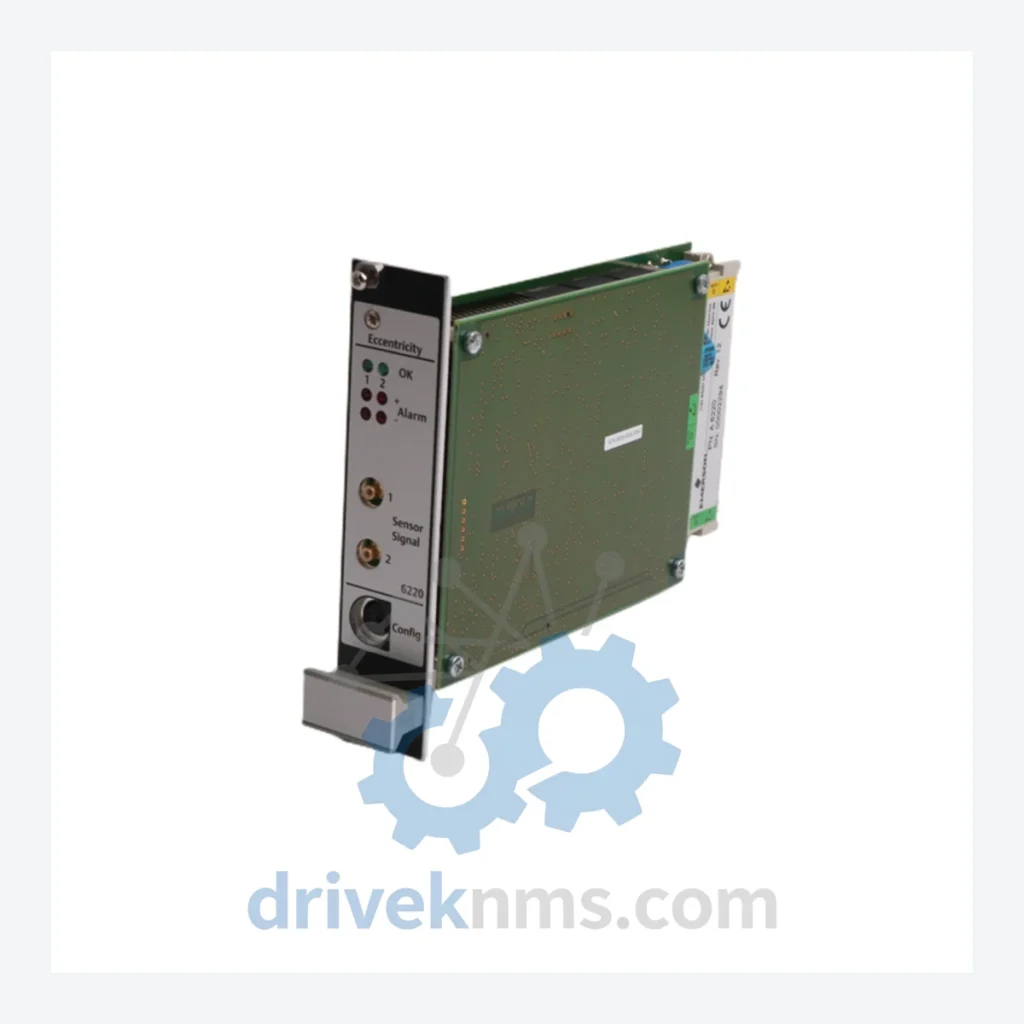

Emerson A6220 Modules – Dual Channel Eccentric Vibration Monitoring

Technical Dossier

Product Details And Specifications

Emerson A6220 Series Technical Notes

The Evolution of A6220 Architecture

The A6220 belongs to Emerson's Ovation I/O module lineage, which traces its origins to the Westinghouse WDPF (Westinghouse Distributed Processing Family) platform introduced in the 1980s. Following Emerson's acquisition of Westinghouse Process Control in 1999, the Ovation platform was rebranded and progressively modernized while maintaining backward compatibility with legacy WDPF hardware — a deliberate design decision that extended the operational life of installed base equipment by decades.

Early-generation vibration monitoring within WDPF relied on discrete analog signal conditioning cards with limited diagnostic capability. The A6220 represents a mid-to-late generation Ovation I/O module incorporating on-board signal processing, self-diagnostics, and direct integration with the Ovation controller's high-speed I/O bus. Compared to its predecessors, the A6220 introduced improved noise immunity for long cable runs (common in large turbine halls), configurable alarm and trip setpoints via software rather than hardware jumpers, and dual-channel architecture enabling simultaneous monitoring of two proximity probe inputs from a single module slot.

Compatibility considerations: The A6220 is designed for Ovation Remote I/O (RIO) cabinets and requires a compatible Ovation I/O base (carrier card) for installation. It is not directly interchangeable with WDPF-era cards without carrier adaptation. Facilities running hybrid WDPF/Ovation architectures must verify carrier compatibility before substitution. The module communicates over the Ovation I/O bus protocol and is not compatible with third-party DCS backplanes. As Emerson has progressively migrated customers toward the Ovation 3.x and later software environments, firmware compatibility between A6220 hardware revisions and controller software versions must be confirmed during any replacement activity.

The A6220 series is currently in the mature/end-of-active-production phase. Emerson continues to provide lifecycle support, but new installations are increasingly directed toward the Ovation Smart I/O platform. For facilities committed to long-term Ovation Classic I/O infrastructure, third-party MRO suppliers such as DriveKNMS provide tested surplus and refurbished A6220 units to extend operational life without forced platform migration.

A6220 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified Emerson Ovation vibration and dynamic monitoring module range, within which the A6220 operates. Each module is listed with its primary functional designation:

A6220: Dual-channel eccentric vibration monitoring, proximity probe input, API 670 compliant.
A6210: Single-channel radial vibration monitoring module, eddy-current probe interface.
A6215: Single-channel radial vibration with expanded diagnostic output registers.
A6225: Dual-channel radial vibration monitoring, high-resolution signal conditioning.
A6230: Axial position (thrust) monitoring module, dual-channel, DC-coupled input.
A6235: Axial position monitoring with extended range for large thrust bearing applications.
A6240: Speed and phase reference monitoring module, keyphasor signal processing.
A6245: Dual-channel speed monitoring with overspeed trip relay output.
A6250: Temperature monitoring module (RTD/thermocouple), 4-channel, machinery bearing applications.
A6255: 8-channel thermocouple input module for exhaust temperature profiling.
A6260: Analog output module, 4-channel, 4–20 mA, for vibration trend retransmission.
A6270: Digital input module, 16-channel, for machinery protection relay status acquisition.
A6275: Digital output module, 16-channel, relay-driven trip and alarm annunciation.
A6280: Communication interface module, Modbus RTU/TCP gateway for third-party SCADA integration.
A6290: Power supply module for Ovation RIO cabinet, redundant 24 VDC output.
A6300: Controller module, Ovation Classic I/O bus master, paired with RIO expansion cabinets.
A6310: Redundant controller module pair for high-availability Ovation configurations.

Sourcing Hard-to-Find & Obsolete A6220 Parts

The A6220 and associated Ovation Classic I/O modules are no longer in active volume production. Emerson's official channel prioritizes new Ovation Smart I/O hardware, leaving facilities with legacy installations dependent on the secondary MRO market for like-for-like replacements. DriveKNMS maintains a dedicated inventory of tested Emerson Ovation modules, including the A6220, sourced from decommissioned plant equipment, controlled surplus channels, and authorized refurbishment programs.

Quality Control for the A6220 Range

The A6220's dual-channel architecture and direct interface with high-sensitivity proximity probes impose specific quality verification requirements that differ from standard analog I/O modules. DriveKNMS applies the following test protocol to all A6220 units prior to dispatch:

Backplane connector inspection: Pin continuity and contact resistance measurement across all I/O bus connector positions. Bent or oxidized pins are a primary failure mode in modules removed from long-service installations. Signal conditioning circuit verification: Each channel's input impedance, gain linearity, and frequency response are tested against Emerson's published specifications using calibrated signal sources simulating proximity probe outputs across the full measurement range (typically 0–25 mil or 0–500 µm eccentricity). Alarm and trip relay functional test: Both channels' configurable relay outputs are exercised through simulated threshold crossing events to confirm correct setpoint response and relay contact integrity. I/O bus communication test: The module is installed in a test carrier and interrogated via Ovation I/O bus protocol to confirm correct register mapping, diagnostic status reporting, and absence of bus error flags. Thermal cycling: Units are subjected to operational temperature cycling (0°C to 60°C) to identify latent solder joint or component failures not detectable under ambient conditions. Final inspection: Hardware revision label verification, firmware version readout, and cosmetic inspection for physical damage to the module housing and probe input terminals.
