Emerson A6500 Series: Comprehensive Module Range and Technical Overview

The Emerson A6500 Series is a distributed control system (DCS) platform deployed extensively across global heavy industry, including petrochemical complexes, nuclear power stations, offshore platforms, and crude oil refineries. Engineered for continuous-process environments where unplanned downtime carries direct financial and safety consequences, the A6500 architecture is characterized by its modular backplane design, deterministic scan cycles, and redundant communication pathways. Installations of this series remain active across facilities in North America, the Middle East, and Southeast Asia, many of which have operational lifespans exceeding 20 years. The installed base creates sustained demand for original spare parts, tested replacement modules, and lifecycle extension services.

The Evolution of A6500 Architecture

The A6500 Series was introduced as part of Emerson's mid-generation DCS expansion, bridging the gap between earlier relay-logic control panels and fully digital fieldbus architectures. Early revisions of the platform relied on parallel backplane communication with fixed-address I/O mapping. Subsequent hardware revisions introduced enhanced diagnostics, higher-density I/O cards, and improved EMI shielding to meet IEC 61000 compliance requirements for industrial environments.

As the platform matured, Emerson introduced firmware-level compatibility layers allowing A6500 I/O modules to interface with newer supervisory systems without full rack replacement. This compatibility layer is critical for facilities operating mixed-generation control infrastructure. The A6500 Series is now classified as a mature/end-of-active-production platform. Emerson has transitioned primary development resources to successor architectures (DeltaV series), but the A6500 installed base remains large enough that third-party lifecycle support — including tested spare modules, repair services, and long-term inventory holding — is commercially viable and operationally necessary.

A6500 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson A6500 Series, organized by functional category. Each module is described by its primary control function.

Relay & Output Cards

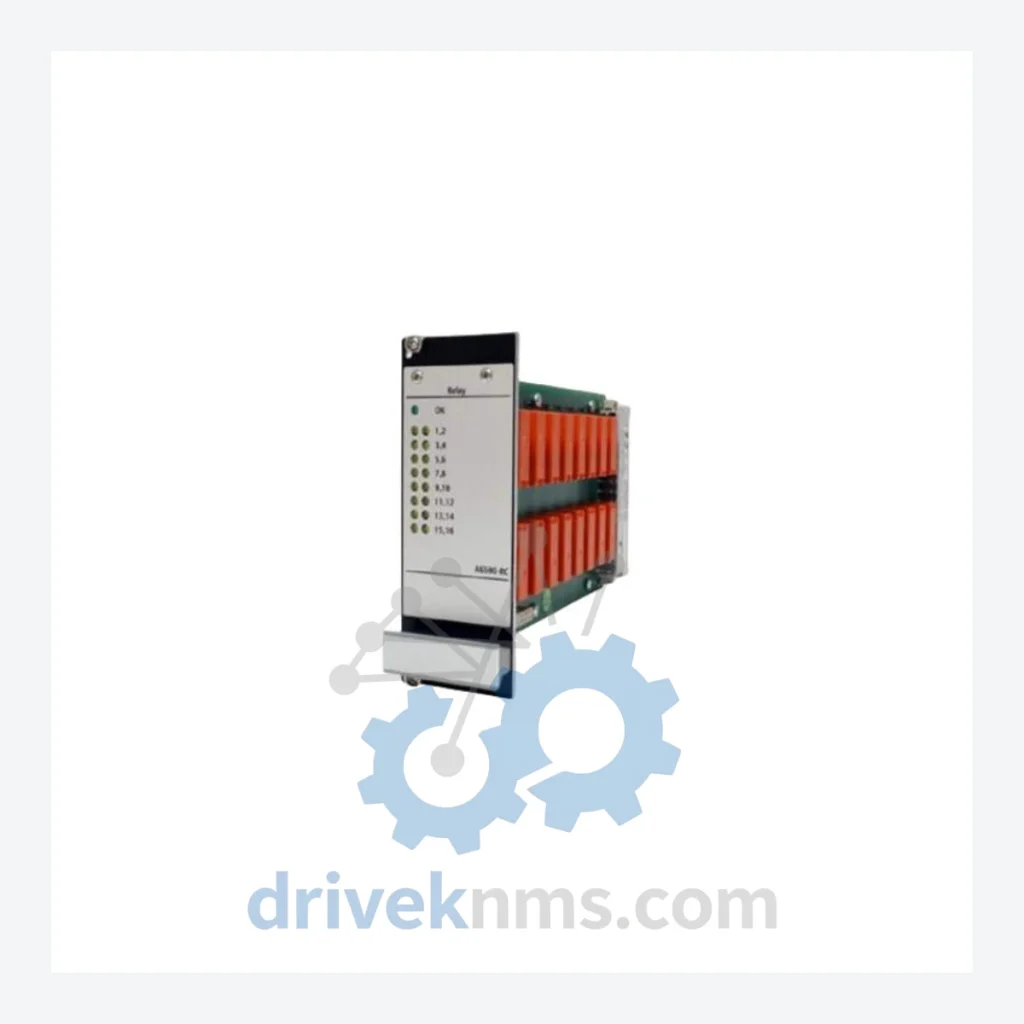

• A6500-RC: System relay card; provides isolated relay contact outputs for discrete control switching in process interlocks.
• A6500-RO: Relay output module; 8-channel dry-contact relay outputs rated for 24VDC/120VAC switching loads.
• A6500-DO: Digital output card; 16-channel solid-state discrete output module for high-cycle actuator control.

Digital Input Modules

• A6500-DI: Digital input module; 16-channel 24VDC discrete input card for field device status monitoring.
• A6500-DI32: High-density digital input card; 32-channel configuration for large-scale field I/O consolidation.
• A6500-DIS: Digital input module with diagnostics; includes open-wire and short-circuit detection per channel.

Analog Input/Output Modules

• A6500-AI: Analog input module; 8-channel 4–20mA/0–10V configurable input for process variable acquisition.
• A6500-AI16: 16-channel analog input card; supports HART pass-through for smart transmitter communication.
• A6500-AO: Analog output module; 8-channel 4–20mA output for control valve and positioner setpoint signals.
• A6500-AO8: Compact 8-channel analog output card; isolated outputs for multi-loop control applications.

CPU & Controller Modules

• A6500-CPU: Main processor module; executes control logic, manages I/O scan, and handles peer-to-peer communication.
• A6500-CPUX: Extended CPU module; increased memory capacity and faster scan rate for complex regulatory control strategies.
• A6500-CM: Communication module; manages data exchange between the A6500 rack and supervisory SCADA/DCS networks.

Power Supply Modules

• A6500-PS: Primary power supply module; 24VDC regulated output for rack backplane and I/O module power distribution.
• A6500-PSR: Redundant power supply module; hot-standby configuration for uninterrupted rack power in critical process applications.

Communication & Network Adapters

• A6500-NET: Network interface card; supports Modbus RTU/TCP and proprietary Emerson peer bus protocols.
• A6500-PB: PROFIBUS DP adapter module; enables integration of A6500 racks into PROFIBUS field device networks.

Sourcing Hard-to-Find & Obsolete A6500 Parts

DriveKNMS maintains a dedicated inventory program for Emerson A6500 Series components that are no longer available through standard distribution channels. As Emerson has shifted active support to the DeltaV platform, procurement of A6500 modules through OEM channels has become increasingly constrained. Lead times from authorized distributors for certain A6500 I/O cards and CPU modules now extend to 26–52 weeks, or result in no-quote responses.

DriveKNMS addresses this gap through three sourcing channels: direct surplus acquisition from decommissioned plant assets, long-term inventory holding agreements with industrial facilities undergoing DCS migration, and a global network of verified industrial parts brokers. All sourced units are subject to incoming inspection before entering available inventory. Customers operating facilities with A6500 installations are advised to establish a standing spare parts agreement to mitigate the risk of single-point-of-failure module shortages during unplanned outages.

Quality Control for the A6500 Range

The A6500 Series presents specific testing challenges due to its backplane-dependent communication architecture. Modules cannot be fully validated in isolation; functional verification requires a compatible rack and backplane assembly that replicates the original installation environment.

DriveKNMS employs the following test protocol for A6500 modules: (1) Visual inspection for physical damage, corrosion on edge connectors, and component-level anomalies. (2) Power-on self-test (POST) verification using a dedicated A6500 test rack with known-good backplane. (3) Channel-level functional testing for all I/O modules — each input and output channel is exercised at rated signal levels. (4) Communication bus integrity check for CPU and network modules, verifying correct peer bus addressing and data throughput. (5) Burn-in cycle of minimum 24 hours under simulated load conditions to screen for latent component failures. Modules that pass all five stages are issued a test certificate and shipped with anti-static packaging and humidity indicator cards.
