Emerson DeltaV Series: Comprehensive Module Range and Technical Overview

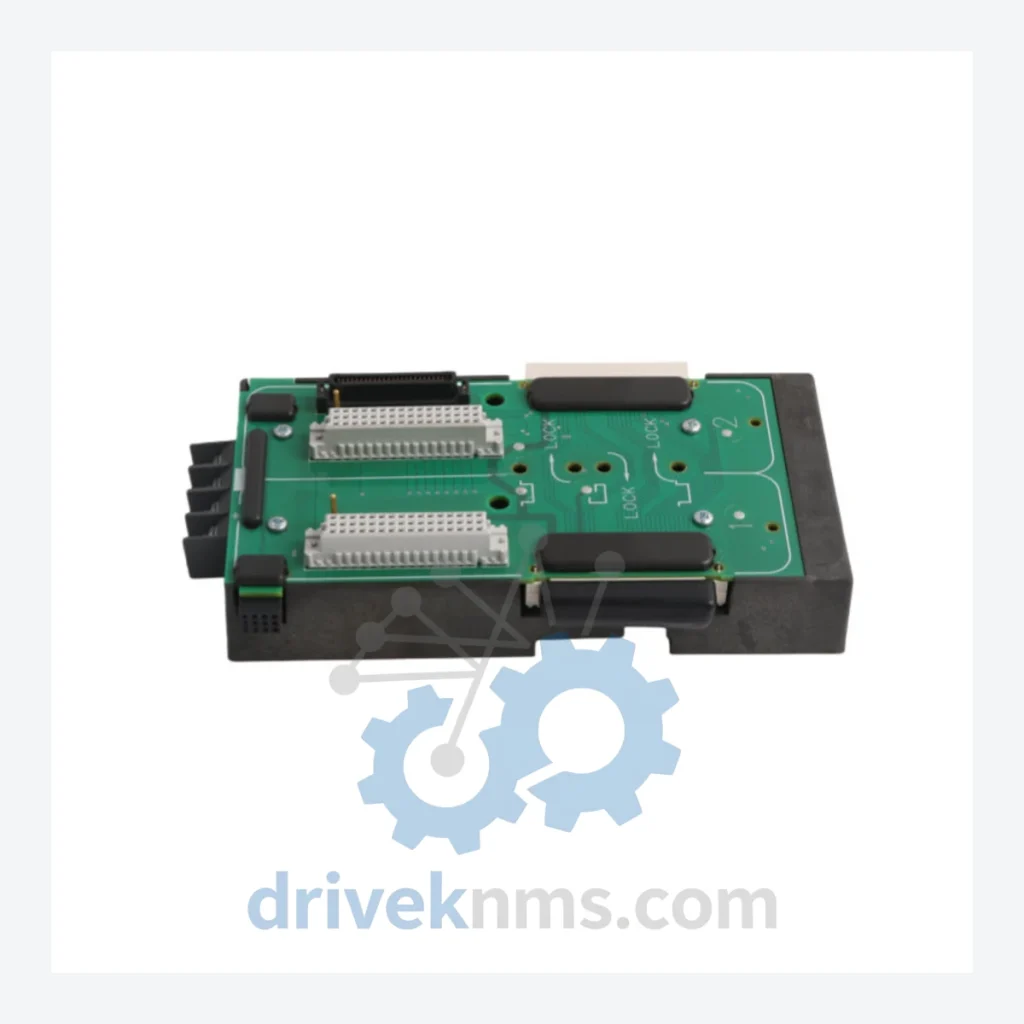

The Emerson DeltaV distributed control system (DCS) is deployed across critical heavy-industry infrastructure worldwide, including petrochemical complexes, nuclear power facilities, offshore platforms, and refinery process units. The DeltaV architecture is characterized by its scalable, node-based I/O subsystem, where each controller node communicates over a redundant Ethernet backbone. The KJ-prefix module family — encompassing power controllers, I/O carriers, CPU modules, and communication adapters — forms the operational core of DeltaV installations commissioned from the late 1990s through the present generation (DeltaV v14+). The KJ4001X1-BA3 / 12P3378X032 / VE3051C0 power controller is a field-proven component within this ecosystem, providing regulated DC bus power to DeltaV I/O subsystem carriers in continuous-process environments.

The Evolution of DeltaV Architecture

The DeltaV platform was introduced by Fisher-Rosemount (subsequently acquired by Emerson Electric in 1999) as a successor to the RS3 and PROVOX legacy DCS families. The initial hardware generation (Series 1, circa 1996–2002) established the KJ-prefix module taxonomy and the 2-wire FOUNDATION Fieldbus / HART integration model. The Series 2 hardware revision (2003–2010) introduced the KL-prefix redundant controller modules and expanded the I/O carrier density. The current generation supports DeltaV Electronic Marshalling (CHARM I/O), which decouples field wiring from module type at the marshalling cabinet level.

Compatibility considerations are significant for maintenance engineers: KJ-series I/O modules are not hot-swappable with KL-series carriers without firmware alignment. Power supply modules such as the KJ4001X1-BA3 must match the carrier rail voltage specification (24 VDC nominal) and are not interchangeable across incompatible backplane revisions. Sites running DeltaV v7.x through v11.x on original KJ hardware face increasing obsolescence risk as Emerson has transitioned primary support to the CHARM and DeltaV Live interface generations.

DeltaV Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked components within the Emerson DeltaV KJ/KL/KS module family. Each entry reflects a discrete hardware function within the DeltaV node architecture.

Power Supply & Power Controllers

• KJ4001X1-BA3 (12P3378X032 / VE3051C0): 24 VDC I/O subsystem power controller, single-wide carrier mount, current-limited output for DeltaV node rails.
• KJ4002X1-BA1: Redundant power supply module for DeltaV controller node, provides failover DC bus continuity.
• KJ4003X1-BA1: Power conditioner module for high-density I/O carrier assemblies, 8-slot backplane compatible.

CPU / Controller Modules

• KJ2003X1-BA1: DeltaV MD-Plus controller, 100 Mbps dual-port Ethernet, supports up to 750 I/O channels.
• KJ2005X1-BA1: DeltaV MD controller, standard process control node, 250 I/O channel capacity.
• KJ3001X1-BA1: DeltaV SD-Plus safety controller, SIL 2 rated, IEC 61511 compliant.
• KJ3002X1-BA1: DeltaV SZ safety logic solver, SIL 3 capable, redundant voting architecture.

Analog Input (AI) Modules

• KJ3221X1-BA1: 8-channel 4–20 mA HART analog input, individually isolated, supports HART pass-through to host.
• KJ3222X1-BA1: 8-channel AI module with enhanced HART 7 support and advanced diagnostics.
• KJ3224X1-BA1: 4-channel high-accuracy AI, ±0.05% span accuracy, for precision measurement loops.

Analog Output (AO) Modules

• KJ3241X1-BA1: 8-channel 4–20 mA HART analog output, loop-powered, supports valve positioner diagnostics.
• KJ3242X1-BA1: 4-channel AO with HART 7, enhanced loop integrity monitoring.

Digital Input (DI) Modules

• KJ3011X1-BA1: 8-channel 24 VDC discrete input, wet contact, 3 ms filter time.
• KJ3012X1-BA1: 16-channel DI, 24 VDC, high-density marshalling cabinet applications.

Digital Output (DO) Modules

• KJ3031X1-BA1: 8-channel 24 VDC discrete output, sourcing type, 0.5 A per channel.
• KJ3032X1-BA1: 8-channel relay output, SPDT contacts, 2 A @ 30 VDC, for motor starter and solenoid valve control.

Communication & Network Adapters

• KJ4022X1-BA1: DeltaV FOUNDATION Fieldbus H1 interface card, 2-segment, intrinsically safe barrier compatible.
• KJ4023X1-BA1: PROFIBUS DP master interface, supports up to 125 slave devices per segment.
• KJ4024X1-BA1: Modbus RTU/TCP gateway module for legacy device integration.

Sourcing Hard-to-Find & Obsolete DeltaV Parts

Emerson has formally discontinued active manufacturing support for the original KJ-series hardware generation. End-of-life notifications were issued progressively between 2015 and 2022, with last-time-buy windows now closed for the majority of KJ-prefix power supply and I/O modules. For facilities operating DeltaV systems on extended maintenance contracts or under capital expenditure freeze, sourcing verified surplus and refurbished KJ-series components is the primary strategy for sustaining uptime without full system migration.

DriveKNMS maintains a dedicated inventory of KJ-series modules including the KJ4001X1-BA3 (12P3378X032 / VE3051C0), sourced from decommissioned plant assets, authorized surplus channels, and factory-refurbished stock. All units are catalogued by revision level and firmware compatibility to prevent cross-generation mismatches. DriveKNMS provides lifecycle extension support including cross-reference matching (OEM part number to Emerson catalog number), revision-level verification, and compatibility confirmation against the customer's DeltaV system version.

Quality Control for the DeltaV Range

DeltaV KJ-series modules incorporate a multi-layer backplane bus architecture with proprietary Emerson communication protocols between the controller node and I/O carriers. Standard bench testing is insufficient for validating bus integrity and power rail regulation in these modules. DriveKNMS applies a structured test protocol specific to the DeltaV hardware family:

• DC bus output voltage verification under rated load (24 VDC ±2% for power controller modules).
• Backplane communication handshake validation using DeltaV Diagnostics software in offline simulation mode.
• HART signal integrity test on all AI/AO channels using a calibrated HART communicator (375 or 475 field communicator).
• Thermal cycling test: 0°C to 60°C operating range, 30-minute soak at each extreme, per IEC 60068-2-14.
• Visual and X-ray inspection of solder joints on high-density BGA components (applicable to CPU modules).
• Firmware version audit and documentation prior to shipment, with revision label affixed to module housing.

For sourcing inquiries, cross-reference requests, or bulk spare parts orders for Emerson DeltaV KJ-series modules:

• Email: sale@driveknms.com
• WhatsApp: +86 18359293191
• Web: driveknms.com

© 2026 DriveKNMS. All trademarks belong to their respective owners. Specifications are for reference only and subject to change without notice. Verify all parameters against official documentation before installation.
