Emerson KJ4005X1 Series: Comprehensive Module Range and Technical Overview

The Emerson KJ4005X1 series is a family of carrier and extender modules integral to the DeltaV distributed control system (DCS) platform. Deployed across critical process industries — including petroleum refining, chemical manufacturing, nuclear power generation, and LNG terminals — the KJ4005X1 series provides the physical backplane infrastructure that interconnects I/O modules, controllers, and power supplies within DeltaV cabinets. Its standardized bus architecture supports deterministic communication between field devices and the DeltaV controller network, making it a foundational component in facilities where continuous uptime is a regulatory and operational requirement. Global installed base estimates place DeltaV systems in thousands of process plants across North America, Europe, and Asia-Pacific, with the KJ4005X1 carrier family present in the majority of mid-to-large scale DeltaV installations commissioned between 2000 and 2020.

The Evolution of KJ4005X1 Architecture

The KJ4005X1 series was introduced as part of Emerson's DeltaV S-series hardware generation, succeeding earlier DeltaV hardware that used proprietary rack formats incompatible with modern I/O density requirements. The original KJ4005X1 baseline design established an 8-slot carrier form factor with a passive backplane bus, enabling hot-swap I/O module replacement without process interruption — a critical feature for continuous process plants operating under ISA-84 safety standards.

Over successive hardware revisions, Emerson introduced right-extender and left-extender variants (e.g., KJ4005X1-BC1, KJ4005X1-BC2) to allow cabinet expansion beyond the base carrier footprint, enabling I/O counts to scale without additional controller nodes. Later revisions addressed EMI shielding improvements and enhanced bus termination reliability, particularly relevant in high-vibration environments such as offshore platforms. As DeltaV migrated toward the Electronic Marshalling architecture (CHARM I/O), the KJ4005X1 series remained in production to support legacy S-series I/O installations, with Emerson committing to long-term spare parts availability through its lifecycle support programs. Sites running DeltaV versions 10.x through 14.x continue to depend on KJ4005X1 carriers as the primary I/O mounting infrastructure.

KJ4005X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Emerson KJ4005X1 series. Each entry includes a concise functional description for rapid identification during maintenance planning and procurement.

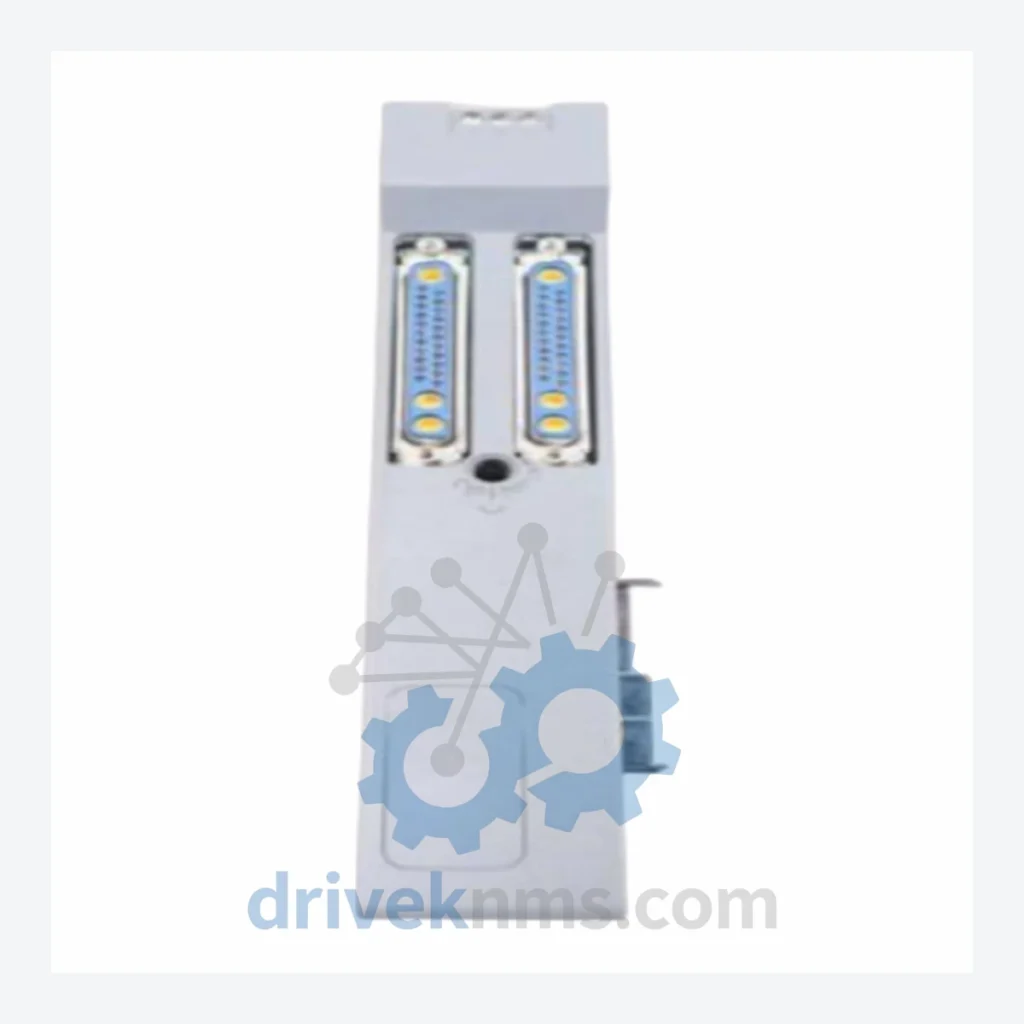

KJ4005X1-BC1: 8-slot right extender carrier for DeltaV S-series I/O expansion.
KJ4005X1-BC2: 8-slot left extender carrier, mirror configuration to BC1 for cabinet layout flexibility.
KJ4005X1-BC3: Standard 8-slot base carrier, primary mounting point for DeltaV S-series I/O modules.
KJ4005X1-BE1: End terminator carrier, provides bus termination at the final position in an extended carrier chain.
KJ4005X1-BH1: High-density carrier variant supporting increased I/O module count per cabinet row.
KJ4005X1-BH2: Revised high-density carrier with updated backplane bus for improved signal integrity.
KJ4005X1-BK1: Carrier with integrated power distribution rail, reduces external wiring in compact cabinet configurations.
KJ4005X1-BK2: Dual-rail power carrier supporting redundant 24VDC supply inputs for critical loop applications.
KJ4005X1-CA1: Controller carrier module, provides mounting and bus interface for DeltaV MD/MD Plus controllers.
KJ4005X1-CH1: Horizontal-mount carrier for installations requiring alternative cabinet orientation.
KJ4005X1-CK1: Compact carrier for space-constrained enclosures, reduced slot count with full bus compatibility.
KJ4005X1-NA1: Network adapter carrier, interfaces DeltaV I/O bus with plant-level Ethernet network segments.
KJ4005X1-NA2: Dual-port network adapter carrier supporting redundant Ethernet paths for fault-tolerant topologies.
KJ4005X1-HA1: High-availability carrier with built-in redundancy switching for mission-critical control loops.
KJ4005X1-HK1: High-availability carrier with integrated power keying, prevents incorrect module insertion in redundant configurations.
KJ4005X1-SA1: Safety-rated carrier compliant with IEC 61511 SIL 2 requirements for safety instrumented system (SIS) applications.

Sourcing Hard-to-Find & Obsolete KJ4005X1 Parts

The KJ4005X1 series has entered the mature phase of its product lifecycle. While Emerson continues to supply select variants through its standard distribution channels, a growing number of specific sub-models — particularly early-revision extender carriers and specialized network adapter variants — are no longer available through OEM channels on standard lead times. DriveKNMS maintains a dedicated inventory of KJ4005X1 series modules sourced from decommissioned DeltaV systems, controlled plant shutdowns, and certified surplus channels.

Quality Control for the KJ4005X1 Range

KJ4005X1 series carriers present specific quality verification challenges due to their passive backplane bus design and multi-point connector arrays. DriveKNMS applies a structured inspection and functional test protocol to all KJ4005X1 units prior to shipment:

Visual Inspection: All backplane connector pins are inspected under magnification for deformation, oxidation, and contamination. Carrier PCB surfaces are examined for trace damage, delamination, and evidence of thermal stress from prior installation environments.

Bus Continuity Testing: Each carrier undergoes point-to-point bus continuity verification across all slot positions using calibrated test fixtures that replicate the DeltaV I/O module connector footprint. This confirms signal path integrity across the full carrier width before functional testing.

Functional Validation: Where applicable, carriers are installed in a live DeltaV test bench running a validated system image. I/O modules are inserted and removed across all slots to confirm hot-swap bus behavior and verify that the carrier correctly enumerates modules to the DeltaV controller without communication errors.

Power Rail Verification: For power-integrated variants (BK1, BK2, HA1, HK1), supply rail voltage levels and current capacity are measured under load conditions representative of a fully populated carrier.

All test results are documented and accompany each shipment. Units that do not pass any stage of the protocol are quarantined and not offered for sale.
