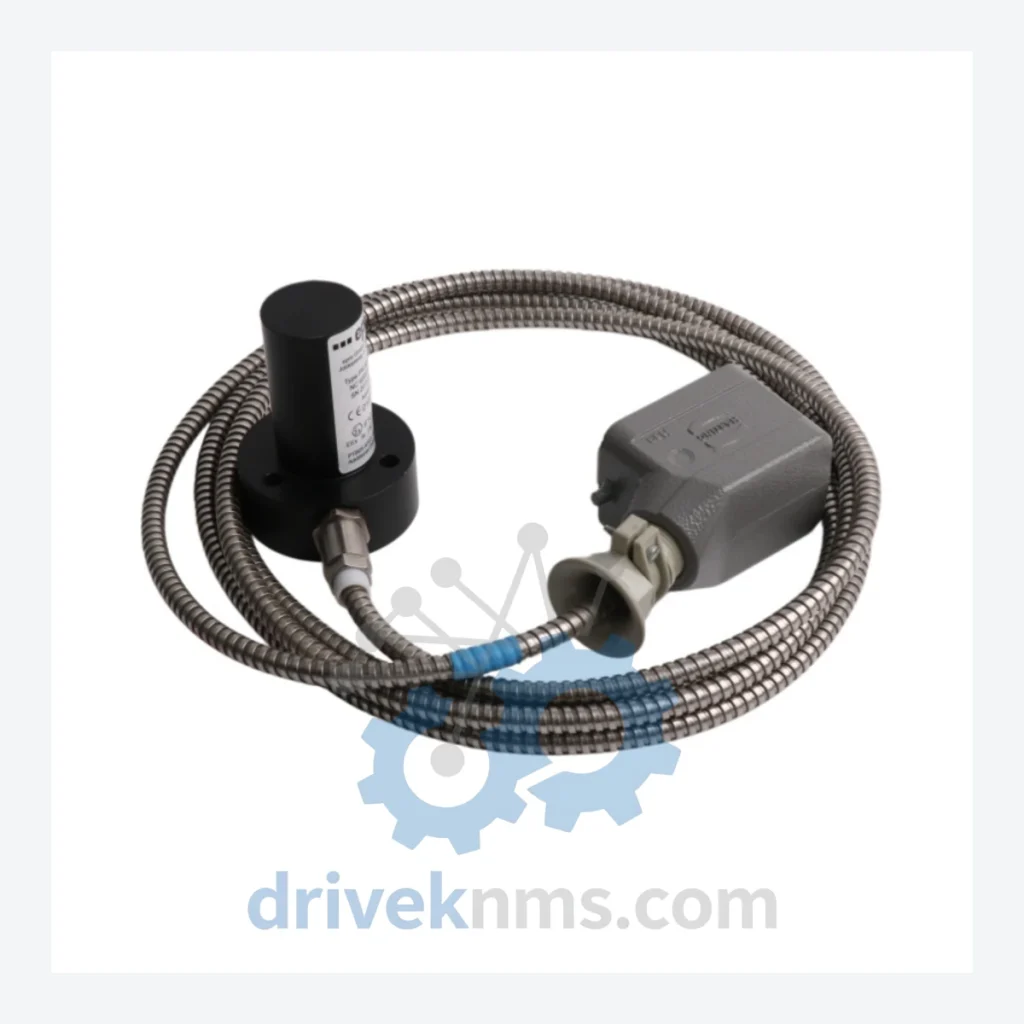

Emerson PR9268/601-000 Electrodynamic Sensor – Obsolete CSI Machinery Health Spare Part

Technical Dossier

Product Details And Specifications

Emerson PR9268/601-000 Electrodynamic Sensor – Obsolete CSI Machinery Health Spare Part

When the PR9268/601-000 fails in a running plant, the conversation shifts immediately from maintenance cost to capital expenditure. A single obsolete sensor module, if left unresourced, can force a full migration of the vibration monitoring architecture — a project that routinely runs into hundreds of thousands of dollars in engineering hours, new hardware procurement, loop re-commissioning, and production downtime. DriveKNMS holds verified physical stock of the Emerson PR9268/601-000, a component that has been out of active production for years and is no longer available through standard distribution channels. For plant engineers and reliability managers who have built their predictive maintenance programs around this sensor, sourcing a direct replacement is the only rational path to protecting that investment.

Technical Specifications

Note: Electrical parameters such as sensitivity (mV/mm/s), frequency range, and connector pinout are not published here to prevent misapplication. Contact our technical team to confirm compatibility with your specific installation before ordering.

Solving the Discontinued Hardware Crisis

The Emerson CSI Machinery Health platform has been a backbone of rotating equipment monitoring in refineries, power generation facilities, and heavy manufacturing for over two decades. The PR9268/601-000 electrodynamic sensor is a field-mounted component in that architecture — it converts mechanical shaft or bearing vibration into an electrical signal that feeds directly into the CSI data collector or online monitor. There is no software patch, no firmware update, and no configuration workaround that compensates for a failed sensor at the measurement point. The hardware must be replaced with a physically compatible unit.

Emerson's transition toward newer sensor families and the AMS 9420 wireless platform has left a large installed base of CSI 2130 and CSI 6500 systems without a clear upgrade path that preserves existing sensor wiring, mounting hardware, and calibration data. For a plant running 40 to 200 monitored measurement points on this architecture, a forced migration is not a maintenance decision — it is a capital project requiring board-level approval, extended lead times, and a period of reduced monitoring coverage during transition. The PR9268/601-000 eliminates that scenario entirely. A direct drop-in replacement restores full monitoring capability within the time it takes to swap the sensor and verify the signal at the collector.

Plants that have adopted a strategic spare parts inventory for this sensor report extending their CSI-based predictive maintenance programs by 5 to 10 years beyond the original equipment end-of-life date. The economics are straightforward: the cost of holding two or three spare PR9268/601-000 units is measured in hundreds of dollars. The cost of an unplanned migration, triggered by a single sensor failure during a critical production run, is measured in a different order of magnitude entirely.

Condition & Reliability Assurance

Every PR9268/601-000 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before it leaves our facility. This process was developed specifically for obsolete electromechanical and sensor components where age-related degradation follows predictable failure modes.

Step 1 – Electrolytic Capacitor Assessment: Internal capacitors are inspected for signs of electrolyte leakage, bulging, or ESR drift. Capacitors showing any degradation are replaced with specification-matched components before the unit proceeds.

Step 2 – Firmware and Configuration Verification: Where applicable, internal firmware version and any stored calibration parameters are verified against known-good reference data for the PR9268/601-000 variant.

Step 3 – Pin and Connector Inspection: All electrical contacts, connector pins, and cable termination points are examined under magnification for oxidation, corrosion, mechanical deformation, or contamination. Affected contacts are cleaned or replaced.

Step 4 – Functional Signal Output Test: The sensor is bench-tested to confirm it produces a clean, stable output signal within the expected response characteristics for the electrodynamic measurement principle.

Step 5 – Physical and Environmental Integrity Check: Housing, sealing, and mounting surfaces are inspected for cracks, impact damage, or seal degradation that could compromise performance in an industrial field environment.

Units that do not pass all five steps are quarantined and not offered for sale. Each shipped unit is accompanied by a test record.

Key Features for System Maintenance

The PR9268/601-000 is a direct mechanical and electrical replacement for the original factory-installed unit. It requires no re-programming of the CSI data collector, no reconfiguration of the AMS database measurement point, and no modification to existing cable runs or junction boxes. Maintenance personnel familiar with the original installation can complete a swap during a standard planned outage window.

This matters operationally because the alternative — integrating a non-OEM sensor with different sensitivity, connector type, or signal conditioning — requires engineering review of every affected measurement point, recalibration of alarm and alert thresholds, and validation testing before the monitoring system can be trusted again. That process consumes engineering resources and introduces a period of uncertainty in the reliability program. A genuine PR9268/601-000 replacement avoids all of it.

For reliability engineers managing asset life extension programs, maintaining a small buffer stock of this sensor also eliminates the risk of an unplanned outage caused by sensor failure between scheduled maintenance intervals. The sensor is a low-cost insurance policy against a high-consequence event.

FAQ

What warranty applies to an obsolete part like the PR9268/601-000?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 12-month warranty on new surplus stock. Warranty covers verified functional failure under normal operating conditions. Contact us before installation if you have questions about your specific application.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through traceable industrial surplus channels. Physical markings, housing construction, and internal component layout are verified against reference units. We do not source from unverified secondary markets. Documentation of origin is available on request for critical applications.

Should I buy more than one unit?
For any plant running more than five measurement points on CSI Machinery Health hardware, holding a minimum of two PR9268/601-000 spares is a defensible maintenance strategy. The part is no longer manufactured. Current stock across the global surplus market is finite and decreasing. Procurement cost today is substantially lower than emergency sourcing cost during an unplanned failure event.

Can this sensor be used with non-Emerson data collectors?
The PR9268/601-000 is an electrodynamic velocity sensor with a standard industrial output. Compatibility with third-party data collectors depends on the input impedance and signal conditioning of the receiving instrument. Contact our technical team with your collector model for a compatibility assessment before ordering.
