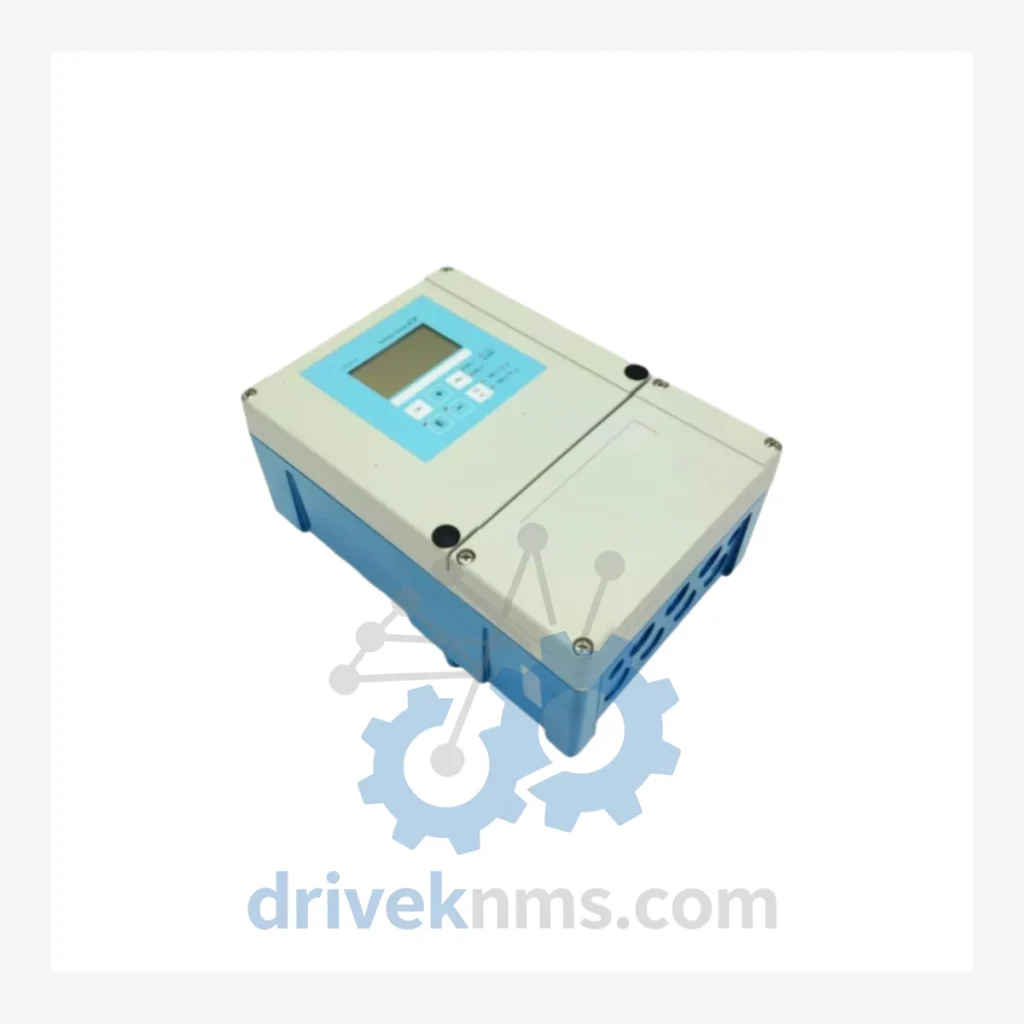

Endress+Hauser CPM253-MR0005 Transmitter – Obsolete Liquiline Spare Part

Technical Dossier

Product Details And Specifications

Endress+Hauser CPM253-MR0005 Transmitter – Obsolete Liquiline Spare Part

Technical Specifications

Note: Electrical parameters such as supply voltage range, output signal specification, and Ex certification class are not reproduced here to avoid transcription error. Please request the original datasheet or confirm against your existing loop documentation before installation.

Solving the Discontinued Hardware Crisis

The CPM253-MR0005 belongs to the Liquiline CM253 platform, a compact transmitter series that became a standard field instrument in water treatment, pharmaceutical manufacturing, and chemical process plants throughout the 2000s and 2010s. Its combination of multi-parameter sensor compatibility and compact DIN-rail or field-mount housing made it a preferred choice for dense instrument clusters where panel space was constrained.

Endress+Hauser has since migrated its transmitter portfolio to the CM44x and CM442 families. While technically superior, these successors are not drop-in replacements for CPM253-series installations. Signal wiring, sensor connector types, and configuration software differ. A plant running 20 or 30 CPM253 units across multiple process areas faces a replacement program measured in weeks of engineering time, not hours.

The practical alternative — one that plant engineers and asset managers have used for decades in analogous situations — is strategic spare parts procurement. Sourcing two to four CPM253-MR0005 units now, at current secondary-market prices, provides a maintenance buffer that can extend the operational life of the existing measurement infrastructure by five to ten years. During that window, capital planning for a controlled, phased migration can proceed on the plant's schedule rather than in response to an unplanned failure.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk if not properly evaluated. DriveKNMS applies a five-stage inspection protocol to every CPM253-MR0005 unit before it is offered for sale:

• Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in transmitter power supply boards. Each unit is inspected for bulging, electrolyte leakage, and ESR deviation from specification.
• Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatibility requirements for the CM253 platform. Units with corrupted or unverifiable firmware are not offered.
• Terminal and Pin Corrosion Inspection: All I/O terminals, sensor connectors, and communication ports are examined under magnification for oxidation, pitting, and mechanical deformation.
• Power-On Functional Test: Where test infrastructure permits, units are powered and basic output signal integrity is confirmed.
• Cosmetic and Mechanical Inspection: Housing integrity, display condition (where applicable), and mounting hardware are assessed. Any unit with structural damage that could compromise field installation is rejected.

Key Features for System Maintenance

• Drop-in replacement: The CPM253-MR0005 installs directly into existing CPM253-series mounting positions. No field wiring changes, no sensor re-termination, no loop re-addressing.
• No reprogramming required: Configuration parameters stored in the original unit can be re-entered via the existing operator interface. There is no requirement for new software licenses or engineering workstation access.
• Avoids engineering rework costs: Substituting a like-for-like spare eliminates the change management documentation, loop re-validation, and P&ID revision that a platform migration would require.
• Preserves regulatory compliance: In pharmaceutical and food-grade process environments, a like-for-like replacement avoids triggering a formal change control process under GMP or HACCP frameworks.
• Supports long-term inventory planning: DriveKNMS can advise on multi-unit procurement strategies for plants seeking to establish a 5–10 year maintenance buffer for CPM253-series installations.

How do I confirm the unit is genuine and not counterfeit?
All units are sourced through documented supply channels. Serial numbers are recorded and, where OEM verification tools remain accessible, cross-checked. Unit classification (NOS, Tested Serviceable, or Refurbished) is disclosed in writing before purchase.

Should I buy more than one unit?
For any process-critical measurement point running CPM253-MR0005 transmitters, holding a minimum of one cold spare per five installed units is a reasonable baseline. For single-line critical applications, a one-to-one spare ratio is advisable. Secondary-market availability of discontinued parts decreases over time; procurement cost today is lower than it will be in 18–24 months.
