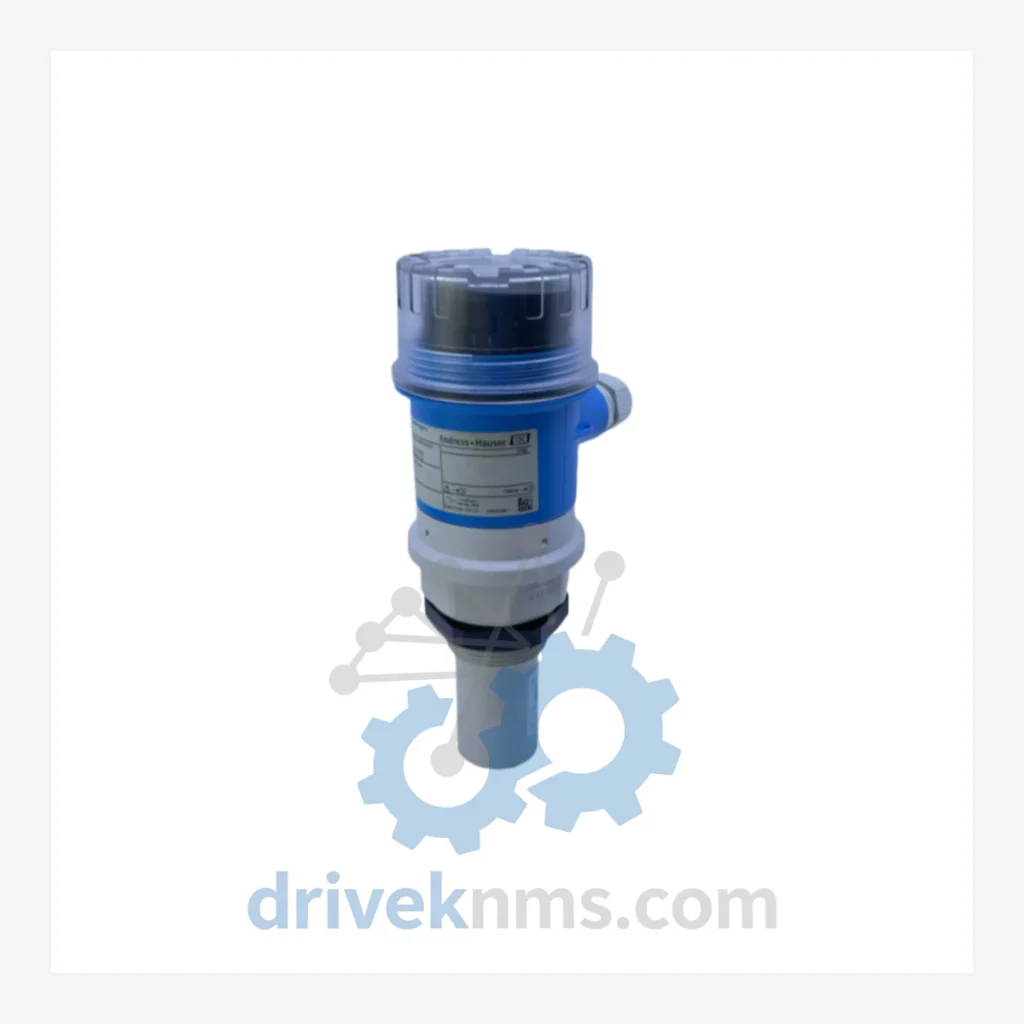

Endress+Hauser FMU30-AAHEAAGGF Radar Level Transmitter – Obsolete Micropilot M Spare Part

Technical Dossier

Product Details And Specifications

Endress+Hauser FMU30-AAHEAAGGF Radar Level Transmitter – Obsolete Micropilot M Spare Part

When the FMU30-AAHEAAGGF fails on your production line, the clock starts immediately. This unit belongs to Endress+Hauser's Micropilot M series — a radar level measurement platform widely deployed across chemical processing, water treatment, and bulk storage facilities throughout the 2000s and 2010s. Endress+Hauser has since transitioned its radar level portfolio to the Micropilot FMR and FMR5x generations, leaving FMU30-series users with a narrowing window of hardware availability.

A forced migration away from a legacy level measurement system is not a simple instrument swap. It typically triggers a cascade of engineering costs: loop reconfiguration, HART or PROFIBUS network re-mapping, safety instrumented system (SIS) revalidation, and in many cases, full P&ID revision. Conservative estimates place the total cost of a single unplanned transmitter-driven system upgrade at USD $80,000–$400,000 per loop, depending on process criticality and regulatory environment. DriveKNMS holds verified physical stock of the FMU30-AAHEAAGGF. Securing a spare now is not a procurement decision — it is an asset protection decision.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Micropilot M FMU30 series was engineered for demanding continuous level measurement in liquids and slurries. Its 5.8 GHz radar frequency and compact antenna design made it a standard specification in industries where contact measurement methods were impractical — aggressive chemicals, high-pressure vessels, and hygienic applications.

The core problem facing plant engineers today is not the instrument itself, but the system architecture built around it. DCS and SCADA configurations commissioned with FMU30 transmitters have been tuned, validated, and certified over years of operation. The HART device description (DD) files, alarm setpoints, and SIL-rated safety loops are all calibrated to the FMU30's specific behavior and output characteristics. Substituting a current-generation transmitter is not a plug-and-play exercise. It requires re-commissioning, re-validation, and in safety-critical applications, a formal management of change (MOC) process that can take months.

For plant managers operating under capital expenditure constraints, the calculus is straightforward: one FMU30-AAHEAAGGF spare, properly stored, can defer a six-figure system upgrade by 5 to 10 years. The strategy of maintaining a buffer stock of critical discontinued instruments — sometimes called a lifetime buy — is standard practice in industries where unplanned downtime carries regulatory or safety consequences. DriveKNMS specializes in sourcing exactly these components from decommissioned plants, authorized distributor overstock, and verified secondary market channels.

Condition & Reliability Assurance

Discontinued hardware sourced from secondary markets carries inherent risk. DriveKNMS applies a structured 5-step quality assurance protocol to every FMU30-AAHEAAGGF unit before shipment:

• Step 1 – Visual and Mechanical Inspection: Full enclosure examination for physical damage, corrosion, and seal integrity. Process connection threads and flange faces are checked against manufacturer tolerances.
• Step 2 – Electrolytic Capacitor Assessment: Internal inspection targets electrolytic capacitors — the component most susceptible to age-related degradation in radar electronics. Units showing capacitor bulge, leakage, or ESR deviation are rejected.
• Step 3 – Firmware Version Verification: Device firmware is read and documented. Compatibility with the customer's existing HART host or DCS is confirmed prior to shipment where technically feasible.
• Step 4 – Pin and Terminal Integrity Check: All electrical terminals, HART communication pins, and ground connections are inspected for oxidation, corrosion, and mechanical deformation.
• Step 5 – Functional Power-On Test: Where test infrastructure permits, units are powered and output signal integrity (4–20 mA loop) is verified under controlled conditions.

Each unit ships with a condition report. Stock is classified as New (sealed OEM), New Open Box, or Refurbished — clearly stated on the invoice.

Key Features for System Maintenance

• Drop-in replacement: The FMU30-AAHEAAGGF is a direct hardware substitute for failed units of the same order code. No antenna re-sizing, no process connection modification.
• No reprogramming required: HART device parameters can be cloned from the failed unit using a HART communicator (e.g., Endress+Hauser Field Xpert or standard 475 communicator), eliminating re-commissioning from scratch.
• Avoids engineering rework costs: Retaining the original transmitter model preserves existing loop documentation, P&ID accuracy, and SIS validation records — avoiding the MOC process entirely in most cases.
• Long-term storage ready: Units intended for strategic spare stock are packaged with desiccant and sealed for extended shelf life.

FAQ

Q: What warranty applies to discontinued parts?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all refurbished units. New sealed units carry a 12-month warranty. Warranty terms are confirmed in writing at the time of order.

Q: How do I confirm the unit is genuine and not counterfeit?
A: All units are sourced from traceable channels. Serial numbers are cross-referenced against Endress+Hauser's product structure where possible. Full documentation of the unit's provenance is provided upon request.

Q: Should I buy more than one unit?
A: For any process-critical application where the FMU30-AAHEAAGGF is the sole level measurement device, holding a minimum of one cold spare is standard risk management practice. For multi-loop installations, a 10–15% spare ratio is a defensible position when presenting to plant management. Stock of discontinued parts is finite and non-replenishable — availability today does not guarantee availability in 12 months.

Q: Can you source other FMU30 order codes?
A: Yes. Contact us with your full order code or nameplate data. DriveKNMS maintains an active sourcing network for the broader Micropilot M series.
