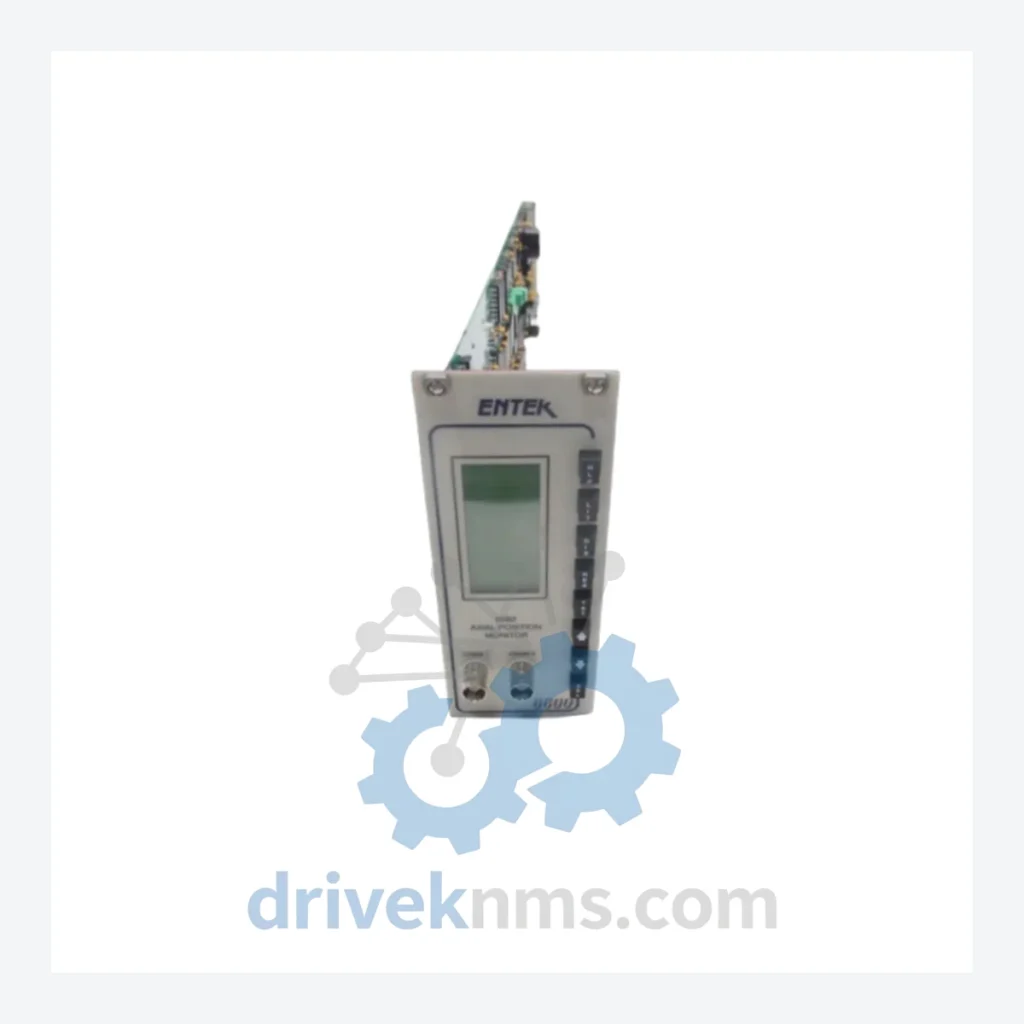

ENTEK 6682 EC6682 Axial Position Monitor – Obsolete Bently Nevada Compatible Spare Part

Technical Dossier

Product Details And Specifications

ENTEK 6682 EC6682 Axial Position Monitor – Obsolete Spare Part for Legacy Machinery Protection Systems

When an axial position monitor fails in a running plant, the consequences are not limited to a single machine. In turbomachinery and rotating equipment applications, the axial position channel is a last line of defense against catastrophic thrust bearing failure. The ENTEK 6682 (EC6682) is a discontinued module that was widely deployed in legacy machinery protection racks during the 1990s and 2000s. Replacing the entire monitoring system to accommodate a modern substitute can cost a plant anywhere from several hundred thousand to several million dollars — engineering hours, new rack infrastructure, recalibration, and production downtime included. DriveKNMS holds verified physical stock of this module. For plant managers facing the choice between a full system overhaul and a targeted spare part replacement, the calculus is straightforward.

Technical Specifications

Note: Electrical parameters such as input voltage range, output signal type, and relay configurations are not published here to prevent misapplication. Contact our technical team for verified datasheet and wiring documentation before installation.

Solving the Discontinued Hardware Crisis

The ENTEK 6000 series was a standard platform for machinery protection in petrochemical, power generation, and heavy industrial facilities. When ENTEK was absorbed into larger corporate structures and product lines were rationalized, field support for the 6000 series was progressively withdrawn. Plants that built their protection philosophy around this platform now face a hard reality: the OEM no longer supplies replacement modules, and the installed base of racks cannot simply be swapped out without a full engineering project.

The EC6682 axial position monitor occupies a specific slot in this architecture. Axial position measurement is not a function that can be left unmeasured or bridged with a generic transmitter. Regulatory requirements in many jurisdictions mandate continuous thrust monitoring on critical rotating equipment. A missing or failed axial channel forces either a machine shutdown or an unsafe bypass — neither is acceptable during normal operations.

Sourcing a verified replacement EC6682 from a specialist supplier like DriveKNMS allows a plant to restore full protection coverage without triggering a capital project. This is not a workaround. It is the operationally correct response to a supply chain gap created by product discontinuation.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

The economic argument for extending the life of a legacy machinery protection system is rarely made with sufficient rigor. Consider the full cost of a forced migration: new rack hardware, new transducer interfaces, new software licensing, engineering design, FAT/SAT testing, and the production loss during cutover. For a mid-sized compressor train, this figure routinely exceeds USD 500,000. For a multi-train facility, the number scales accordingly.

A structured spare parts strategy changes this equation. The core principle is straightforward: identify every module in your protection rack that has no current-production equivalent, determine the mean time between failures for each, and hold sufficient stock to cover two to three failure cycles. For a module like the EC6682, which operates in a relatively stable thermal environment and carries no mechanical wear components, a single verified spare held in climate-controlled storage can provide coverage for a decade or more.

The following practices define a defensible asset extension program:

• Bill of Materials Audit: Document every module by part number and revision. Cross-reference against current OEM availability. Flag anything with no active replacement path.
• Criticality Ranking: Not every module carries equal risk. Axial position monitors on high-speed rotating equipment sit at the top of the criticality hierarchy. Prioritize procurement accordingly.
• Verified Sourcing Only: Counterfeit and substandard parts are a documented problem in the obsolete parts market. Require traceability documentation and functional test records from any supplier.
• Storage Protocol: Electrostatic-sensitive modules require anti-static packaging and controlled humidity. Improper storage degrades components before they are ever installed.
• Scheduled Inspection: Even stored spares benefit from periodic inspection. Electrolytic capacitors in particular have a finite shelf life and should be evaluated before installation after extended storage.

Plants that execute this strategy consistently report that they can defer major control system migrations by five to ten years without compromising safety or reliability. The capital freed by that deferral can be directed toward projects with a clearer return on investment.

Condition & Reliability Assurance

DriveKNMS applies a five-step quality process to all obsolete modules before shipment:

1. Visual and Physical Inspection: Full examination of PCB surfaces, connector pins, and housing integrity. Any evidence of corrosion, burn marks, or mechanical damage results in rejection.
2. Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in electronics that have been in storage or service for extended periods. Each unit is evaluated for capacitor condition, and units with suspect capacitors are either recapped or rejected.
3. Firmware and Revision Verification: Where applicable, firmware version and hardware revision are documented and matched against the customer's existing rack configuration to confirm compatibility.
4. Pin and Connector Integrity Check: Backplane connector pins are inspected for oxidation, bending, and contact resistance. Corroded pins are cleaned to specification or the unit is rejected.
5. Functional Verification: Units are powered and tested against known-good reference signals where test equipment permits. Test records are retained and available upon request.

Key Features for System Maintenance

• Drop-in replacement: The EC6682 installs directly into the existing ENTEK 6000-series rack slot with no mechanical modification.
• No reprogramming required: Configuration is carried by the rack or by DIP switch settings on the module itself. Replacement does not require software intervention or a controls engineer on-site.
• No engineering redesign: The existing transducer wiring, relay outputs, and communication interfaces remain unchanged. Downtime is limited to the physical swap and functional verification.
• Immediate operational restoration: A verified replacement module restores full axial protection coverage within a planned maintenance window, avoiding the extended outage associated with a system migration.

FAQ

What warranty applies to an obsolete part like the EC6682?
DriveKNMS provides a 90-day warranty covering functional performance under normal operating conditions. Extended warranty arrangements are available for volume purchases — contact us to discuss.

How do I know the unit is genuine and not a counterfeit?
We provide documentation of the unit's sourcing history where available, along with our internal test records. We do not sell units that fail our five-step QA process. If you require third-party inspection or additional traceability documentation, we can accommodate that request.

Should I buy more than one unit?
For critical protection channels on equipment that runs continuously, holding at least one verified spare on-site is standard practice. Given that the EC6682 is no longer manufactured, availability in the secondary market will decrease over time. Procurement now, while verified stock exists, is the lower-risk position.

Can you supply other modules from the ENTEK 6000 series?
Yes. DriveKNMS maintains inventory across multiple legacy machinery protection platforms. Contact us with your full rack bill of materials and we will advise on availability.
