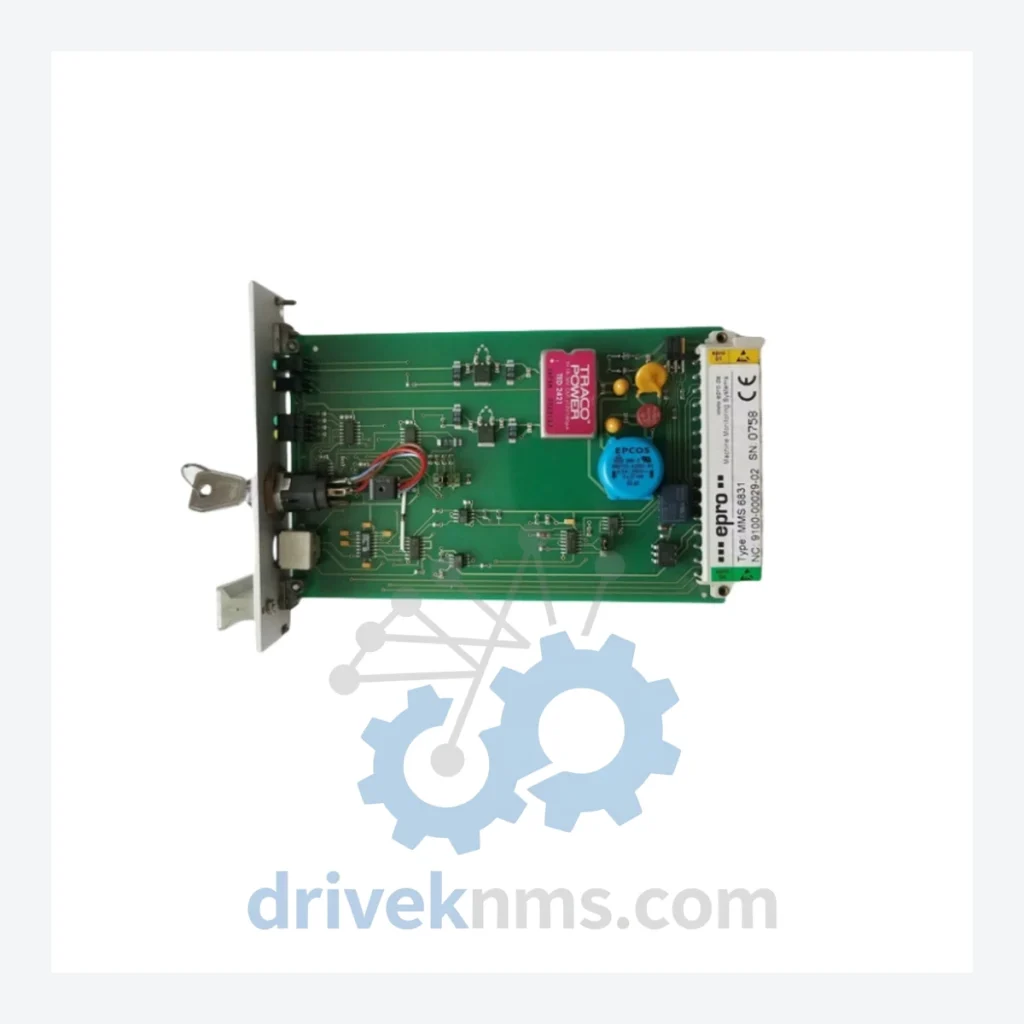

EPRO MMS Series Modules MMS6831 Interface Card

Technical Dossier

Product Details And Specifications

EPRO MMS Series Technical Notes

The Evolution of MMS Architecture

The EPRO MMS series originated as a modular, rack-mounted instrumentation platform designed to replace hardwired relay-based protection systems in the 1980s and 1990s. Early generations focused on single-channel vibration and speed monitoring with analog 4–20 mA output signals. As industrial automation matured, the MMS architecture evolved to incorporate digital communication buses, enabling integration with SCADA and DCS platforms via Modbus RTU, PROFIBUS DP, and later OPC-UA.

The transition from MMS 3000 to MMS 6000 series marked a significant architectural shift: the introduction of a backplane-based modular chassis allowed mixed I/O configurations within a single rack, reducing panel footprint and wiring complexity. The MMS 6000 series introduced dedicated interface cards (such as the MMS6831) to bridge the monitoring rack with external control systems, replacing the need for discrete signal converters. Later revisions added redundant power supply options and hot-swap capability for critical applications. Many MMS 3000-generation modules have reached end-of-life (EOL) status, while MMS 6000 series modules remain in active production or extended support phases. Compatibility between generations requires careful verification of backplane bus versions and firmware revisions.

MMS Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the EPRO MMS series. Modules are classified by functional category:

Interface & Communication Cards

• MMS6831: Serial interface card for DCS/SCADA integration via RS-232/RS-485; supports Modbus RTU protocol.
• MMS6820: PROFIBUS DP communication module; enables MMS rack integration into Siemens and ABB DCS environments.
• MMS6840: Ethernet TCP/IP interface card; supports Modbus TCP and OPC-DA for modern network-based monitoring.

Vibration Monitoring Modules

• MMS6110: Single-channel radial vibration monitor; 4–20 mA output, relay trip output, API 670 compliant.
• MMS6120: Dual-channel radial vibration monitor; simultaneous X/Y measurement for shaft orbit analysis.
• MMS6160: Axial position (thrust) monitor; monitors shaft axial displacement with configurable alert/danger setpoints.
• MMS6210: Speed and phase reference monitor; tachometer input, keyphasor signal conditioning.
• MMS6220: Dual-channel speed monitor with overspeed trip relay; suitable for turbine protection applications.
• MMS6312: Seismic (casing) vibration monitor; velocity transducer input, 4–20 mA and relay outputs.
• MMS6350: Differential expansion monitor; measures relative thermal growth between rotor and casing.
• MMS6360: Absolute shaft expansion monitor; single-channel, eddy-current probe compatible.

Power Supply Modules

• MMS6004: 24 VDC rack power supply module; redundant-capable, fits standard MMS 6000 chassis.
• MMS6005: Redundant power supply module; hot-swap design for continuous operation in critical installations.

I/O and Signal Conditioning

• MMS6706: Analog output module; converts monitoring data to 4–20 mA signals for DCS historian input.
• MMS6720: Digital I/O module; 8-channel discrete input/output for relay logic and external trip integration.
• MMS6730: Relay output module; 6-channel form-C relay outputs for alarm and trip annunciation.

Chassis / Rack

• MMS6002: 19-inch rack chassis, 6-slot; standard mounting frame for MMS 6000 series modules.
• MMS6003: 19-inch rack chassis, 12-slot; expanded configuration for large machinery trains.

Sourcing Hard-to-Find & Obsolete MMS Parts

For the MMS6831 specifically, DriveKNMS stocks verified units sourced from decommissioned plant equipment, each subject to full functional testing prior to dispatch. Customers operating aging DCS integration architectures who cannot migrate to Ethernet-based interfaces (MMS6840) rely on continued availability of the MMS6831 for like-for-like replacement. DriveKNMS provides documentation support, including original EPRO datasheet references and configuration guides, to facilitate drop-in replacement without system reconfiguration.

Quality Control for the MMS Range

EPRO MMS modules employ a proprietary backplane bus architecture for inter-module communication within the rack chassis. Quality verification for these modules requires test procedures that go beyond standard power-on checks. DriveKNMS applies the following protocol to all MMS series units:

• Backplane bus integrity test: Each module is seated in a reference MMS chassis and backplane communication signals are verified against OEM-specified voltage and timing parameters.
• Channel-level functional test: For monitoring modules, each input channel is stimulated with calibrated signals (eddy-current probe simulation, velocity transducer simulation) and output accuracy is verified against factory calibration tolerances.
• Communication protocol verification: For interface cards including the MMS6831, serial communication is tested end-to-end using a Modbus master simulator to confirm register mapping, baud rate compatibility, and error-free data transmission.
• Relay output test: All relay outputs are cycled under load to verify contact integrity and setpoint response.
• Thermal soak: Units are operated at rated temperature for a minimum of 4 hours to screen for latent component failures.
• Visual and component inspection: PCB inspection for corrosion, capacitor condition, and connector pin integrity is performed under magnification prior to final packaging.
