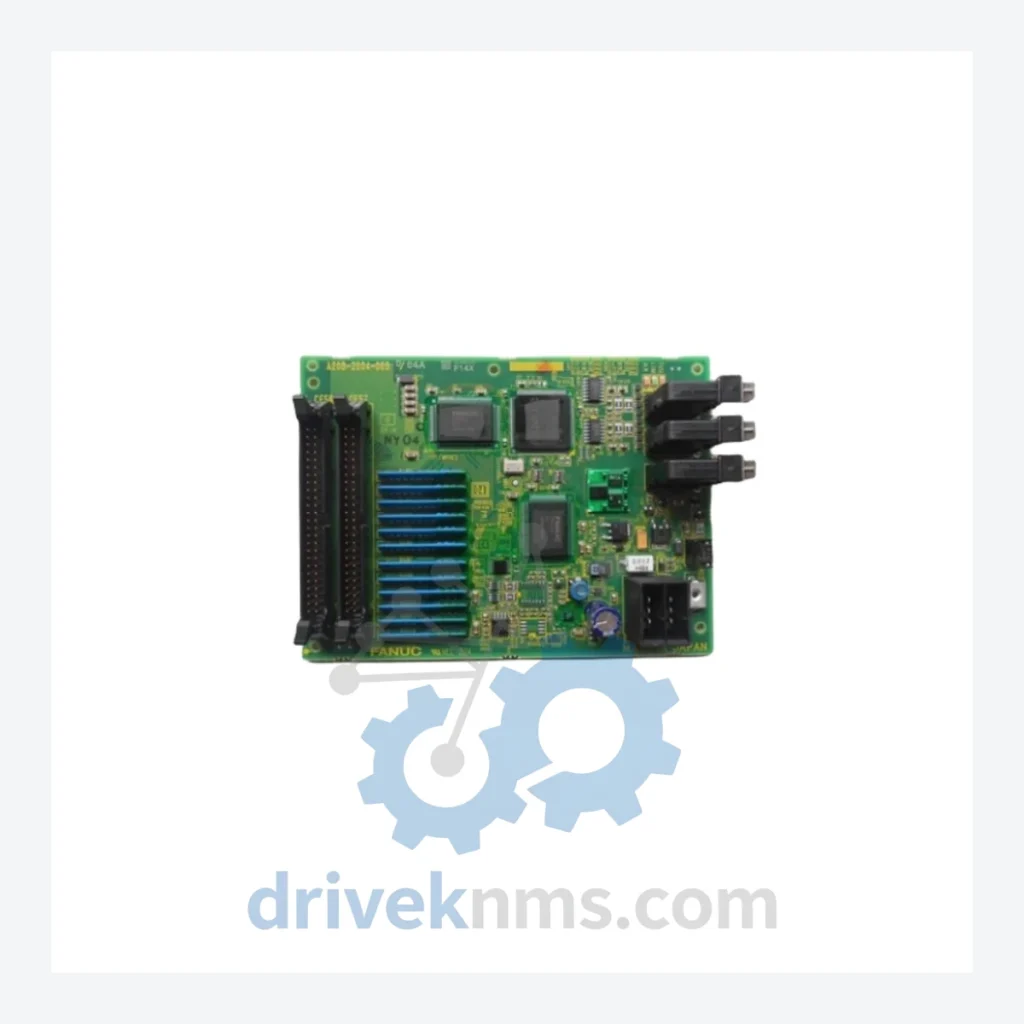

FANUC A20B-2200-0321 Control Board – Obsolete Series 16/18/21 Spare Part

When a FANUC A20B-2200-0321 control board fails on your shop floor, the clock starts immediately. This board is the processing core of FANUC Series 16, 18, and 21 CNC controllers — systems that remain deeply embedded in precision machining, aerospace component manufacturing, and automotive body-in-white lines worldwide. A single failed unit does not just halt one machine. It threatens the entire production cell it anchors.

Replacing a legacy CNC system is not a weekend project. A full controller migration — including new servo drives, spindle amplifiers, operator panels, re-parameterization, and re-certification — routinely costs USD $80,000 to $250,000 per machine, before accounting for lost production time, retraining, and integration engineering. For a multi-machine cell, that figure multiplies accordingly. The A20B-2200-0321 is discontinued by FANUC. DriveKNMS holds verified physical stock of this board, sourced through controlled industrial channels.

Technical Specifications

Note: Electrical parameters such as supply voltage and bus specifications are system-dependent and vary by machine configuration. DriveKNMS does not publish unverified parameters. Contact us with your machine model for compatibility confirmation.

Solving the Discontinued Hardware Crisis

The FANUC Series 16, 18, and 21 CNC platform was deployed at industrial scale from the late 1980s through the 2000s. Tens of thousands of these controllers remain in active production service globally. FANUC officially discontinued support and spare parts supply for these series, leaving plant maintenance teams with no OEM channel for critical boards like the A20B-2200-0321.

The A20B-2200-0321 is not a peripheral component. It is the central processing unit of the controller. Without it, the machine cannot execute programs, communicate with servo amplifiers, or respond to operator input. There is no workaround, no firmware patch, and no software substitute. The board must be replaced with an identical or verified-compatible unit.

For plant managers facing system retirement pressure, the calculus is straightforward: sourcing a replacement board at a fraction of the cost of a new controller preserves capital, avoids a disruptive re-engineering project, and keeps proven production processes intact. Machines running on FANUC Series 16/18/21 have known cycle times, established tooling offsets, and operator familiarity built over years. That institutional knowledge has real monetary value — and it disappears the moment the controller is replaced.

Extending the operational life of a FANUC Series 16/18/21 machine by 5 to 10 years through targeted spare parts procurement is a defensible asset management strategy. The key is securing critical boards — particularly the main CPU board — before failure occurs, not after. A single unplanned downtime event caused by an unavailable spare part typically costs more than a multi-year supply of critical spares.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all obsolete control boards before shipment:

• Step 1 – Electrolytic Capacitor Assessment: All electrolytic capacitors are inspected for bulging, leakage, and ESR degradation. Boards with aged capacitors undergo recapping using equivalent-specification components before release.
• Step 2 – Firmware Version Verification: The firmware revision on the board is documented and cross-referenced against known compatible versions for Series 16/18/21 applications. Boards with unverifiable or corrupted firmware are quarantined.
• Step 3 – Pin and Connector Inspection: All edge connectors, ribbon cable sockets, and board-to-board connectors are examined under magnification for oxidation, corrosion, bent pins, and cold solder joints.
• Step 4 – PCB Trace and Component Integrity Check: The board surface is inspected for cracked traces, burnt components, and physical damage from prior installation or storage conditions.
• Step 5 – Functional Bench Test (where applicable): Boards are powered in a controlled test environment to verify basic initialization and communication response prior to packaging.

Each board is individually packaged in anti-static shielding and shipped in protective foam-lined cartons to prevent transit damage.

Key Features for System Maintenance

• Drop-in Replacement: The A20B-2200-0321 installs directly into the existing controller chassis using the original mounting hardware and connectors. No mechanical modification is required.
• No Reprogramming Required: Machine parameters, tool offsets, and program memory reside in the CNC's battery-backed SRAM or external storage — not on the control board itself. Board replacement does not erase this data when performed correctly.
• No Engineering Redesign: Unlike a controller migration, a board-level replacement preserves the existing servo drive configuration, spindle interface, and I/O mapping. The machine returns to its pre-failure state.
• Immediate Availability: DriveKNMS maintains physical stock. Lead time is days, not months. For facilities operating on tight production schedules, this distinction is operationally significant.
• Cost Containment: Board-level repair and replacement is the lowest-cost intervention available for a failed CNC controller. It avoids the capital expenditure, downtime, and operational disruption of a full system replacement.

FAQ

Q: What warranty applies to an obsolete board like the A20B-2200-0321?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the discontinued status of this part, warranty terms are confirmed in writing at the time of order.

Q: How do I know the board is genuine and not counterfeit?
A: All boards are sourced through traceable industrial channels. FANUC board markings, PCB revision codes, and component date codes are verified during intake inspection. Documentation is available upon request.

Q: Should I purchase more than one unit as a long-term spare?
A: For any machine where the A20B-2200-0321 is the sole controller board and no OEM replacement channel exists, holding at least one cold spare is standard practice in industrial asset management. Given declining market availability, procurement delay increases with each passing year. Facilities with multiple machines on the same platform should evaluate fleet-level spare requirements.

Q: Can you confirm compatibility with my specific machine model before I order?
A: Yes. Provide your machine model, controller serial number, and current board revision, and DriveKNMS will confirm compatibility before order confirmation.
