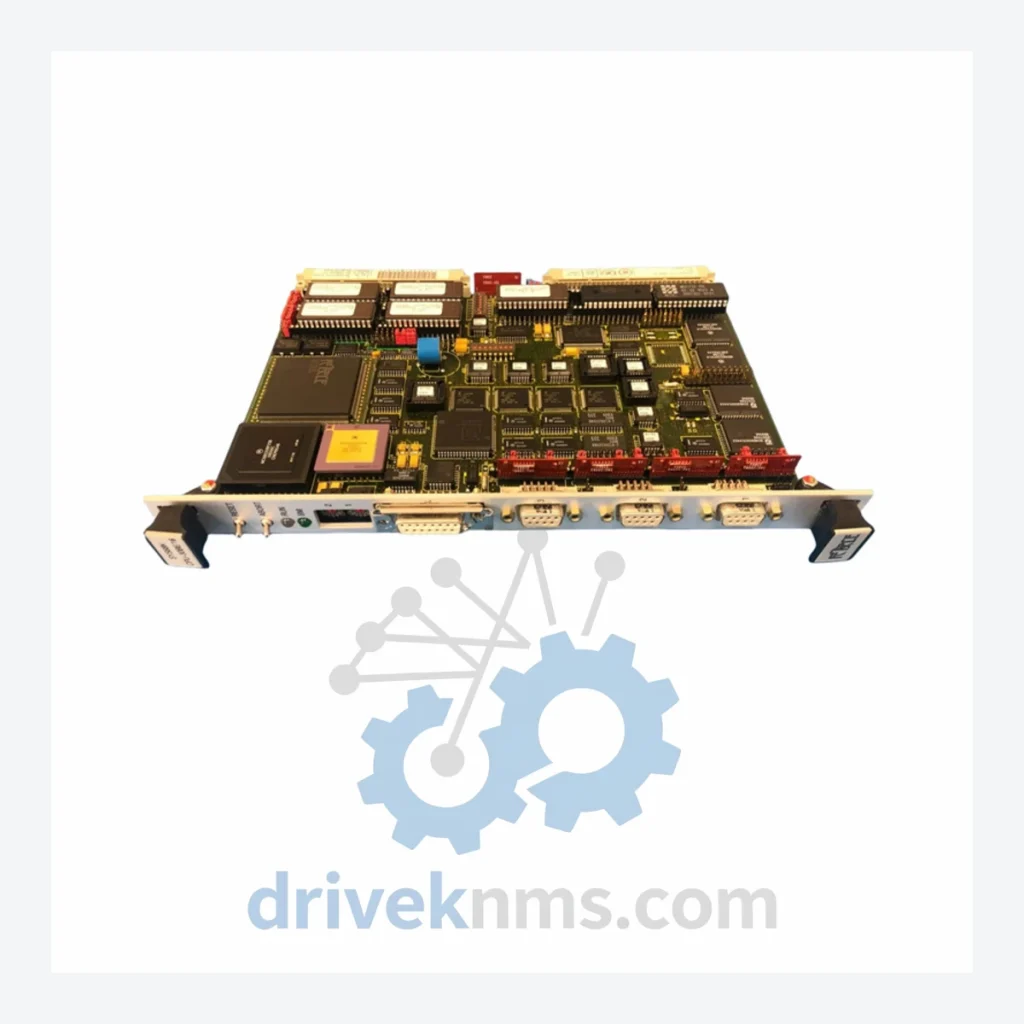

FORCE SYS68K/CPU-30BE16 REV 3 VME CPU Board – Obsolete SYS68K Spare Part

Technical Dossier

Product Details And Specifications

FORCE SYS68K/CPU-30BE16 REV 3 VME CPU Board – Obsolete SYS68K Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS are intentionally omitted. Specifications above are drawn from published FORCE Computers documentation. Buyers requiring full datasheet confirmation should contact us directly.

Solving the Discontinued Hardware Crisis

The SYS68K/CPU-30BE16 was deployed extensively in industrial automation environments during the late 1980s and 1990s — embedded in test systems, process controllers, and real-time data acquisition platforms built on the VMEbus standard. Many of these systems remain operational today, not because replacement is impossible, but because replacement is prohibitively expensive and operationally disruptive.

FORCE Computers ceased production of the SYS68K CPU line years ago. The authorized supply chain has been dry for well over a decade. When a board in this series fails, the facility faces a binary choice: locate a verified replacement unit, or commit to a platform migration that will consume engineering resources for months. There is no middle path.

For plant managers and maintenance engineers operating VME-based infrastructure, the strategic calculus is straightforward. A single verified SYS68K/CPU-30BE16 REV 3 unit, held as a cold spare, eliminates the most catastrophic failure scenario. It converts an unplanned capital event into a scheduled maintenance action. The cost differential between sourcing this board and initiating a system migration is not marginal — it is structural.

How to extend your VME-based automation asset life by 5 to 10 years:

• Maintain a minimum of one cold spare per critical CPU slot. A single board failure should never be the event that forces a platform decision. Holding one verified spare per active CPU position eliminates single-point-of-failure exposure at the hardware level.
• Audit your VME backplane population annually. Identify which boards are approaching end-of-service-life based on operating hours and thermal history. Prioritize sourcing replacements for boards with no known secondary market supply.
• Separate the maintenance budget from the capital budget. Spare part procurement for legacy systems belongs in operational expenditure, not capital planning. This framing makes approval faster and avoids the false equivalence between a spare board purchase and a full system upgrade.
• Document firmware and configuration states before any board swap. For Motorola 68030-based systems, configuration is often stored in battery-backed SRAM. Capture this data before a board reaches failure — not after.
• Engage a specialist supplier with physical inspection capability. Surplus market boards vary significantly in condition. A board that passes visual inspection may still carry degraded electrolytic capacitors or corroded edge connectors. Source only from suppliers who perform functional verification.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all discontinued CPU boards before they are offered for sale. This process is not a formality — it reflects the reality that a board sourced from long-term storage or decommissioned equipment carries specific failure risks that standard visual inspection will not catch.

1. Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in boards of this era. Each unit is inspected for visible bulging, electrolyte leakage, and ESR deviation. Boards with capacitors showing measurable degradation are flagged for recapping before sale or excluded from inventory.
2. Firmware Version Verification: Where firmware version data is accessible, we record and document the installed version. Buyers integrating this board into an existing SYS68K system need to confirm firmware compatibility with their current configuration. We provide this data on request.
3. Pin and Edge Connector Inspection: VMEbus edge connectors are inspected under magnification for oxidation, mechanical deformation, and contact contamination. Boards with connector integrity issues are not offered as functional replacements.
4. Board-Level Functional Check: Where test infrastructure permits, boards are powered and checked for basic operational response. Results are documented and available to buyers.
5. Packaging and ESD Protection: All units are shipped in anti-static packaging with appropriate mechanical protection. Boards are not shipped loose.

Key Features for System Maintenance

• Drop-in replacement: The SYS68K/CPU-30BE16 REV 3 installs directly into a compatible VMEbus slot. No chassis modification, no backplane rewiring.
• No reprogramming required: Configuration is board-resident. Swap the board, restore your configuration backup, and resume operation. There is no requirement to engage a controls engineer for software requalification.
• Avoids engineering reconstruction costs: A platform migration from VMEbus to a current architecture involves hardware procurement, software porting, I/O remapping, and system requalification. This board eliminates that cost entirely for the duration of its service life.
• Preserves validated process configurations: For regulated industries, a board-level replacement within the same hardware platform avoids the revalidation burden that a platform change would trigger.

How do I confirm the board is new or quality-refurbished?
Each unit sold by DriveKNMS is accompanied by an inspection record documenting its condition grade, the checks performed, and any remediation work completed. We do not sell boards as new unless they are factory-sealed with verifiable provenance. Refurbished units are clearly identified as such.

Should I purchase more than one unit?
For any system where the SYS68K/CPU-30BE16 is a critical single point of failure, holding a minimum of two spare units is the operationally sound position. Global supply of this board is finite and declining. Units available today may not be available in 18 months. Facilities with multiple VME chassis running this CPU should treat bulk procurement as a risk management action, not a discretionary purchase.
