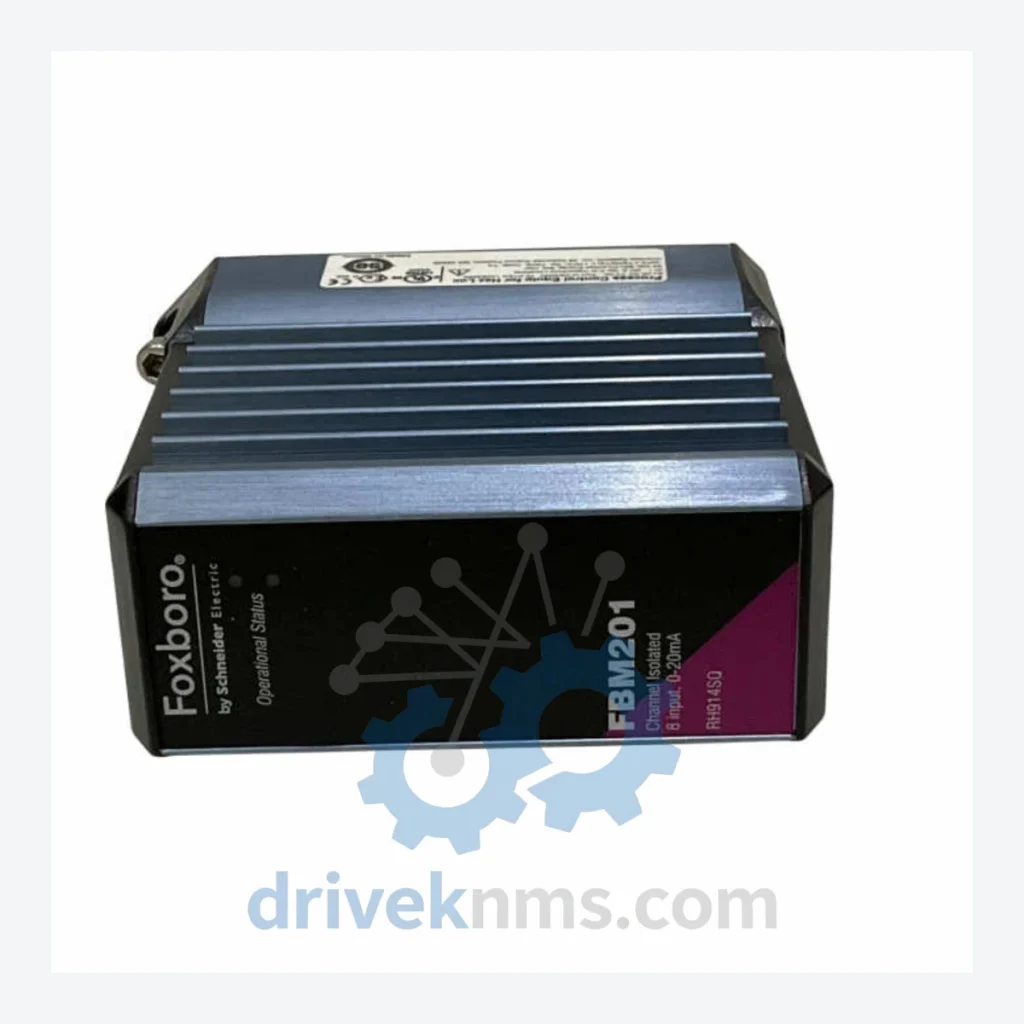

Foxboro FBM201 RH914SQ Input Interface Module – Obsolete I/A Series Spare Part

When a Foxboro FBM201 RH914SQ fails in an operating plant, the consequences extend far beyond a single module replacement. This field bus module (FBM) is a core I/O component within the Foxboro I/A Series Distributed Control System (DCS) — a platform that remains deeply embedded in refining, petrochemical, power generation, and pulp & paper facilities worldwide. A single unplanned shutdown caused by an unavailable spare can cost a mid-sized process plant USD $500,000 to $2,000,000 per day in lost production. A forced migration to a modern DCS platform — driven solely by the inability to source one obsolete module — routinely carries a total project cost of $3,000,000 to $15,000,000, including engineering, commissioning, operator retraining, and production risk. DriveKNMS maintains verified physical stock of the FBM201 RH914SQ. This is not a catalog listing — it is a confirmed inventory position on a part that Foxboro (now Schneider Electric) no longer manufactures.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS. Refer to Foxboro FBM201 product datasheet for full electrical specifications. We do not publish unverified parameters.

Solving the Discontinued Hardware Crisis

The Foxboro I/A Series DCS was installed across thousands of process facilities from the 1980s through the 2000s. Its modular FBM architecture — of which the FBM201 is a key input interface component — was engineered for long service life. The problem is not the system's capability; it is the supply chain reality that follows OEM discontinuation.

Schneider Electric, which acquired Foxboro, has progressively end-of-lifed the original I/A Series hardware catalog. Replacement modules are no longer available through authorized distribution channels. When a plant's installed FBM201 fails, the maintenance team faces a binary choice: locate a verified spare from the secondary market, or initiate a capital project to migrate the affected control loop — or the entire DCS — to a supported platform.

For facilities operating on 5–10 year capital planning cycles, that migration project may not be funded, approved, or executable within the timeframe that a production line can tolerate downtime. The FBM201 RH914SQ sourced from DriveKNMS is not a workaround — it is a deliberate asset protection strategy. Maintaining a buffer stock of two to three units per critical FBM type is standard practice in facilities that have formalized their legacy system lifecycle management. The cost of that buffer stock is measured in thousands of dollars. The cost of the alternative is measured in millions.

How to Extend an Expensive Automation Asset's Life by 5–10 Years

Plant managers facing pressure to retire aging DCS infrastructure often underestimate the viable lifespan extension achievable through disciplined spare parts management. The following strategy applies directly to Foxboro I/A Series installations running FBM201-class modules:

1. Conduct a Critical Spares Audit. Map every FBM type installed across your I/A Series cabinets. Identify which models are obsolete, which have secondary market availability, and which have no remaining supply. The FBM201 RH914SQ falls into the category of obsolete but currently sourceable — that window will not remain open indefinitely.

2. Establish a Minimum Buffer Stock Policy. For any FBM type where a single failure would cause a process shutdown, maintain a minimum of two replacement units on-site. For high-criticality loops (reactor control, safety-adjacent, or single-point-of-failure positions), three units is the defensible minimum.

3. Negotiate Long-Term Supply Agreements with Secondary Market Specialists. Spot-buying obsolete parts during an emergency is the most expensive and least reliable procurement method. Establishing a relationship with a specialist supplier — and reserving stock in advance — reduces both cost and lead time risk.

4. Implement a Scheduled Preventive Replacement Program. Do not wait for failure. FBMs operating in high-temperature or high-humidity environments accumulate stress on electrolytic capacitors and connector pins over time. Scheduled replacement of modules approaching 15–20 years of continuous service, using verified spare units, prevents unplanned outages.

5. Document Firmware and Configuration Baselines. Before any FBM replacement, ensure the existing module's configuration is fully documented. This eliminates the risk of configuration loss during a swap and reduces commissioning time to under one hour for a trained technician.

A facility that executes this five-point program can realistically extend the operational life of a Foxboro I/A Series installation by 5 to 10 years beyond the OEM's support horizon — deferring a multi-million dollar migration project until it aligns with the facility's capital planning cycle rather than being forced by an emergency.

Condition & Reliability Assurance

Every FBM201 RH914SQ unit shipped by DriveKNMS passes a five-stage quality verification process before dispatch:

Stage 1 – Physical Inspection: Full visual examination of the module housing, connector pins, and PCB surface. Any unit showing pin corrosion, mechanical damage, or evidence of prior field repair is rejected at this stage.

Stage 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in FBMs that have been stored for extended periods. Units are assessed for capacitor condition; those showing visible bulging, electrolyte leakage, or ESR anomalies are not shipped.

Stage 3 – Firmware Version Verification: Where accessible, firmware revision is documented and disclosed to the buyer prior to shipment. Compatibility with the target I/A Series system version is confirmed where system information is provided by the customer.

Stage 4 – Functional Bench Test: Modules are powered and tested for basic operational response. Units that do not pass functional testing are not offered for sale.

Stage 5 – Packaging and ESD Protection: All units are packaged in anti-static bags with appropriate cushioning. Shipping conditions are selected to prevent thermal and mechanical stress during transit.

Key Features for System Maintenance

The FBM201 RH914SQ is a direct drop-in replacement for the same part number within the Foxboro I/A Series architecture. No hardware modifications are required. In the majority of installations, no reprogramming of the control strategy is necessary — the replacement module assumes the identity and configuration of the failed unit through the standard I/A Series module replacement procedure.

This means that a trained instrument technician can complete a module swap during a planned maintenance window without requiring a control systems engineer on-site. There is no need for expensive engineering re-work, no risk of control strategy corruption, and no requirement to modify the process database. The total cost of the replacement — module cost plus labor — is a fraction of the cost of a single hour of unplanned production downtime in most process facilities.

FAQ

Q: What warranty is provided on an obsolete FBM201 RH914SQ?
A: DriveKNMS provides a 90-day warranty covering functional defects on all shipped units. Extended warranty terms are available for customers purchasing multiple units or establishing a supply agreement — contact us to discuss terms.

Q: How do I know the unit is new or professionally refurbished, not a field-pulled scrap unit?
A: Every unit passes our five-stage QA process described above. We disclose the condition classification (new surplus or refurbished) for each unit prior to order confirmation. We do not ship units that have not passed functional testing.

Q: Should I buy more than one unit?
A: For any facility where the FBM201 is installed in a critical control loop, purchasing a minimum of two units is the operationally sound decision. Secondary market availability of obsolete FBMs is finite and unpredictable. Once existing global stock is depleted, no further supply will be available from any source. The cost of a second unit today is negligible compared to the cost of an emergency shutdown caused by an unavailable spare in the future.

Q: What is the lead time?
A: In-stock units are dispatched within 1–3 business days of order confirmation. Contact us to confirm current stock status before placing an order.
