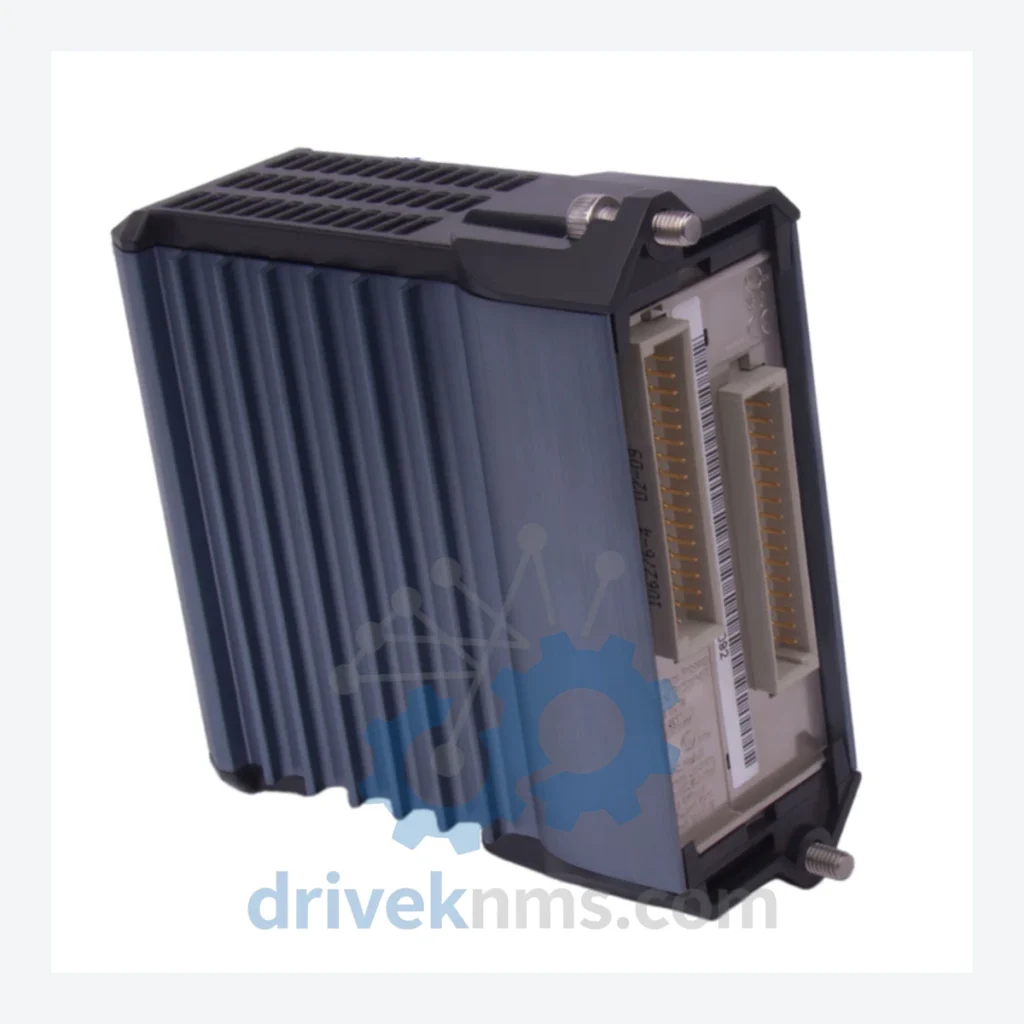

Foxboro FBM Series: Comprehensive Module Range and Technical Overview

The Foxboro FBM (Field Bus Module) Series represents one of the most widely deployed distributed control system (DCS) I/O module families in global heavy industry. Installed across petrochemical complexes, nuclear power stations, crude oil refineries, pulp and paper mills, and offshore platforms, the FBM Series forms the field interface backbone of the Foxboro I/A Series and Foxboro Evo DCS platforms. With a service history spanning over three decades, FBM modules remain active in thousands of critical process control loops worldwide, making long-term spare parts availability a primary operational concern for plant engineers and maintenance managers.

The Evolution of FBM Series Architecture

The FBM Series was introduced as part of the Foxboro I/A Series DCS in the mid-1980s, designed around a distributed, peer-to-peer fieldbus architecture that was architecturally ahead of its time. Early-generation modules such as the FBM01 and FBM02 used dedicated analog input circuitry with 4–20 mA signal conditioning. Through the 1990s, the platform expanded to include thermocouple inputs, RTD inputs, pulse counting, and serial communications, reflecting the growing complexity of process instrumentation.

The transition from the original I/A Series hardware to the Foxboro Evo platform introduced enhanced backplane communication protocols and improved EMI shielding, while maintaining backward compatibility with legacy FBM modules in most configurations. This compatibility layer is critical for brownfield plant upgrades, where replacing the entire I/O infrastructure is cost-prohibitive. However, certain early FBM variants (pre-revision C hardware) are not compatible with Evo CP60/CP270 controllers without firmware bridging, a constraint that plant engineers must verify during system audits.

As of 2026, the majority of first- and second-generation FBM modules are classified as End-of-Life (EOL) by Schneider Electric (current owner of the Foxboro brand). This status elevates the strategic importance of certified aftermarket sourcing for facilities committed to extended plant lifecycles beyond OEM support windows.

FBM Series Full Catalog & Functionalities (SKU List)

The following represents a verified cross-section of the FBM Series module catalog, organized by functional category. All models listed are confirmed members of the Foxboro FBM family.

Analog Input Modules

FBM201: 8-channel analog input, 4–20 mA, HART-capable field interface module.
FBM202: 16-channel analog input module, non-isolated, standard process signals.
FBM203: 8-channel analog input with enhanced signal conditioning for low-level signals.
FBM204: I/O interface module, multi-channel analog input, fieldbus-connected DCS node.
FBM207: 8-channel thermocouple/mV input module, cold junction compensated.
FBM211: 8-channel RTD/resistance input module, 2/3/4-wire configuration support.

Analog Output Modules

FBM205: 8-channel analog output, 4–20 mA, loop-powered field device interface.
FBM206: 4-channel analog output module with enhanced drive capability for valve positioners.

Digital Input Modules

FBM214: 32-channel digital input module, 24 VDC, high-density discrete signal acquisition.
FBM216: 16-channel digital input, 120 VAC, isolated, for high-voltage field contacts.
FBM220: 32-channel digital input, 48 VDC, for telecom and utility plant environments.

Digital Output Modules

FBM215: 32-channel digital output, 24 VDC, solid-state, for solenoid and relay driving.
FBM217: 16-channel digital output, 120 VAC, isolated, for high-power actuator control.

Pulse / Frequency Input Modules

FBM222: 4-channel pulse/frequency input module for flow meter and turbine meter integration.

Serial Communications Modules

FBM230: Modbus RTU/ASCII serial interface module, RS-232/RS-485, multi-drop capable.
FBM232: PROFIBUS DP interface module for third-party field device integration.
FBM237: Foundation Fieldbus H1 interface module, 2-segment, intrinsically safe option available.

Redundancy & Power Modules

FBM242: Redundant I/O module base, hot-standby configuration, bumpless transfer on fault.

Sourcing Hard-to-Find & Obsolete FBM Series Parts

DriveKNMS maintains a dedicated inventory program for Foxboro FBM Series modules that have been discontinued or placed on allocation by Schneider Electric. For facilities operating I/A Series DCS installations with original 1990s-era hardware, the procurement of tested, certified spare modules is a recurring operational challenge. OEM lead times for remaining new-old-stock (NOS) units frequently exceed 26 weeks, and in many cases, the OEM no longer accepts orders for specific revisions.

DriveKNMS sources FBM modules through a controlled supply chain that includes decommissioned plant equipment, certified refurbishment programs, and verified distributor networks. Each unit is individually serialized, and provenance documentation is available upon request for regulated industries including nuclear and pharmaceutical. Priority sourcing is available for emergency plant shutdowns with expedited inspection and dispatch.

Quality Control for the FBM Series Range

FBM Series modules incorporate complex backplane communication logic and multi-channel analog front-end circuitry that requires function-specific test procedures beyond standard power-on verification. DriveKNMS applies the following test protocol to all FBM units processed through its facility:

Each module undergoes visual inspection for capacitor degradation, PCB trace corrosion, and connector pin integrity — failure modes common in modules with 15+ years of field service. Analog input and output channels are individually calibrated against NIST-traceable reference standards, with channel-to-channel isolation verified at rated voltage. Digital I/O modules are tested under simulated field load conditions to confirm switching thresholds and output drive current. Fieldbus communication modules (FBM230, FBM232, FBM237) are tested on a live I/A Series backplane segment to verify protocol handshake, address resolution, and data throughput. All modules are subjected to a 48-hour burn-in cycle prior to release. Test records are retained for a minimum of 7 years and are available for customer audit.
