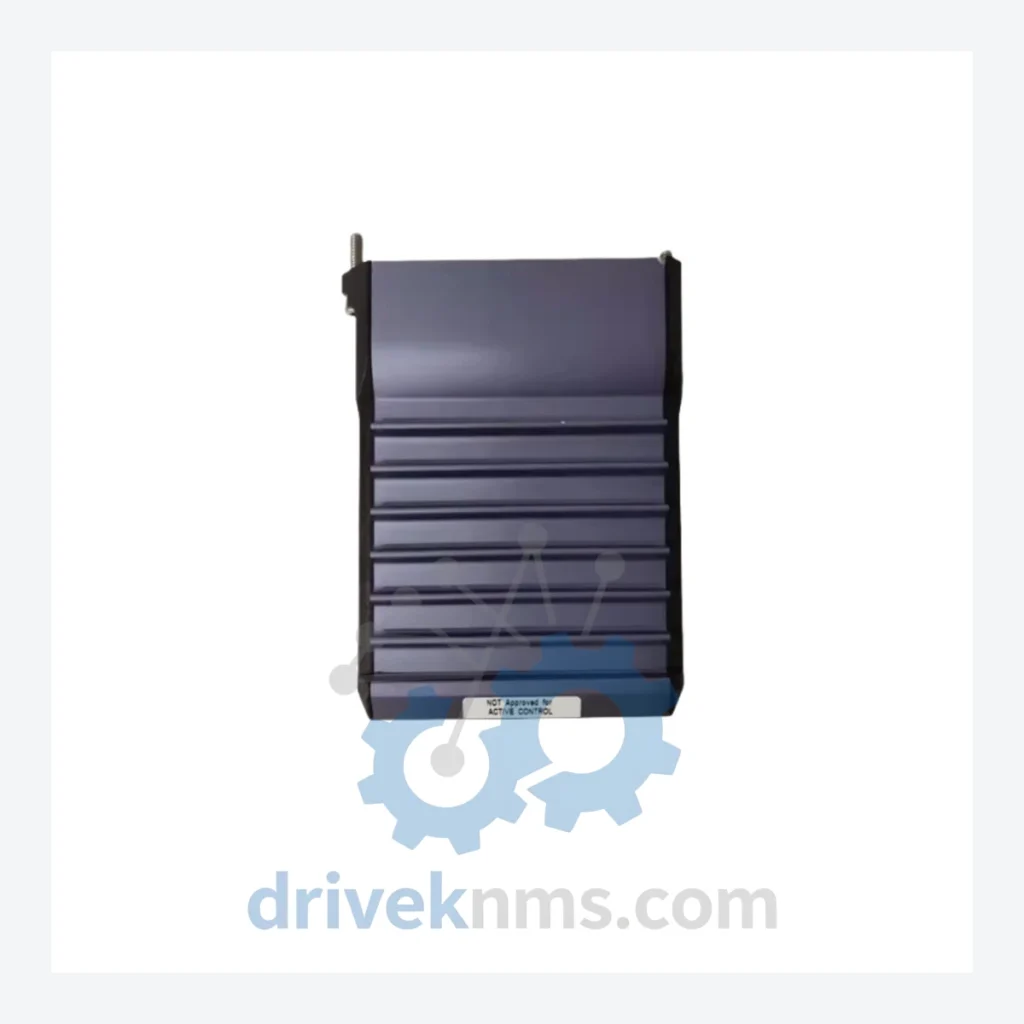

Foxboro FBM205 P0914XG Analog I/O Module – Obsolete I/A Series Spare Part

When a Foxboro FBM205 P0914XG fails in a running process plant, the clock starts immediately. This module is a core analog I/O fieldbus module within the Foxboro I/A Series Distributed Control System (DCS) — a platform that has been the backbone of refining, petrochemical, and power generation operations for decades. Foxboro has officially discontinued the FBM205 and its associated P0914XG configuration. Sourcing a replacement through OEM channels is no longer possible.

The consequence of an unplanned outage caused by this module is not a parts problem — it is a capital decision. A forced migration to a modern DCS platform carries engineering, commissioning, and validation costs that routinely exceed several million USD, plus months of downtime risk. A single verified spare FBM205 P0914XG eliminates that exposure entirely.

DriveKNMS maintains a limited inventory of this discontinued module, sourced through controlled industrial decommissioning channels and subject to our multi-step quality assurance process before shipment.

Technical Specifications

Note: Electrical parameters such as channel count, signal range, and power consumption are not published here to avoid inaccuracy. Confirmed specifications are available upon request with your system configuration details.

Solving the Discontinued Hardware Crisis

The Foxboro I/A Series DCS was engineered for long service life, and many facilities commissioned in the 1990s and 2000s are still running on this platform today. The FBM205 sits at the field interface layer — it handles the analog signal conditioning between field instruments and the I/A Series nodebus. There is no software-only workaround when this module fails. The physical hardware must be replaced with an identical or fully compatible unit.

Schneider Electric, which acquired Foxboro, has directed customers toward its EcoStruxure platform. That migration path is technically sound for greenfield projects. For a brownfield facility with 200+ I/O points, existing loop tuning, and validated control strategies built over 15 years, it is a multi-year capital project — not a maintenance action.

The practical strategy adopted by plant reliability engineers and maintenance managers is straightforward: maintain a vetted inventory of critical FBM modules to extend the operational life of the existing I/A Series infrastructure by 5 to 10 years, buying time for a planned, budgeted migration on the facility's own schedule rather than under emergency conditions.

Extending asset life by a decade through strategic spare parts procurement typically costs less than 1% of the total DCS replacement budget. For a facility where the I/A Series controls a continuous process — ethylene cracking, crude distillation, power turbine control — that calculation is not difficult to make.

Key actions for plant management facing I/A Series end-of-life pressure:

• Conduct a full FBM module audit across all cabinets and identify single points of failure with no installed spare.
• Prioritize modules in high-cycle or high-temperature environments, where capacitor degradation is accelerated.
• Establish a minimum two-unit buffer for any FBM type that controls a critical loop with no manual bypass.
• Document firmware versions currently running in the field before sourcing replacements — version mismatches can cause configuration issues during hot-swap.
• Engage a supplier with documented QA procedures for refurbished industrial electronics, not general surplus brokers.

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step inspection protocol to every FBM205 P0914XG unit before it is offered for sale:

1. Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in modules of this generation. Each unit is inspected for bulging, leakage, and ESR deviation from specification.
2. Firmware Version Verification: The installed firmware revision is documented and disclosed. Customers are advised to confirm compatibility with their I/A Series software release before installation.
3. Pin and Connector Inspection: All backplane connectors and field wiring terminals are examined under magnification for corrosion, oxidation, and mechanical deformation.
4. Functional Power-On Test: Where test infrastructure permits, modules are powered and checked for basic initialization and communication response.
5. Cosmetic and Label Integrity Check: Part number labels, revision markings, and serial number plates are verified for authenticity and legibility.

Units that do not pass all five stages are not listed for sale. Condition (new surplus, tested refurbished, or as-removed) is disclosed in full at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The FBM205 P0914XG installs directly into the existing I/A Series baseplate without mechanical modification.
• No reprogramming required: I/A Series control databases reference the module by slot address. A replacement module of the same type and firmware revision restores operation without changes to the control strategy.
• Avoids engineering reconstruction costs: Substituting a non-identical module or migrating to a different I/O platform requires loop re-engineering, FAT/SAT testing, and management of change documentation — costs that a like-for-like spare eliminates entirely.
• Immediate dispatch: In-stock units can be shipped within 24–48 hours of order confirmation, supporting emergency maintenance windows.

FAQ

What warranty applies to a discontinued module?
DriveKNMS provides a 90-day warranty against functional failure under normal operating conditions for tested and refurbished units. New surplus units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of sale.

How do I know the unit is genuine and not counterfeit?
All units are inspected for label authenticity, PCB markings, and component consistency with known-good reference units. Provenance documentation (decommissioning source, prior installation records where available) is provided upon request.

Should I buy more than one unit?
For any FBM type controlling a critical process loop with no manual override, a minimum of two spares is the standard recommendation among I/A Series reliability programs. Given that secondary market availability of the FBM205 P0914XG is finite and declining, procurement of a multi-unit buffer now is materially lower risk than sourcing under emergency conditions in 12–24 months.

Can you source other Foxboro I/A Series FBM modules?
Yes. DriveKNMS specializes in hard-to-find Foxboro I/A Series components. Contact us with your full bill of materials for a consolidated quotation.
