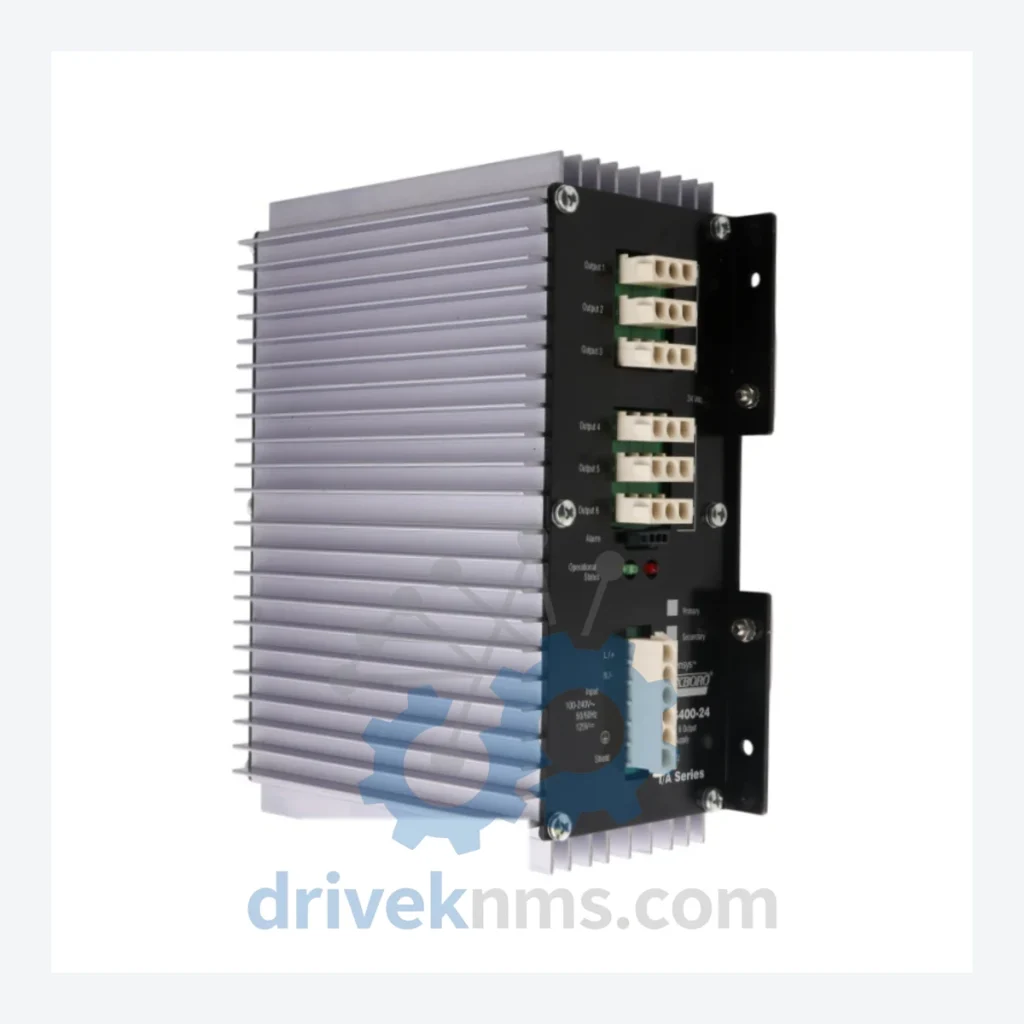

Foxboro I/A Series Power Supply Modules - FPS400-24 P0922YU

Technical Dossier

Product Details And Specifications

Foxboro I/A Series Power Supply Modules Technical Notes

The Foxboro I/A Series (Intelligent Automation Series) is one of the most widely deployed Distributed Control System (DCS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and crude oil refineries, the I/A Series has maintained a continuous field presence since its commercial introduction in the mid-1980s. The power supply subsystem — anchored by modules such as the FPS400-24 and its associated assembly P0922YU — is the foundational layer that sustains backplane bus integrity, field I/O voltage rails, and redundant controller operation. A failure in this subsystem propagates directly to process uptime; sourcing verified replacement units is therefore a maintenance-critical activity for any site running I/A Series infrastructure.

The Evolution of I/A Series Power Supply Architecture

The I/A Series power supply architecture has passed through three distinct engineering generations since its introduction:

Generation 1 (1987–1995): The original I/A Series fieldbus enclosures used single-rail, non-redundant 24 VDC supplies mounted in the FBM (Fieldbus Module) baseplate. These units were rated at 200–300 W and lacked hot-swap capability. Redundancy required manual switchover via external relay logic. Common failure modes included capacitor degradation and transformer insulation breakdown after 10–15 years of continuous operation.

Generation 2 (1995–2008): Foxboro introduced the FPS400 series as a standardized, rack-mountable power supply platform. The FPS400-24 delivers 400 W at 24 VDC output, with integrated current sharing for N+1 redundant configurations. The P0922YU designator identifies the specific assembly variant with enhanced EMI filtering, suitable for installations adjacent to high-frequency variable frequency drives. This generation introduced the first hot-swap capability, allowing module replacement without process interruption.

Foxboro I/A Series Power Supply — Full Catalog & Functionalities (SKU List)

Power Supply Modules:

• FPS400-24 / P0922YU: 400 W, 24 VDC output, hot-swap, N+1 redundancy, enhanced EMI filter variant.
• FPS400-24 / P0922XU: 400 W, 24 VDC standard EMI variant, rack-mount, current sharing enabled.
• FPS200-24 / P0916TU: 200 W, 24 VDC, single-rail supply for smaller FBM enclosures.
• FPS400-48 / P0922ZU: 400 W, 48 VDC output variant for high-voltage fieldbus segments.
• FPS600-24 / P0926AU: 600 W, 24 VDC, high-capacity supply for large I/O enclosures with full redundancy.

Controller Modules (CP Series):

• CP60 / P0914GU: Dual-redundant control processor, 100 Mbps Nodebus, supports up to 256 FBMs.
• CP30 / P0903GU: Single-processor controller, legacy installations, 10 Mbps Nodebus.
• CP40B / P0914BU: Enhanced CP40 with expanded memory, supports compound database up to 2,000 blocks.
• CP270 / P0926CU: High-performance controller for Foxboro Evo migration path, backward-compatible with I/A Series FBMs.

Fieldbus I/O Modules (FBM Series):

• FBM201 / P0926GU: 16-channel analog input, 4–20 mA HART-enabled, isolated.
• FBM202 / P0926HU: 8-channel analog output, 4–20 mA, HART pass-through.
• FBM207 / P0926MU: 32-channel digital input, 24 VDC, optically isolated.
• FBM211 / P0926RU: 16-channel digital output, relay contact, 2 A per channel.
• FBM220 / P0926VU: Thermocouple/RTD input, 8-channel, cold junction compensated.
• FBM237 / P0927AU: FOUNDATION Fieldbus H1 communication adapter, 2-segment.
• FBM242 / P0927GU: PROFIBUS DP master interface module, V1 compliant.

Communication & Network Modules:

• FCM10E / P0914QU: Fieldbus Communication Module, 10 Mbps Ethernet nodebus interface.
• FCM100E / P0926EU: 100 Mbps Ethernet FCM, dual-redundant nodebus, fiber or copper.
• NIM / P0903NU: Network Interface Module, legacy 10 Mbps coaxial nodebus termination.

Quality Control for the Foxboro I/A Series Power Supply Range

Power supply modules in the I/A Series operate within a precision backplane bus environment. Standard visual inspection and basic power-on testing are insufficient to certify a replacement unit for process-critical service. DriveKNMS applies the following test protocol to all FPS400-series units:

• Input voltage range verification: Units are tested across the full rated input range (85–264 VAC, 47–63 Hz) to confirm regulation performance at voltage extremes.
• Output load regulation test: 24 VDC output is measured at 0%, 50%, and 100% rated load. Acceptable deviation: ±1% of nominal.
• Current sharing validation: For redundant-pair configurations, current sharing balance between two units is verified to within ±5% under full load.
• EMI filter integrity: Conducted emissions are measured per CISPR 11 Class A limits using a calibrated spectrum analyzer.
• Thermal cycling: Units are cycled from 0°C to 55°C operating range with load applied to identify latent thermal failures.
• Backplane connector inspection: DIN41612 connector pins are inspected under 10× magnification for fretting corrosion, a common failure mode in modules removed from high-vibration environments.
