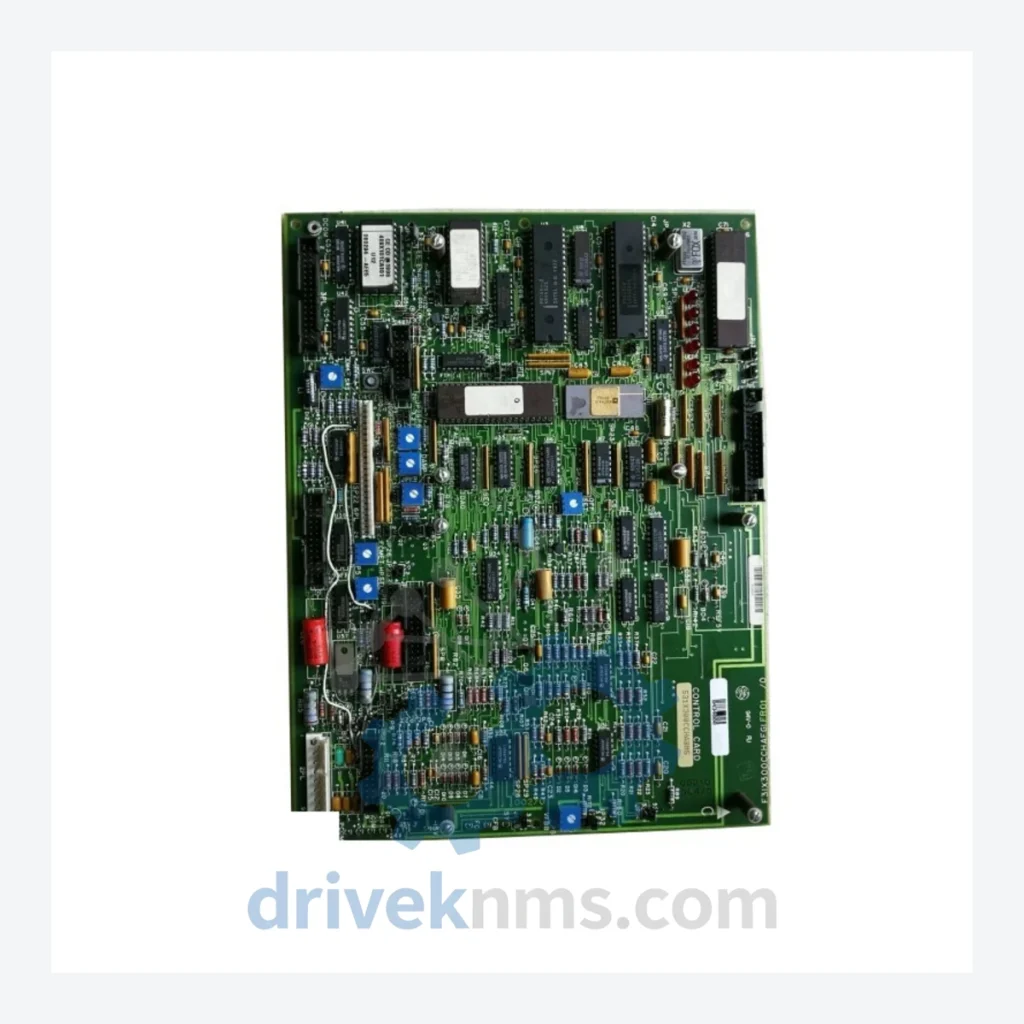

GE 531X300CCHAFM5 Control Card Module – Obsolete DC300 Spare Part

Technical Dossier

Product Details And Specifications

GE 531X300CCHAFM5 Control Card Module – Obsolete DC300 Spare Part

DriveKNMS maintains RFQ-reviewed sourcing status of the 531X300CCHAFM5. This is not a catalog listing — it is a RFQ-reviewed sourcing status position. For facilities running GE DC300 drives in continuous or critical-duty applications, this availability represents a direct path to restoring production without capital expenditure.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage ratings, current capacity, and firmware revision are unit-specific. DriveKNMS will provide verified datasheet documentation upon request. No parameters are published here that cannot be confirmed against physical inspection records.

Solving the Discontinued Hardware Crisis

The GE DC300 drive series was widely deployed across heavy industry — steel mills, paper machines, mining conveyors, and large HVAC systems — through the 1990s and into the 2000s. The 531X300CCHAFM5 control card sits at the core of the DC300's closed-loop regulation architecture. It handles speed reference processing, current feedback conditioning, and firing pulse generation for the SCR bridge. Without a functioning control card, the drive is inoperable regardless of the condition of the power section.

GE's exit from the DC drive market left a large installed base without a supported upgrade path. The manufacturer's recommended migration — to newer AC drive platforms — requires motor replacement or at minimum a full electrical audit, because DC motors cannot be directly substituted with AC equivalents without mechanical modifications. For facilities where the driven equipment was engineered around a DC motor, this is not a simple swap.

Extending the operational life of a GE DC300 system by five to ten years through strategic spare parts management is a documented and cost-effective approach. The capital cost of maintaining two or three critical spare modules — control card, firing board, regulator board — is a fraction of the cost of a single unplanned outage, and orders of magnitude less than a forced system replacement. For plant managers operating under capital expenditure constraints, this is not a workaround. It is a defensible asset protection strategy.

Condition & Reliability Assurance

DriveKNMS applies a five-stage inspection protocol to all obsolete control modules before they are offered for sale. This process is designed specifically for the failure modes common to boards that have been in storage or removed from service.

Stage 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burn marks, cracked solder joints, and component displacement. Any board with visible damage is rejected at this stage.

Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point on control boards of this era. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with suspect capacitors are flagged for component-level refurbishment before sale.

Stage 3 – Firmware and Configuration Verification: Where applicable, firmware revision is documented and cross-referenced against known compatible versions for the DC300 platform. Boards with unknown or mismatched firmware are disclosed to the buyer prior to sale.

Stage 4 – Pin and Connector Integrity Check: All edge connectors and pin headers are inspected for corrosion, oxidation, and mechanical deformation. Contact surfaces are cleaned where necessary. Corroded connectors that cannot be restored to reliable contact are cause for rejection.

Key Features for System Maintenance

The 531X300CCHAFM5 is a direct drop-in replacement for the original control card position in the GE DC300 drive chassis. Installation does not require drive reprogramming, parameter re-entry, or modification of the surrounding control wiring — provided the replacement board carries a compatible firmware revision, which DriveKNMS verifies prior to shipment.

For facilities that have invested in operator training, process tuning, and integration of the DC300 into their control architecture, this compatibility preserves that investment. The alternative — a new drive platform — resets all of it.

Can you source other GE DC300 spare parts?
Yes. DriveKNMS specializes in hard-to-find and obsolete industrial automation components across multiple platforms. If you have a broader DC300 spare parts requirement, contact us with your full bill of materials and we will advise on availability.
