GE 531X305NTBANG1 Terminal Board – Obsolete Drive Series Spare Part

Technical Dossier

Product Details And Specifications

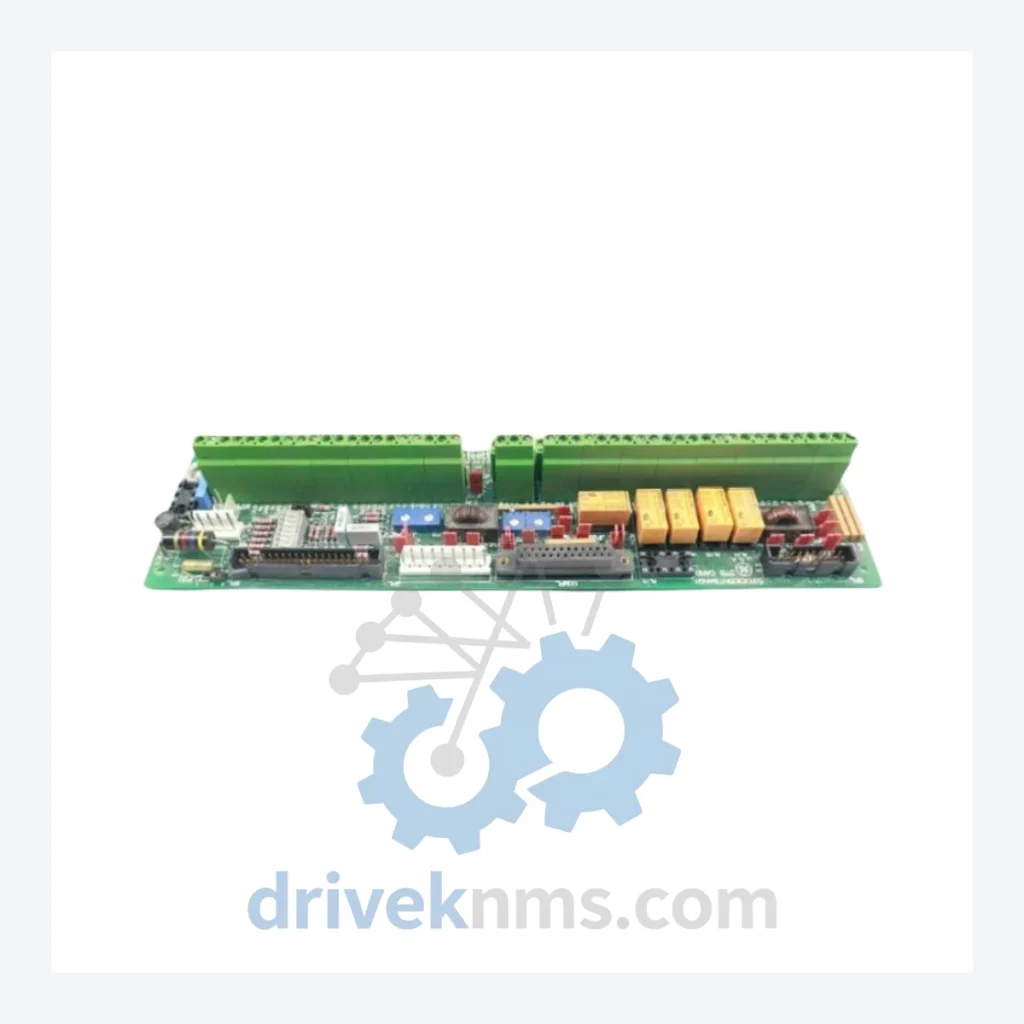

GE 531X305NTBANG1 Terminal Board – Obsolete GE Drive Series Spare Part

DriveKNMS maintains RFQ-reviewed sourcing status of the 531X305NTBANG1. For plant managers and maintenance engineers operating facilities built around GE's legacy drive infrastructure, this availability is not a convenience — it is a line-of-defense against capital expenditure that no budget cycle anticipated.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, current ratings, signal ranges) are verified during our QA process and provided upon request with unit documentation. No parameters are published without physical verification to ensure accuracy and equipment safety.

Solving the Discontinued Hardware Crisis

The GE 531X drive platform was widely deployed across heavy industry — paper mills, steel processing, water treatment, and petrochemical facilities — throughout the 1990s and into the 2000s. These systems were engineered for decades of service, and many remain operational today precisely because they were overbuilt. The 531X305NTBANG1 Terminal Board serves as the signal and power termination backbone within these drives, routing control signals between the main control board and external field devices.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How to Extend Automation Asset Life by 5–10 Years: A Maintenance Strategy for Legacy GE Drive Systems

Plant managers facing pressure to retire aging GE 531X-series infrastructure often do so not because the drives have failed, but because replacement parts are assumed to be unavailable. That assumption is the primary driver of premature system retirement — and it is frequently incorrect.

A structured spare parts strategy can realistically extend the operational life of a GE 531X drive installation by five to ten years, deferring capital replacement costs and preserving the institutional knowledge embedded in existing system configurations. The following principles apply directly to facilities operating this platform:

1. Identify single-point-of-failure components. Terminal boards, gate driver boards, and power supply modules are the components most likely to cause full drive shutdown when they fail. These should be the first items held in reserve. The 531X305NTBANG1 falls into this category.

2. Audit current spare holdings against installed base. For every GE 531X drive in service, there should be at minimum one verified spare terminal board on the shelf. Facilities with three or more drives of the same configuration should hold two units.

4. Document firmware and configuration baselines. Before any maintenance event, ensure that drive parameter sets are backed up. This eliminates re-commissioning risk when a board is swapped and preserves the engineering work already invested in the system.

Condition & Reliability Assurance

DriveKNMS applies a 5-step QA protocol to all refurbished obsolete components before they are offered for sale. For a terminal board of this age and application, the following inspection points are non-negotiable:

Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the leading cause of latent failure in boards of this vintage. Each unit is inspected for bulging, leakage, and ESR deviation. Capacitors outside tolerance are replaced with specification-equivalent components.

Step 2 – Firmware Version Verification: Where applicable, firmware or EPROM versions are documented and matched against known-compatible revisions for the target drive platform.

Step 3 – Pin and Connector Corrosion Inspection: All edge connectors, terminal blocks, and signal pins are inspected under magnification for oxidation, corrosion, and mechanical damage. Affected contacts are cleaned or replaced.

Step 4 – Functional Bench Test: Each board undergoes powered functional testing against GE 531X-series drive test fixtures to verify signal integrity and termination function prior to release.

Step 5 – Documentation and Serialization: Each unit ships with a QA inspection record, condition classification (New or Refurbished), and test date. This documentation supports traceability requirements in regulated industries.

Key Features for System Maintenance

The 531X305NTBANG1 is a direct drop-in replacement for the original installed unit. No drive reprogramming is required. No modifications to existing wiring or field terminations are necessary. The board seats into the existing drive chassis using the original mounting hardware.

Q: Should I buy multiple units as long-term spares?
A: For facilities with two or more GE 531X-series drives in service, holding at least one spare 531X305NTBANG1 per drive configuration is a standard risk mitigation practice. Given the diminishing market supply of this part, procurement decisions made today will not be available to repeat in 12–24 months at equivalent cost or availability.

Q: Can this board be used across different 531X sub-variants?
A: Compatibility depends on the specific drive model and revision. DriveKNMS technical staff can confirm compatibility against your drive nameplate data prior to purchase. Contact us with your drive model number before ordering if you have any uncertainty.
