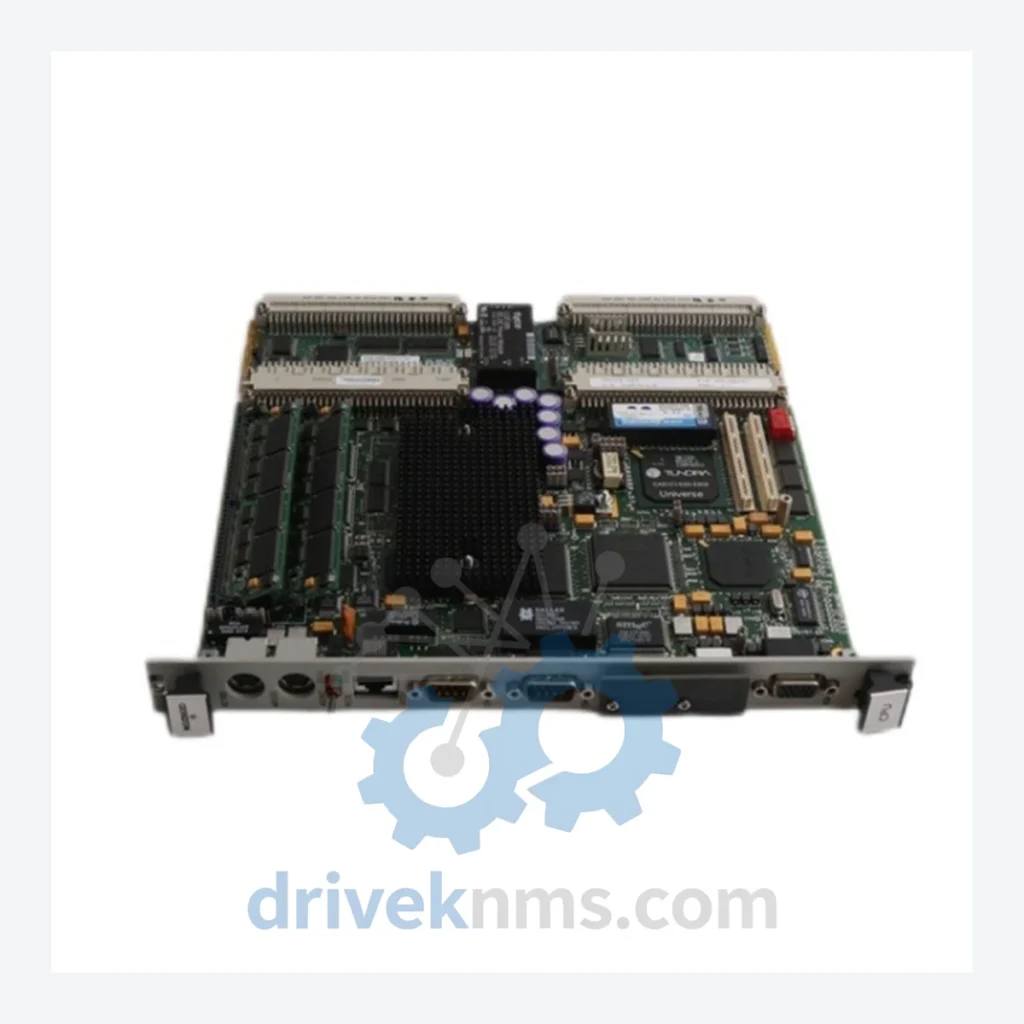

GE DS200DSPCH Series Modules: DS200DSPCH1A DS200DSPCH1ADA

Technical Dossier

Product Details And Specifications

GE DS200DSPCH Series Technical Notes

The Evolution of DS200DSPCH Architecture

The DS200DSPCH series was introduced as part of GE's transition from the Mark V to the Mark VI control platform in the mid-1990s. The Mark V relied on the DS200 board family with separate processor and I/O architectures; the Mark VI consolidated these functions into a VME-based backplane with tighter real-time determinism. The DS200DSPCH board occupies the DSP slot within the Mark VI or controller rack, interfacing directly with the IONet Ethernet backbone and the IONET I/O packs.

Early revisions (suffix A) established the base firmware compatibility with Mark VI software release R4.x. Subsequent hardware revisions addressed FPGA logic density, SDRAM capacity, and EMI shielding for high-vibration environments. The DS200DSPCH1ADA variant introduced enhanced diagnostic registers and extended temperature tolerance, targeting installations in desert and tropical climates. As GE transitioned to the Mark VIe platform (IS420 series), the DS200DSPCH entered a mature/end-of-active-production lifecycle. GE ceased new manufacturing of this board family; however, the installed base remains active, and long-term maintenance support is the primary sourcing driver for this part number.

DS200DSPCH Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified DS200DSPCH series and closely associated Mark VI DSP/control board variants. Each entry reflects a distinct hardware revision or functional configuration within the GE Mark VI architecture.

DS200DSPCH1A: Mark VI DSP control board, base revision A, VME-bus interface, primary turbine sequencing processor.
DS200DSPCH1ADA: Mark VI DSP control board, revision ADA, enhanced diagnostics, extended temperature range (-20°C to +70°C).
DS200DSPCH1B: Revision B DSP board, updated FPGA logic, improved SDRAM addressing for larger control programs.
DS200DSPCH1BDA: Revision BDA, diagnostic-enhanced variant of revision B, field-replaceable without firmware re-flash in most Mark VI configurations.
DS200DSPCH1C: Revision C, final active-production hardware revision, increased EMI shielding, compatible with Mark VI R6.x and later software.
DS200DSPCH1CDA: Revision CDA, diagnostic-enhanced variant of revision C, used in redundant TMR (Triple Modular Redundancy) configurations.
DS200DSPCH2A: Second-generation DSP board, higher clock speed DSP core, backward-compatible with Mark VI R5.x and above.
DS200DSPCH2ADA: Diagnostic-enhanced variant of DS200DSPCH2A, extended I/O diagnostic register set.
DS200DSPCH3A: Third-generation variant, introduced support for expanded IONet segment addressing.
DS200DSPCH3ADA: Diagnostic-enhanced variant of DS200DSPCH3A, used in high-availability simplex and TMR racks.
DS200DSPCH1AFG: Factory-configured variant with pre-loaded application firmware for specific OEM turbine packages.
DS200DSPCH1ADG: Diagnostic-grade variant with extended on-board memory for event logging in critical protection applications.
DS200DSPCH1AEA: Revision AEA, intermediate hardware stepping between A and B, found in mid-2000s Mark VI installations.
DS200DSPCH1AFA: Revision AFA, updated oscillator circuit for improved clock stability in high-vibration environments.
DS200DSPCH1AGA: Revision AGA, final minor hardware revision before transition to DS200DSPCH2A generation; compatible with all Mark VI R4.x–R6.x software releases.

Sourcing Hard-to-Find & Obsolete DS200DSPCH Parts

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Quality Control for the DS200DSPCH Range

The DS200DSPCH board presents specific test challenges due to its VME backplane interface, on-board DSP core, and FPGA logic fabric. DriveKNMS applies the following test procedures to all DS200DSPCH units prior to shipment:
