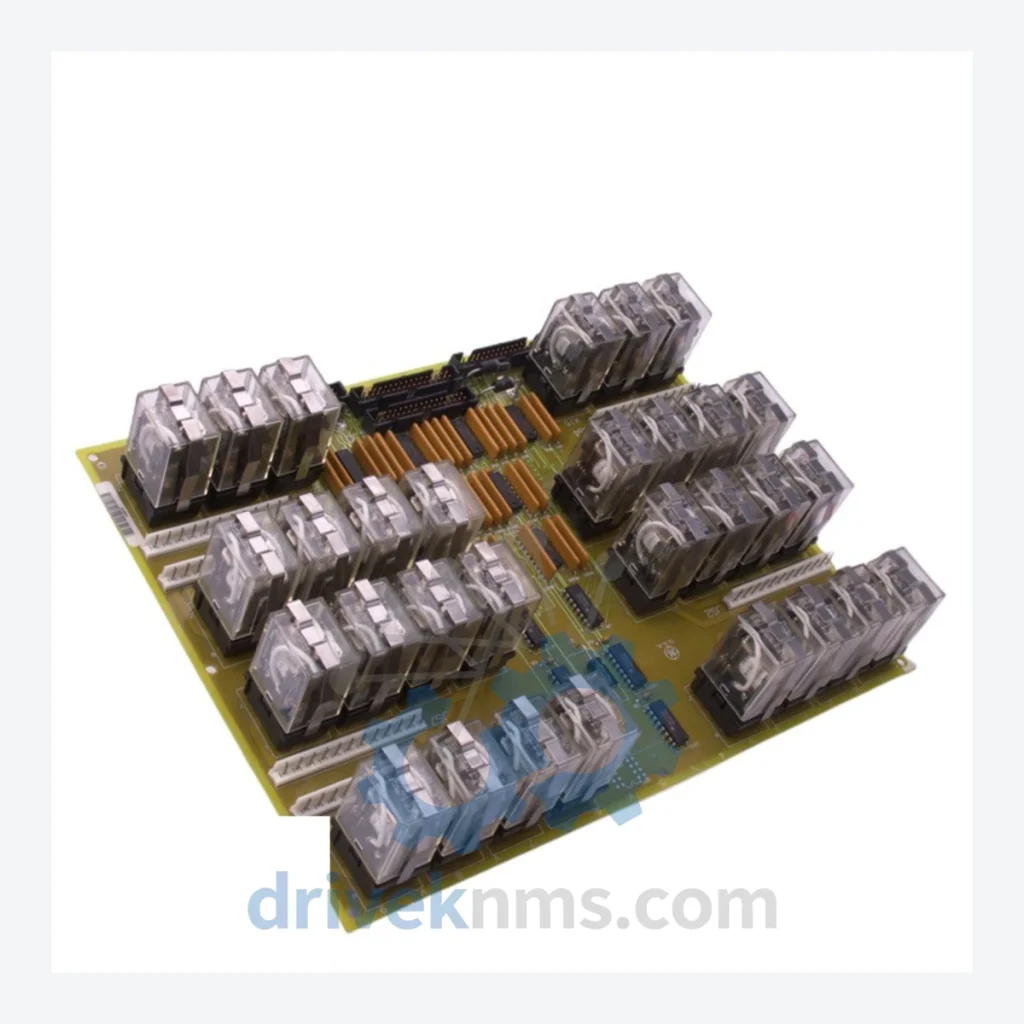

GE DS200 DS215 Modules: DS200SLCCG3ACC DS215DENCG3AZZ01A PC Board

Technical Dossier

Product Details And Specifications

GE DS200 / DS215 Series: Comprehensive Module Range and Technical Overview

The GE DS200 and DS215 series represents the core I/O, control, and communication module families deployed within GE's Mark V, Mark VI, EX2100, and LCI (Load Commutated Inverter) turbine and excitation control platforms. These modules are installed across critical heavy-industry infrastructure globally, including combined-cycle power plants, nuclear auxiliary systems, petrochemical refineries, and offshore oil and gas platforms. The DS200 designation covers the primary functional board layer, while DS215 denotes the enhanced or revised board revision within the same backplane architecture. Both series share a common VME-style backplane bus and are not field-programmable by end users; replacement with an exact-match part number is the standard maintenance protocol. Installed base spans GE Frame 3 through Frame 9 gas turbines, steam turbines, and generator excitation systems commissioned from the early 1990s through the mid-2010s.

The Evolution of DS200 / DS215 Architecture

The DS200 series was introduced as part of GE's Mark V Speedtronic turbine control system in the early 1990s, replacing the earlier Mark IV discrete-logic architecture with a distributed, microprocessor-based control topology. Each functional module occupies a dedicated slot in the , , or controller panel, with triple-redundant voting logic applied to critical I/O channels. The DS215 sub-series emerged as board-level revisions incorporating updated ASIC components, improved EMI shielding, and extended temperature tolerance, while maintaining full backward compatibility with DS200-generation backplanes and firmware revisions.

With the introduction of Mark VI (IS200 series) and Mark VIe (IS420 series) platforms from the mid-2000s onward, GE formally transitioned new turbine installations away from DS200/DS215 hardware. As of 2026, the entire DS200/DS215 product line is classified as End-of-Life (EOL) by GE Vernova. No new production runs are scheduled. Field replacements rely entirely on surplus inventory, refurbished units, and authorized third-party repair channels. Compatibility between DS200 and DS215 part numbers is board-specific and must be verified against the turbine's application software revision and I/O configuration file before installation.

DS200 / DS215 Full Catalog & Functionalities (SKU List)

The following part numbers represent verified, commonly sourced modules within the DS200 and DS215 series. Each entry reflects the module's primary functional role within the Mark V / EX2100 / LCI control architecture.

Controllers & Processor Boards

• DS200SLCCG3ACC: Slave I/O Controller Card — manages distributed I/O communication between the master controller and field terminal boards in Mark V LCI systems.
• DS215DENCG3AZZ01A: Digital Encoder Interface Board — processes speed and position feedback signals from magnetic pickup units and optical encoders for turbine shaft monitoring.
• DS200TCQCG1A: Turbine Control Quad-Core Processor Board — primary CPU module for Mark V , , redundant controller panels.
• DS200TCDAG1A: Turbine Control Diagnostic Board — handles internal diagnostics, watchdog timing, and inter-panel communication arbitration.
• DS200TCCAG1A: Turbine Control Communication Adapter — manages serial and Ethernet gateway functions between the Mark V panel and plant DCS/SCADA networks.

Analog I/O Modules

• DS200IOCAG1A: I/O Controller Analog Board — provides 16-channel analog input acquisition (4–20 mA / 0–10 V) for process variable monitoring.
• DS200AAHAG1A: Analog Input High-Accuracy Board — precision thermocouple and RTD signal conditioning for exhaust temperature arrays.
• DS200AAIAG1A: Analog Input Isolation Board — galvanically isolated analog input module for high-common-mode voltage environments.
• DS215AAHAG1AZZ01A: Revised Analog Input High-Accuracy Board — DS215-generation replacement for DS200AAHAG1A with updated ADC resolution.
• DS200AOAAG1A: Analog Output Board — 8-channel 4–20 mA output module for valve positioner and actuator control loops.

Digital I/O Modules

• DS200DIOAG1A: Digital I/O Board — 32-channel discrete input/output module for contact sensing and relay drive applications.
• DS200DIDAG1A: Digital Input Diagnostic Board — monitors contact wetting voltage and input state integrity for protective relay interfaces.
• DS215DIDAG1AZZ01A: Revised Digital Input Diagnostic Board — DS215-generation update with enhanced noise immunity on 125 VDC input circuits.
• DS200DODAG1A: Digital Output Driver Board — high-current relay output module for solenoid valve and trip circuit actuation.

Communication & Network Adapters

• DS200TCCBG1A: Turbine Control Communication Board B — secondary communication module supporting Modbus RTU and GE proprietary ARCNET protocols.
• DS200EXPSG1A: Expansion Power Supply Board — auxiliary 5 VDC / 24 VDC regulated supply for I/O expansion racks in large turbine panel configurations.
• DS215EXPSG1AZZ01A: Revised Expansion Power Supply Board — DS215-generation replacement with improved thermal management and short-circuit protection.

Power Supply Modules

• DS200PSDAG1A: Power Supply Distribution Board — distributes regulated DC bus voltages to all modules within a single Mark V controller panel.
• DS200PSMAG1A: Power Supply Monitor Board — monitors input AC voltage, DC rail integrity, and generates panel-level power fault alarms.

Sourcing Hard-to-Find & Obsolete DS200 / DS215 Parts

DriveKNMS maintains a dedicated inventory program for EOL GE Mark V components. For DS200 and DS215 series modules, sourcing strategy encompasses three tiers: (1) new-surplus stock from decommissioned turbine panels, (2) professionally refurbished units with full functional test certification, and (3) board-level repair for modules where replacement stock is exhausted. All DS200/DS215 part numbers are cross-referenced against GE's historical part supersession database to identify valid DS215-generation substitutes for discontinued DS200 originals. Customers operating aging Mark V installations are advised to establish a strategic spare parts buffer covering at minimum the processor, analog I/O, and power supply module categories, as lead times for surplus DS200/DS215 stock continue to extend as global installed-base inventory depletes.

Quality Control for the DS200 / DS215 Range

DS200 and DS215 modules undergo a structured test protocol prior to shipment from DriveKNMS. Each board is visually inspected for capacitor bulge, PCB delamination, corroded edge connectors, and damaged ASIC packages — failure modes characteristic of long-term panel service in high-humidity or high-vibration environments. Functional testing is performed using GE-compatible backplane test fixtures that replicate the Mark V panel bus timing and voltage rails. For communication modules (SLCC, TCCB, DENC), loopback tests verify protocol integrity at the physical and data-link layers. Analog I/O boards are calibrated against NIST-traceable reference standards. All tested units are issued a test report documenting pass/fail criteria, measured parameters, and firmware revision where applicable.
