GE DS200 Mark V Speedtronic Modules - DS200TCQCG1AFC

Technical Dossier

Product Details And Specifications

GE DS200 Mark V Speedtronic Series Technical Notes

The GE DS200 series represents the core I/O, control, and communication hardware of the Mark V Speedtronic turbine control system — one of the most widely deployed distributed control platforms in heavy industry. Installed across gas turbine power plants, combined-cycle facilities, petrochemical refineries, LNG terminals, and nuclear auxiliary systems worldwide, the Mark V platform has accumulated decades of operational history. Facilities in North America, the Middle East, Southeast Asia, and Europe continue to operate Mark V-based turbine control systems, many of which are no longer supported under active GE service contracts. The DS200 module family forms the backbone of these installations. Replacement availability directly determines whether a turbine remains online or faces a forced outage.

The Evolution of DS200 Mark V Architecture

Early DS200 revisions (suffix codes A, B) used through-hole PCB construction with discrete logic ICs. Later revisions (C, D, F) transitioned to surface-mount components, improving density and thermal performance. Firmware was stored on EPROMs in early units; later boards used flash-based storage. This generational split creates compatibility constraints: a board with suffix G1A may not be a direct drop-in replacement for a G1B variant without firmware verification. Plant engineers must cross-reference both the base part number and the full revision suffix before ordering.

GE formally transitioned its turbine control product line toward the Mark VIe platform beginning in the mid-2000s. Mark V systems were placed on a maintenance-only support model, and DS200 module production was progressively wound down. By the early 2010s, the majority of DS200 boards were classified as discontinued by GE. The installed base, however, remains substantial. Upgrading a Mark V system to Mark VIe requires full panel replacement, new wiring, re-engineering of I/O terminations, and re-commissioning — a project typically costing $500,000 to $2,000,000 per turbine unit. For many operators, sourcing DS200 spare parts is the only economically rational maintenance strategy.

DS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed members of the GE DS200 Mark V Speedtronic module family, categorized by functional role. All part numbers listed are based on documented GE Mark V hardware references.

Turbine Control & Processor Boards

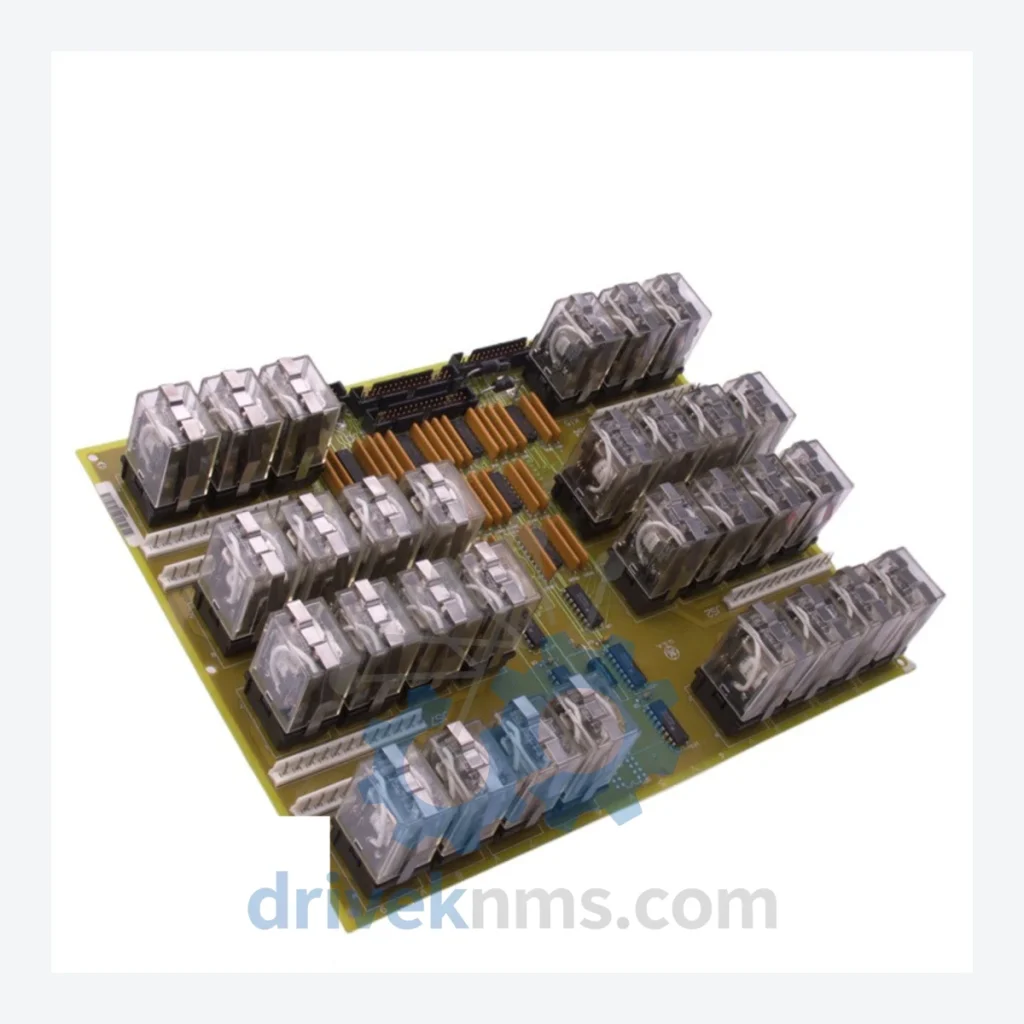

• DS200TCQCG1AFC: Turbine control relay output board; manages discrete relay switching for turbine sequencing logic.
• DS200TCQAG1B: Turbine control relay board, earlier revision; used in TMR configurations for output relay management.
• DS200TCRAG1A: Turbine control relay board variant; supports high-density relay output channels in Mark V panels.
• DS200TCPSG1A: Turbine control power supply interface board; conditions and distributes regulated power within the control panel.
• DS200DSPCH1A: Digital signal processor board; executes real-time turbine control algorithms within the Mark V core.
• DS200PCCAG1A: Process control communication board; handles inter-module data exchange across the Mark V backplane bus.

I/O Modules — Analog & Digital

• DS200SDCIG1A: Servo drive control interface board; interfaces Mark V control outputs with electro-hydraulic servo actuators.
• DS200ADGIH1A: Analog-to-digital input board; converts field analog signals (4–20 mA, thermocouple) for processor consumption.
• DS200AAHAH1A: Analog alarm and high-speed input board; processes fast-response analog inputs for protective relay functions.
• DS200DMCBG1A: Digital motor control board; manages discrete motor start/stop and status feedback within the turbine auxiliary system.
• DS200SHCAG1A: Speed and humidity control analog board; processes speed feedback signals from magnetic pickup sensors.

Termination & Backplane Boards

• DS200QTBAG1ACB: Termination board; provides field wiring connection points for I/O modules in the Mark V panel.
• DS200PTBAG1A: Power termination board; distributes DC power rails to downstream I/O and control modules.
• DS200CTBAG1A: Control termination board; routes control signals between the processor core and field termination assemblies.
• DS200SLCCG1A: Sequence logic control board; executes ladder-logic-based sequencing for turbine start/stop and load control.

Communication & Specialty Boards

• DS200DCFBG1B: DC feedback conditioning board; processes DC voltage and current feedback signals for excitation control loops.
• DS200VPBLG1A: Voltage protection and bus logic board; monitors bus voltage integrity and triggers protective shutdowns on fault detection.

Sourcing Hard-to-Find & Obsolete DS200 Parts

Procurement teams managing long-term Mark V maintenance programs are advised to establish a strategic spare parts inventory. A minimum recommended holding includes one spare unit for each critical DS200 board type installed in the panel — particularly processor boards, servo interface boards, and relay output boards, which carry the highest failure rates under continuous industrial duty.

Quality Control for the DS200 Range

DS200 boards sourced from the secondary market require systematic verification before installation in a live turbine control system. DriveKNMS applies a structured inspection protocol to all DS200 modules prior to dispatch:

Boards that do not pass all applicable inspection steps are not offered for sale. Condition is disclosed accurately — new surplus, tested serviceable, or as-removed — with no misrepresentation.
