GE DS200TCQCG1RJD Drive Control Board – Obsolete DS200 Speedtronic Spare Part

Technical Dossier

Product Details And Specifications

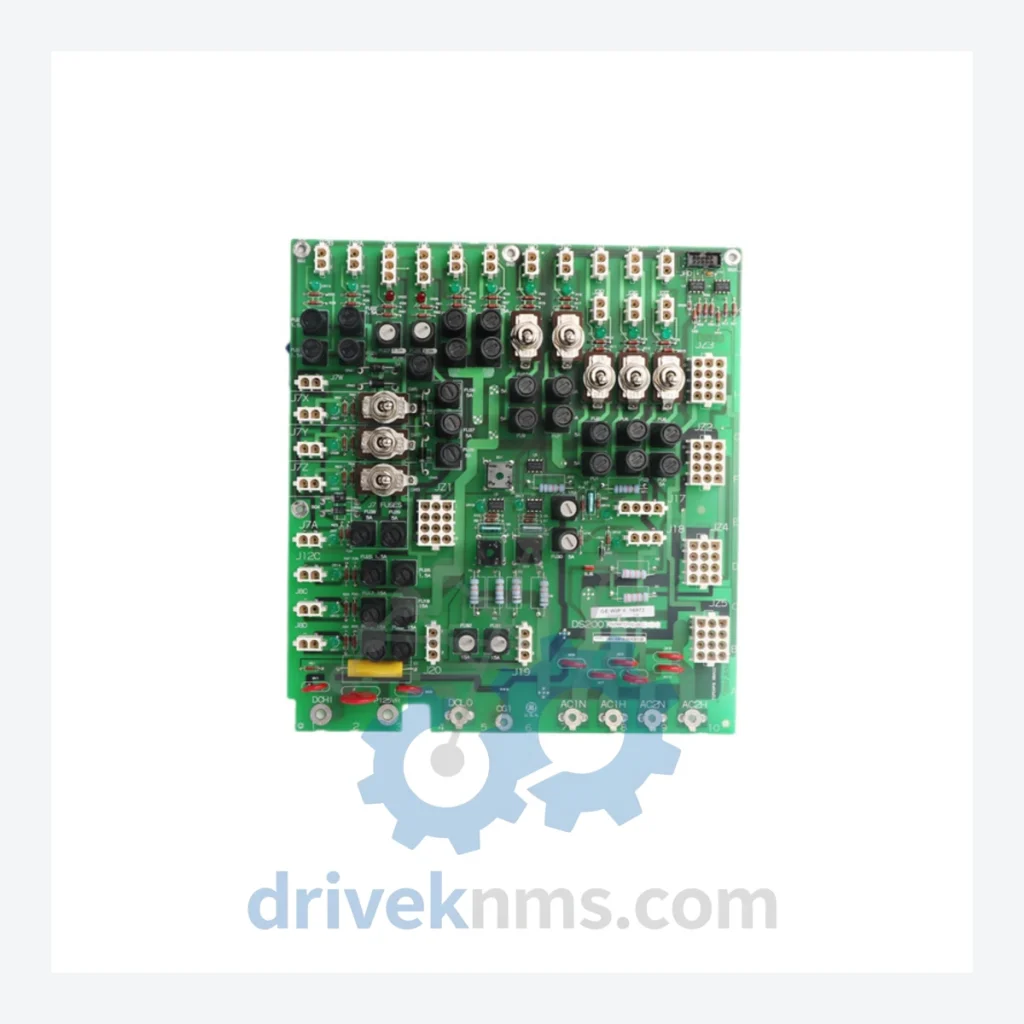

GE DS200TCQCG1RJD Drive Control Board – Obsolete DS200 Speedtronic Spare Part

The GE DS200TCQCG1RJD is a Drive Control Board belonging to GE's DS200 series, designed for use within the Mark V Speedtronic turbine control platform — one of the most widely deployed gas turbine control architectures in global heavy industry. This board governs drive-level control logic within the turbine excitation and sequencing subsystem.

DriveKNMS maintains verified inventory of the DS200TCQCG1RJD and other DS200-series boards specifically to support facilities that have chosen the operationally sound strategy of extending their existing Mark V infrastructure rather than undertaking premature capital replacement.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Solving the Discontinued Hardware Crisis

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

However, the installed base of Mark V systems remains substantial. Power generation facilities, petrochemical plants, offshore platforms, and LNG terminals across the Middle East, Southeast Asia, and Latin America continue to operate Mark V-controlled turbines as primary generation assets. For these facilities, the economic calculus is straightforward: a $3,000–$15,000 spare board purchase prevents a capital project that cannot be completed in under 18–36 months.

Related DS200-series boards commonly used alongside the DS200TCQCG1RJD include:

• DS200TCQAG1B – Turbine Control Quad Board, variant A
• DS200TCPDG1A – Turbine Control Power Distribution Board
• DS200TCCAG1B – Turbine Control Communication Adapter Board
• DS200TCRAG1A – Turbine Control Relay Output Board, variant A
• DS200SDCCG1A – Speedtronic DC Control Board
• DS200DCFBG1B – DC Feedback Board
• DS200DSPCH1A – Digital Signal Processor Control Board
• DS200CTBAG1B – Contact Input/Output Terminal Board
• DS200AAHAH1A – Analog Input/Output Board
• DS200SHVMG1A – High Voltage Monitor Board
• DS200SLCCG3A – Sequence Logic Control Board
• DS200TBCAG1A – Terminal Board, Contact Inputs
• DS200TBQDG1A – Terminal Board, Quad Output
• DS200ADGIH1A – Analog to Digital Gate Interface Board
• DS200PCCAG9A – Power Control Card, variant A

Condition & Reliability Assurance

Every DS200TCQCG1RJD unit processed by DriveKNMS undergoes a structured 5-step quality assurance protocol before dispatch:

1. Visual Inspection & Physical Audit: Full board inspection for mechanical damage, burnt components, cracked solder joints, and PCB delamination. Boards with structural compromise are rejected at this stage.
2. Electrolytic Capacitor Assessment: DS200-series boards manufactured in the 1990s are subject to electrolytic capacitor aging. All capacitors are tested for ESR (Equivalent Series Resistance) deviation and capacitance loss. Boards with out-of-spec capacitors are recapped using equivalent-rated components before release.
3. Firmware Version Verification: Where applicable, firmware revision is confirmed against known Mark V compatibility matrices. Mismatched firmware versions are flagged and disclosed to the customer prior to shipment.
4. Pin & Connector Corrosion Inspection: All edge connectors and backplane pins are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned using approved contact restoration procedures.
5. Functional Bench Test: Boards are powered and tested against baseline operational parameters using DS200-compatible test fixtures. Only boards that pass all functional checks are released for sale.

Key Features for System Maintenance

• Drop-in Replacement: The DS200TCQCG1RJD is a direct form-fit-function replacement for the original board position in the Mark V rack. No hardware modification is required.
• No Reprogramming Required: Unlike cross-series substitutions, a same-part replacement does not require PLC or HMI reconfiguration, preserving existing control logic and sequence programs.
• Avoids Engineering Reconstruction Costs: Sourcing a verified spare eliminates the need for GE migration engineering services, which typically bill at $150–$300/hour with minimum project scopes of 500+ hours.
• Extends Asset Life by 5–10 Years: Facilities that maintain a strategic inventory of critical DS200-series boards can defer system replacement decisions until capital budgets, operational windows, and technology maturity align — on their schedule, not the OEM's.
• Supports Parallel Redundancy Architectures: Mark V systems often operate in TMR (Triple Modular Redundancy) configurations. Maintaining spare boards for all three channels is a standard risk mitigation practice for critical turbine assets.
