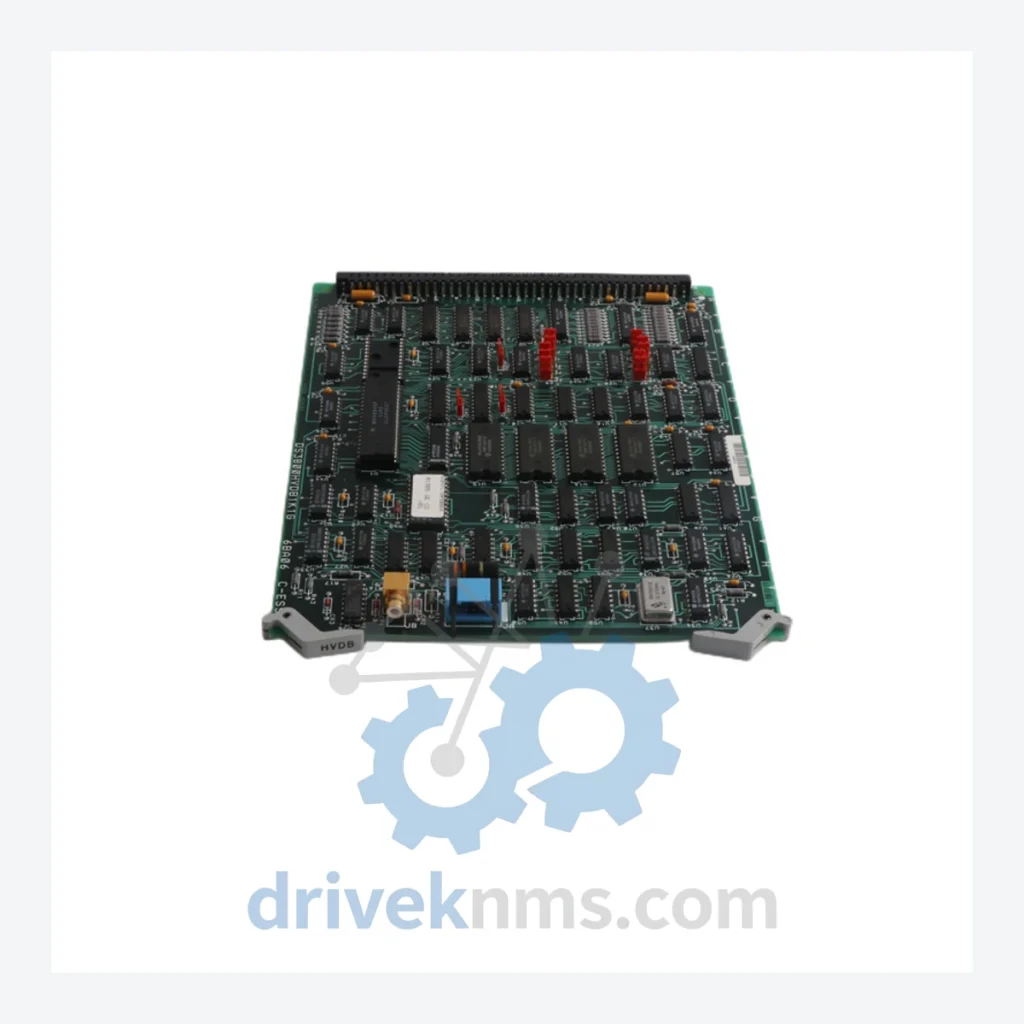

GE DS3800 Video Driver Board Modules: DS3800HVDB1K1G

Technical Dossier

Product Details And Specifications

GE DS3800 Series Technical Notes

The GE DS3800 series constitutes the core hardware platform of the Mark IV Speedtronic Turbine Control System, developed by General Electric for gas turbine, steam turbine, and combined-cycle power generation applications. Deployed across heavy industrial sectors including petrochemical refineries, nuclear power stations, offshore platforms, and LNG processing facilities, the DS3800 architecture represents one of the most widely installed turbine control platforms in global industrial history. Installed base estimates exceed tens of thousands of units across North America, Europe, the Middle East, and Asia-Pacific. Many facilities continue to operate Mark IV systems beyond their original design life due to the prohibitive cost and operational risk of full DCS migration, making long-term spare parts availability a critical operational requirement.

The Evolution of DS3800 Architecture

The Mark IV Speedtronic platform was introduced by GE in the early 1980s as a successor to the Mark I, II, and III relay-based and early solid-state control systems. The DS3800 hardware generation introduced modular printed circuit board architecture, replacing hardwired relay logic with programmable digital control. The system is organized around a VME-style backplane with dedicated slots for CPU, I/O, communications, and specialty function boards.

Key architectural characteristics include: parallel redundant processing across three independent control processors (R, S, T channels), analog and digital I/O distributed across dedicated function boards, serial communications via proprietary GE protocols, and a centralized power distribution architecture using the DS3800HPIB and related power boards. The DS3800 series is not compatible with Mark V (DS200 series) or Mark VI (IS200 series) hardware without full system replacement. Firmware is stored on EPROMs and is version-specific to turbine application software. Interchangeability between sub-variants (e.g., DS3800HVDB1A1A vs. DS3800HVDB1K1G) requires engineering verification of revision compatibility.

As of 2026, the DS3800 / Mark IV platform is classified as end-of-life by GE Vernova. OEM new production has ceased. The installed base is supported exclusively through aftermarket channels, certified repair facilities, and surplus inventory distributors.

DS3800 Full Catalog & Functionalities (SKU List)

Controller / CPU Modules

• DS3800HMPG: Mark IV main processor board, triple-redundant control core
• DS3800HRCA: Redundancy control and arbitration board for R/S/T voting logic
• DS3800HPPC: Peripheral processor and communications controller board

Analog Input / Output Modules

• DS3800HAIA: Analog input board, 16-channel, 4–20 mA / thermocouple compatible
• DS3800HAOA: Analog output board, 8-channel, 4–20 mA signal conditioning
• DS3800NTBA: Thermocouple input board, Type K/J/T, cold junction compensated
• DS3800NANA: Narrow-band analog input board for vibration and speed signals

Digital Input / Output Modules

• DS3800HDIB: Digital input board, 32-channel, 24 VDC discrete contact sensing
• DS3800HDOB: Digital output board, 32-channel, relay and transistor output options
• DS3800HDIA: Digital input board, high-density, 48-channel configuration

Video / Display Driver Modules

• DS3800HVDB1K1G: Video driver board, CRT display interface for Mark IV operator panel — the subject of this listing
• DS3800HVDB1A1A: Video driver board, earlier revision, functionally equivalent with EPROM version differences

Power Supply Modules

• DS3800HPIB: Primary power interface board, 120/240 VAC input, regulated DC bus output
• DS3800HPSA: Power supply assembly, redundant configuration for critical control panels
• DS3800NPPC: Panel power conditioning board, EMI-filtered DC distribution

Communications / Network Modules

• DS3800HCMA: Communications module, serial data link to plant DCS historian
• DS3800HSCA: Serial communications adapter, RS-422/RS-485 multi-drop bus interface
• DS3800HNPA: Network processor board, Ethernet gateway for legacy Mark IV integration

Sourcing Hard-to-Find & Obsolete DS3800 Parts

DriveKNMS supports installed-base sourcing for this series through RFQ review, including model matching, condition checks and documentation requirements before quotation.

Quality Control for the DS3800 Range

DS3800 boards present specific test challenges due to their proprietary backplane bus architecture, EPROM-based firmware, and analog signal conditioning circuits. DriveKNMS applies a structured test protocol for all DS3800 modules prior to dispatch:

• Visual inspection: component-level examination for corrosion, cracked solder joints, damaged traces, and capacitor degradation
• Powered bench test: boards are energized in a Mark IV-compatible test rack with live backplane bus simulation
• Functional verification: I/O channels are exercised against known reference signals; video driver boards (including DS3800HVDB1K1G) are tested against a reference CRT display interface to verify sync signal generation and video output integrity
• EPROM verification: firmware revision is read and logged; mismatched or corrupted EPROMs are replaced with verified revision-correct images
• Burn-in: boards undergo a minimum 24-hour powered soak at operating temperature prior to final inspection
• ESD packaging: all units are shipped in anti-static bags with desiccant, inside rigid foam-lined cartons rated for international freight
