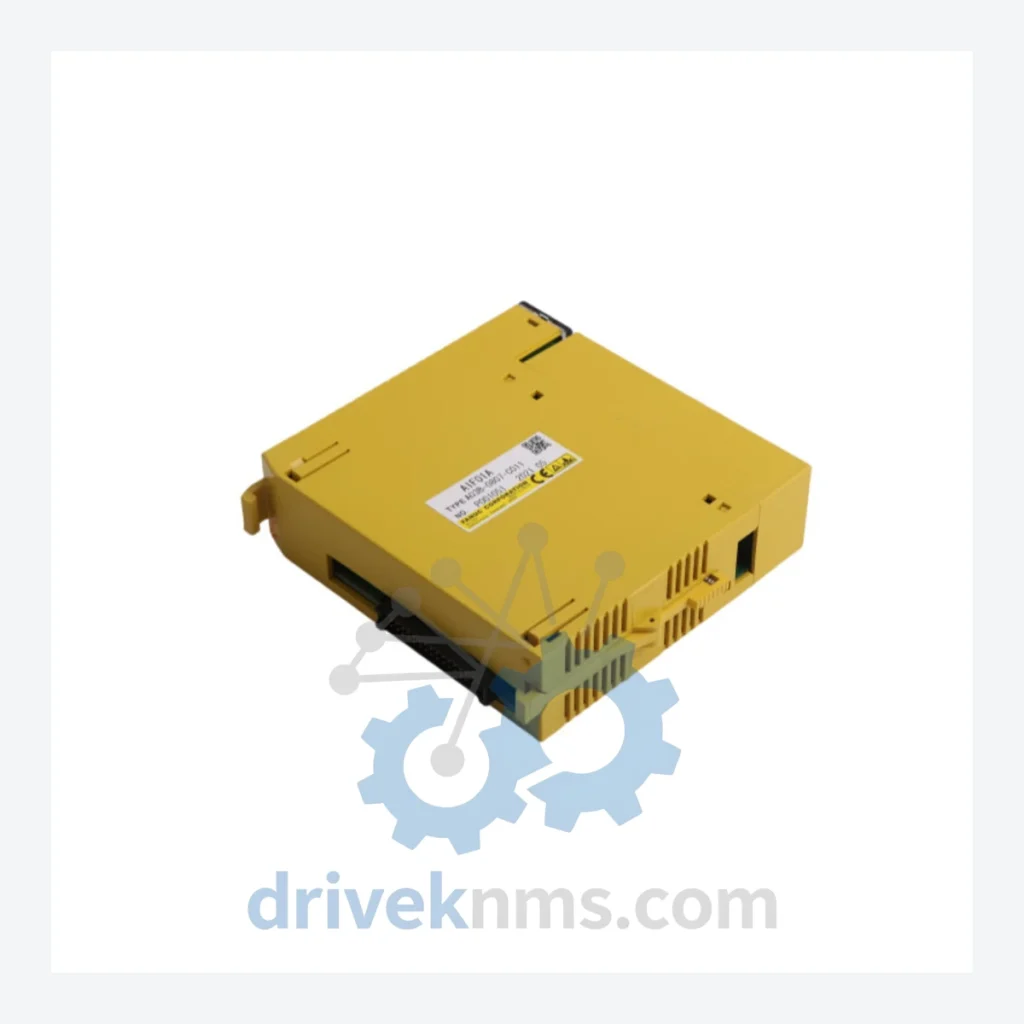

FANUC AIF01A A03B-0807-C011 Axis Interface Board – Obsolete Series 0/16/18 Spare Part

Technical Dossier

Product Details And Specifications

FANUC AIF01A A03B-0807-C011 Axis Interface Board – Obsolete Series 0/16/18 Spare Part

When a FANUC AIF01A axis interface board fails on a production line running legacy Series 0, 16, 18, or 21 CNC controls, the decision tree narrows fast. A full CNC system retrofit — including new controllers, servo drives, spindle drives, re-parameterization, and re-commissioning — routinely costs USD $150,000 to $500,000 per machine, with production downtime measured in weeks, not days. Against that backdrop, a single verified replacement board represents a fraction of the cost and restores full operation without touching the machine's existing configuration.

DriveKNMS maintains physical stock of the A03B-0807-C011. This is not a catalog listing backed by a broker network. Inventory is on-hand and subject to prior sale.

Technical Specifications

Note: Electrical parameters specific to your machine revision should be confirmed against your FANUC maintenance manual. No parameters are listed here that cannot be independently verified.

Solving the Discontinued Hardware Crisis

FANUC Series 0/16/18/21 CNC controls remain embedded in tens of thousands of machining centers, lathes, and grinding machines worldwide. Many of these machines were installed in the 1990s and early 2000s and have been fully amortized — yet they continue to hold tolerances and run programs that took years to develop and validate. The AIF01A board sits at the communication layer between the CNC CPU and the servo amplifier chain. A failure here does not produce a graceful degradation; it produces a hard stop.

FANUC officially discontinued support for these series years ago. Authorized service channels no longer stock the A03B-0807-C011. When a plant maintenance team encounters this failure, the standard OEM response is a system upgrade proposal. For a factory running 20 or 30 of these machines, that proposal is not a solution — it is a capital expenditure crisis.

The practical alternative is a verified replacement board sourced from a specialist supplier with documented stock. This approach has been used by automotive tier-1 suppliers, aerospace subcontractors, and heavy equipment manufacturers to extend the operational life of proven CNC assets by 5 to 10 years beyond the OEM's stated end-of-support date. The economics are straightforward: the cost of maintaining a critical spare inventory for a fleet of legacy CNCs is a rounding error compared to the capital and engineering cost of a fleet-wide retrofit.

For plant managers facing pressure to justify aging equipment, the argument is not sentimental. A machine that holds tolerance, runs proven programs, and requires only periodic board-level maintenance is a productive asset. The decision to retire it should be driven by capability gaps, not by parts availability — and parts availability is a solvable problem.

Condition & Reliability Assurance

Obsolete boards sourced from secondary markets carry real risk. DriveKNMS applies a 5-step inspection protocol before any A03B-0807-C011 is shipped:

• Step 1 – Visual and Physical Inspection: Board examined for physical damage, burn marks, cracked traces, and connector pin condition. Corroded or bent pins are documented and addressed before dispatch.
• Step 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary failure point on boards of this age. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with aged capacitors are recapped with equivalent-spec components before sale as refurbished units.
• Step 3 – Firmware Version Verification: Where firmware version markings are present on onboard EPROMs or flash devices, these are documented and disclosed to the buyer. Mismatched firmware versions between replacement boards and host systems are a known source of post-installation faults.
• Step 4 – Pin and Connector Integrity Check: All edge connectors and board-to-board connectors are cleaned and inspected under magnification. Contact resistance is verified where test points are accessible.
• Step 5 – Functional Bench Test (where applicable): Boards are powered and tested on compatible test fixtures where available. Test results are documented. Boards that cannot be bench-tested are clearly identified as inspected-only.

Condition grade (New Old Stock, Tested Refurbished, or Inspected Used) is disclosed in full at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The A03B-0807-C011 installs directly into the existing slot on compatible FANUC control cabinets. No mechanical modification is required.
• No re-programming required: CNC parameters, tool offsets, and part programs reside in the CNC CPU and PMC — not on the AIF01A board itself. Replacing this board does not require re-entering machine parameters or re-loading programs.
• No engineering re-work: Unlike a system retrofit, a board-level replacement does not require re-wiring, re-commissioning, or re-validation of the machine's safety circuits. Downtime is measured in hours, not weeks.
• Preserves existing tooling investment: Machines running on FANUC Series 0/16/18 controls often have decades of proven G-code programs, custom macros, and fixture offsets. A board replacement preserves this investment entirely.
• Cost-effective asset protection: Maintaining one or two spare AIF01A boards per machine fleet is a standard risk mitigation practice for facilities that cannot afford unplanned downtime on these assets.

FAQ

Q: What warranty applies to an obsolete part like the A03B-0807-C011?
A: DriveKNMS provides a 90-day warranty against defects in the supplied unit under normal operating conditions. Warranty terms are confirmed in writing at the time of sale. Extended warranty options are available for volume orders — contact us to discuss.

Q: How do I know whether I'm receiving a new or refurbished unit?
A: Condition is disclosed explicitly before invoice. We do not ship units of a different condition grade than quoted without prior written agreement. If New Old Stock is available, it is identified as such. Refurbished units are accompanied by a summary of the work performed.

Q: Should I stock more than one spare board?
A: For facilities running multiple machines on FANUC Series 0/16/18 controls, holding a minimum of two AIF01A boards per 10 machines is a reasonable baseline. The A03B-0807-C011 is no longer manufactured, and secondary market availability will continue to tighten. Procurement cost today is materially lower than emergency sourcing cost during an unplanned outage.

Q: Can this board be used across different FANUC Series 0/16/18 variants?
A: Compatibility depends on the specific control model and revision. Buyers are advised to confirm the exact CNC model number and existing board revision before ordering. DriveKNMS technical staff can assist with compatibility verification — provide your CNC model and existing board markings when inquiring.

Q: What is the lead time?
A: In-stock units ship within 2 business days of payment confirmation. International shipping to most destinations is available via DHL, FedEx, or UPS.
