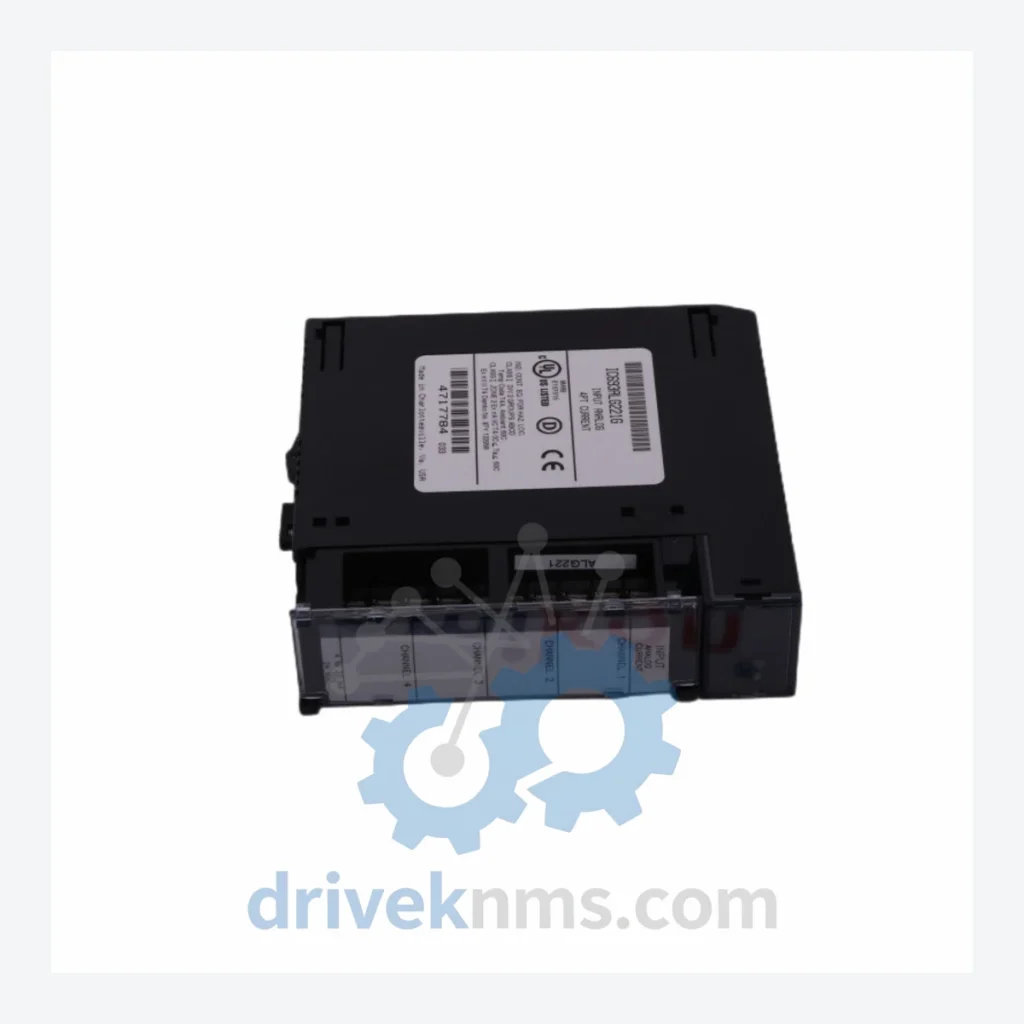

GE IC693ALG221 Analog Input Module – Obsolete Series 90-30 Spare Part

Technical Dossier

Product Details And Specifications

GE IC693ALG221 Analog Input Module – Obsolete Series 90-30 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters listed above are drawn from published GE Fanuc documentation. Any parameters not confirmed by official documentation are intentionally omitted to protect equipment safety.

Solving the Discontinued Hardware Crisis

The GE Series 90-30 platform was deployed extensively across process industries — oil & gas, water treatment, food & beverage, and discrete manufacturing — throughout the 1990s and 2000s. Many of these installations remain operational today because the underlying process logic is sound, the hardware has proven reliable, and the cost of replacement is prohibitive.

The IC693ALG221 sits at a critical junction in these systems. It converts 4–20 mA field signals from transmitters, flow meters, and pressure sensors into digital values the CPU can act on. There is no generic substitute. The module communicates over the Series 90-30 backplane using a proprietary protocol; a replacement from a different PLC family requires hardware adapters, software re-mapping, and in most cases a full I/O audit — work that can consume weeks of engineering time.

For plant managers facing pressure to retire aging infrastructure, the practical calculus is straightforward: a single IC693ALG221 spare, sourced and held in inventory, can defer a multi-million-dollar system replacement by five to ten years. That deferral window allows facilities to plan migrations on their own schedule, align capital expenditure with budget cycles, and avoid the operational risk of emergency cutover.

Facilities that have extended Series 90-30 system life successfully share a common approach: they maintain a minimum of two spare modules for each critical I/O type, they document firmware versions across all installed CPUs, and they establish a single-source supplier relationship for obsolete components before a failure event — not after.

Condition & Reliability Assurance

Sourcing a discontinued module from the secondary market carries real risk. DriveKNMS applies a five-step qualification process to every IC693ALG221 unit before it is offered for sale:

• Visual and mechanical inspection: Boards are examined for physical damage, connector pin condition, and label integrity. Units with bent pins, cracked housings, or evidence of field repair are rejected.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in modules stored for extended periods. Each unit is assessed for capacitor condition; units showing signs of electrolyte leakage or bulging are removed from inventory.
• Firmware version verification: Where applicable, firmware revision is documented and disclosed. Customers integrating into existing Series 90-30 racks need to confirm firmware compatibility with their CPU revision.
• Pin and connector corrosion check: Backplane connector pins are inspected under magnification for oxidation and corrosion. Affected pins are treated or the unit is rejected.
• Functional power-on test: Units are powered and checked for basic operational response prior to packaging.

Condition grade and any observed cosmetic wear are disclosed at the time of quotation. We do not represent refurbished units as new unless they meet new-equivalent standards.

Key Features for System Maintenance

Can you source other Series 90-30 modules?
Yes. DriveKNMS maintains inventory across the Series 90-30 I/O range, including digital input/output modules, CPU units, and power supplies. Contact us with your full BOM for a consolidated quotation.
