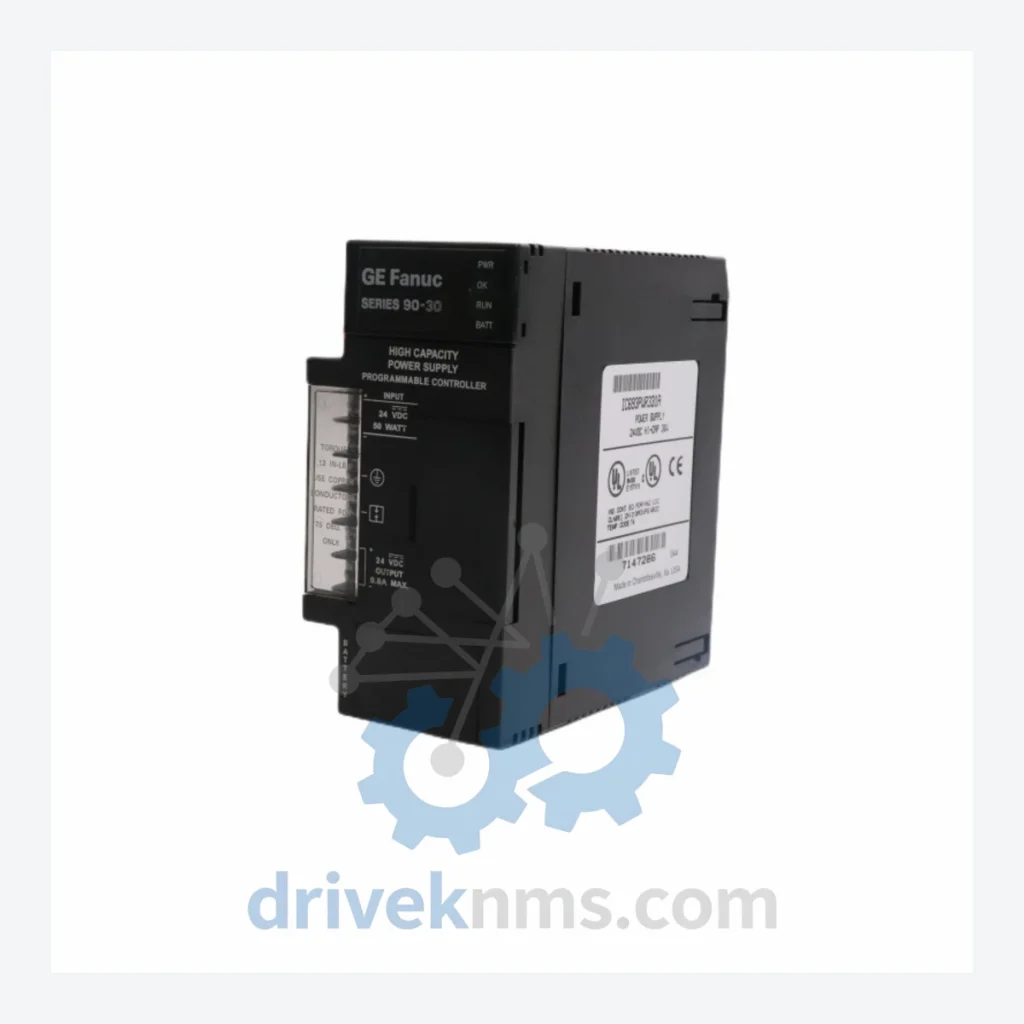

GE Series 90-30 (IC693) Modules: IC693PWR331

Technical Dossier

Product Details And Specifications

GE Series 90-30 (IC693) Series Technical Notes

The GE Series 90-30, identified by the IC693 part number prefix, is one of the most widely deployed programmable logic controller (PLC) platforms in global heavy industry. Installed across petrochemical refineries, nuclear auxiliary systems, steel rolling mills, water treatment facilities, and discrete manufacturing lines, the Series 90-30 architecture has accumulated decades of field-proven reliability. Its modular rack-based design — supporting 5-slot, 10-slot, and 14-slot configurations — made it the standard choice for mid-range process automation from the early 1990s through the 2010s. As of 2026, the platform is in its end-of-life phase, meaning OEM production has ceased for most modules; however, the installed base remains enormous, creating sustained demand for certified spare parts and lifecycle extension services.

The Evolution of Series 90-30 (IC693) Architecture

The Series 90-30 was introduced by GE Fanuc Automation in the early 1990s as a successor to the Series Six and Series Five platforms. Its defining architectural innovation was the use of a passive backplane bus, allowing CPU, I/O, communications, and power supply modules to be mixed freely within a single rack — a significant departure from the fixed-function controllers it replaced.

Generation 1 (IC693 Classic, ~1991–1998): Initial CPUs such as the IC693CPU311 and IC693CPU313 offered limited memory (6K–12K words) and supported basic ladder logic. Power supplies in this era, including the IC693PWR321, operated on 120/240VAC input. Communications were limited to serial (RS-232/RS-485) via dedicated modules.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Generation 3 / Migration Era (~2007–present): GE (later rebranded as Emerson / Proficy) introduced the RX3i (IC695 series) as the forward-compatible successor. The RX3i shares the same programming environment (Proficy Machine Edition) but uses a high-speed PCI backplane. Many facilities operate mixed IC693/IC695 environments during phased migration. For sites that cannot migrate, lifecycle extension through certified spare parts is the only viable strategy.

Series 90-30 (IC693) Full Catalog & Functionalities — SKU Reference Index

The following SKUs represent the core module types within the IC693 ecosystem. Each entry reflects a distinct functional role within the rack architecture. DriveKNMS maintains sourcing channels for all models listed below, including discontinued variants.

Power Supply Modules

• IC693PWR321: 120/240VAC input, 15W output; standard supply for 5-slot racks.
• IC693PWR322: 24VDC input, 15W output; for DC-powered panel environments.
• IC693PWR330: 120/240VAC input, 30W output; high-capacity supply for fully loaded racks.
• IC693PWR331: 120/240VAC input, 30W output; primary power supply for 10/14-slot racks — current listing SKU.
• IC693PWR332: 24VDC input, 30W output; DC variant for battery-backed or solar-assisted installations.

CPU / Controller Modules

• IC693CPU311: Entry-level CPU, 6K word program memory, no Ethernet.
• IC693CPU313: 12K word memory, supports floating point; common in legacy SCADA integrations.
• IC693CPU323: 16K word memory, enhanced instruction set.
• IC693CPU340: Ethernet-capable CPU with built-in 10BaseT port; widely used in networked plant environments.
• IC693CPU350: 32K word memory, dual Ethernet ports, high-speed interrupt processing.
• IC693CPU360: 240K word memory; suited for complex batch and continuous process control.
• RFQ terms review: Commercial terms are confirmed during RFQ review based on model, condition, documentation, quantity and destination.
• IC693CPU374: Top-tier CPU with 512K word memory and motion control coordination capability.

Discrete I/O Modules

• IC693MDL340: 24VDC discrete input, 8-point; standard DI module for field device sensing.
• IC693MDL390: 120VAC discrete input, 8-point; for legacy AC field wiring.
• IC693MDL740: 12/24VDC discrete output, 8-point, relay isolated; used in motor starter and valve control circuits.
• IC693MDL752: 24VDC discrete output, 16-point, transistor sourcing; high-density DO for actuator banks.

Analog I/O Modules

• IC693ALG220: 4-channel analog input, 4–20mA / 0–10V; standard process variable acquisition.
• IC693ALG390: 4-channel analog output, 4–20mA; for control valve and VFD setpoint transmission.
• IC693ALG442: 8-channel analog input, high-resolution 16-bit; used in precision temperature and pressure loops.

Communications & Specialty Modules

• IC693CMM311: Serial communications module, RS-232/RS-485; for Modbus RTU and legacy device integration.
• IC693CMM321: Ethernet interface module; adds network connectivity to non-Ethernet CPUs.
• IC693BEM331: Genius Bus Controller; interfaces the 90-30 rack to GE's Genius I/O field bus network.

Sourcing Hard-to-Find & Obsolete Series 90-30 (IC693) Parts

DriveKNMS addresses this through three sourcing channels:

• Condition review: Available condition, photos, test records and documentation are checked before quotation according to the requested model.
• Repair & Refurbishment: For modules with repairable faults (capacitor degradation, failed output drivers, corrupted firmware), DriveKNMS offers board-level repair with post-repair functional testing against OEM specifications.
• Cross-Reference & Substitution Advisory: Where a specific IC693 module is genuinely unavailable, DriveKNMS provides a written substitution recommendation — including RX3i (IC695) migration options — with compatibility notes for the customer's existing rack and CPU firmware version.

Quality Control for the Series 90-30 (IC693) Range

The IC693 backplane uses a parallel bus architecture that is sensitive to impedance mismatches caused by damaged edge connectors or degraded module logic. Standard visual inspection is insufficient for this platform. DriveKNMS applies the following test protocol to all IC693 modules prior to shipment:

• CPU Modules: Full firmware boot verification, memory read/write cycle test, Ethernet port link and packet integrity test (where applicable), and ladder logic execution test using a standardized diagnostic program.
• I/O Modules: Point-by-point channel verification using calibrated signal sources. Isolation resistance test between field-side and logic-side circuits. For analog modules, linearity and offset error measurement across the full input/output range.
• Communications Modules: Protocol handshake verification (Modbus, Genius Bus, Ethernet/IP) using hardware simulators. Baud rate and framing error testing across all supported speeds.
