GE IC694 (Series 90-30) Series: Comprehensive Module Range and Technical Overview

The GE Fanuc Series 90-30 (IC694 platform) is one of the most widely deployed programmable logic controller families in global heavy industry. Installed across petrochemical refineries, nuclear auxiliary systems, steel rolling mills, water treatment facilities, and discrete manufacturing lines, the IC694 rack-based architecture has accumulated decades of field runtime. Its modular backplane design — supporting up to 10 slots per rack with multi-rack expansion — made it the default automation backbone for mid-scale process control from the early 1990s through the 2010s. Many facilities continue to operate IC694-based systems under long-term maintenance contracts, making spare part availability a direct operational risk factor.

The Evolution of IC694 Architecture

The Series 90-30 platform launched under GE Fanuc Automation in the early 1990s as a successor to the Series Six and Series Five PLC families. The IC694 designation specifically identifies the 5-slot and 10-slot rack expansion hardware generation, distinguishing it from the earlier IC693 base rack series. Key architectural milestones include:

• Generation 1 (IC693/IC694 co-era, ~1993–1998): Parallel backplane bus, proprietary GE Genius I/O network, RS-232/RS-485 serial communications. Limited memory CPUs (IC693CPU311/IC694CPU300).
• Generation 2 (~1999–2006): Introduction of Ethernet TCP/IP modules (IC694ETM001), expanded CPU memory (IC694CPU360/364), and compatibility with Profibus-DP adapters. This generation saw the widest industrial adoption.
• Generation 3 (~2007–2015): High-capacity CPUs (IC694CPU374), enhanced diagnostics, and integration with Proficy Machine Edition programming software. Backward compatibility maintained across all rack types.
• End-of-Life / Mature Phase (2016–present): GE (later Emerson / Intelligent Platforms) formally transitioned new projects to the RX3i (IC695) platform. IC694 modules entered the mature/declining lifecycle phase. OEM production of select modules has ceased, making secondary market sourcing and certified refurbishment the primary supply channel for maintenance operations.

Compatibility note: IC694 expansion racks are electrically and mechanically compatible with IC693 base racks. However, CPU firmware versions must be verified before mixing module generations to avoid bus communication faults.

IC694 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core IC694 module range. Each entry reflects verified product classifications within the Series 90-30 ecosystem. Procurement teams should confirm firmware revision compatibility with their installed CPU before ordering.

Power Supply Modules

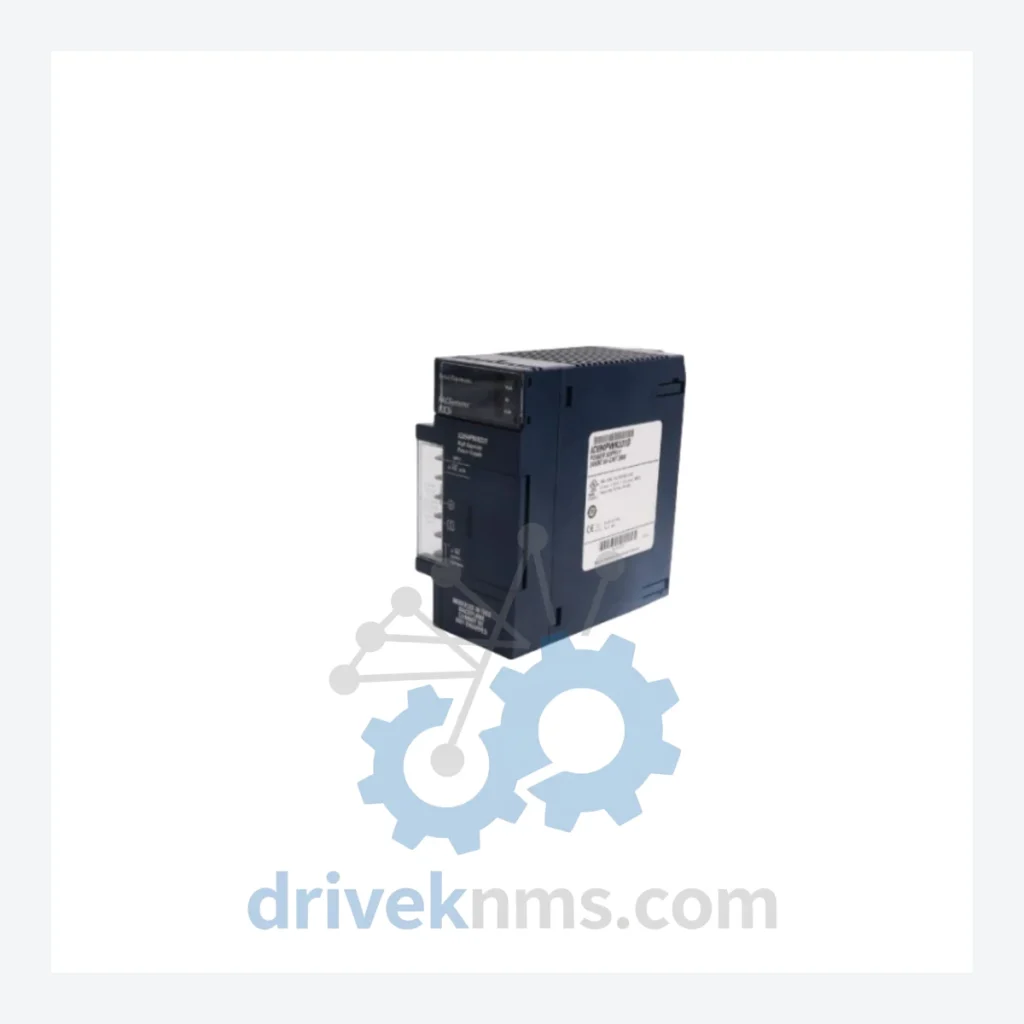

• IC694PSM001: Expansion power supply, 120/240 VAC input, for IC694 expansion racks — the subject of this listing.
• IC694PWR321: 120/240 VAC power supply, 30W output, standard base rack supply.
• IC694PWR330: 24 VDC input power supply, 30W, for DC-powered panel environments.
• IC694PWR331: High-capacity 120/240 VAC power supply, 40W, for fully loaded 10-slot racks.

CPU / Controller Modules

• IC694CPU300: Entry-level CPU, 6K program memory, no Ethernet — legacy installations only.
• IC694CPU310: 12K word memory CPU, serial port, standard mid-range controller.
• IC694CPU360: 240K word memory, floating point, serial + Ethernet-ready via add-on module.
• IC694CPU364: Embedded Ethernet TCP/IP CPU, 240K word memory — most common high-spec IC694 CPU.
• IC694CPU374: High-performance CPU, 512K word memory, fastest scan time in the IC694 family.

Analog I/O Modules

• IC694ALG220: 4-channel analog voltage/current input, 12-bit resolution.
• IC694ALG221: 4-channel analog current input (4–20 mA), isolated.
• IC694ALG222: 8-channel analog voltage input, single-ended, 12-bit.
• IC694ALG390: 2-channel analog voltage/current output, 12-bit, 0–10V / 4–20 mA selectable.
• IC694ALG391: 4-channel analog current output, 12-bit, 4–20 mA.

Digital I/O Modules

• IC694MDL330: 8-point 120 VAC discrete input module, isolated.
• IC694MDL340: 16-point 120 VAC discrete input module.
• IC694MDL645: 16-point 24 VDC positive logic discrete input.
• IC694MDL740: 8-point relay output module, 2A per point, Form C contacts.
• IC694MDL754: 16-point 24 VDC positive logic discrete output, 0.5A per point.

Communications & Specialty Modules

• IC694ETM001: Ethernet TCP/IP communications module, 10/100 Mbps, SRTP/Modbus TCP.
• IC694BEM331: Genius Bus Controller, interfaces IC694 rack to GE Genius I/O network.
• IC694DSM314: Motion control / high-speed counter module, 4-axis positioning.

Sourcing Hard-to-Find & Obsolete IC694 Parts

With GE Fanuc's IC694 platform in its end-of-life phase, procurement managers face three recurring supply chain risks: (1) OEM stock depletion for low-volume modules such as the IC694PSM001 expansion power supply, (2) counterfeit or non-tested refurbished units entering the secondary market, and (3) lead times extending to 16–26 weeks from distribution channels that still carry the line.

DriveKNMS maintains a dedicated sourcing network for IC694 legacy hardware. Our approach:

• Multi-source verification: Each unit is cross-referenced against at least two independent supply channels before procurement confirmation, reducing the risk of single-source counterfeit exposure.
• Lifecycle extension support: For facilities operating IC694 systems under 5–10 year maintenance horizons, we offer standing inventory reservation agreements to lock in availability before further OEM stock erosion.
• Compliant alternatives: Where a specific IC694 module is confirmed discontinued with no remaining stock, we provide documented migration guidance to IC695 (RX3i) equivalents, including backplane compatibility notes and firmware upgrade requirements.

Quality Control for the IC694 Range

The IC694 backplane uses a proprietary parallel bus architecture that is sensitive to connector oxidation, capacitor degradation, and firmware corruption — failure modes that are not detectable through visual inspection alone. DriveKNMS applies the following test protocol to all IC694 modules prior to shipment:

• Power-on functional test: Each module is installed in a live IC694 test rack and powered through a full initialization cycle. CPU modules are loaded with a diagnostic ladder program to verify scan execution and I/O addressing.
• Backplane bus integrity check: Communication between the module under test and adjacent slots is verified to confirm no bus contention or address conflicts.
• Analog calibration verification (ALG modules): Input and output channels are tested against calibrated reference signals. Deviation beyond ±0.5% of full scale triggers rejection.
• Burn-in period: Modules flagged as refurbished undergo a minimum 48-hour continuous operation burn-in before passing to final inspection.
• Firmware revision logging: CPU and communications modules are documented with their installed firmware version, provided to the buyer for compatibility verification.

All units ship with a 12-month warranty covering functional defects. Export documentation, commercial invoices, and packing lists are provided as standard for customs clearance. Payment accepted in USD, EUR, CNY, and HKD. Shipping via DHL Express, FedEx International Priority, or UPS Worldwide.
