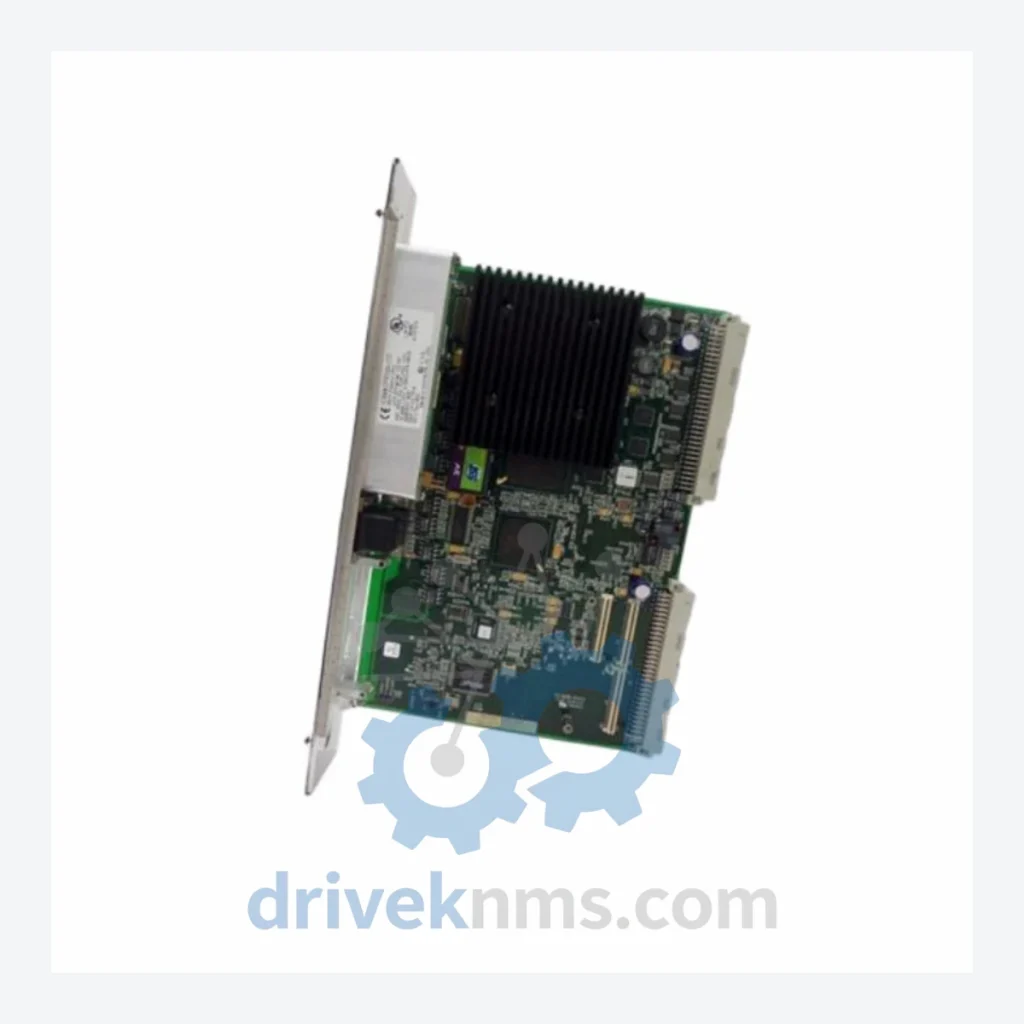

GE Fanuc IC698 Series 90-70 Modules – IC698CPE020-JV

Technical Dossier

Product Details And Specifications

GE Fanuc IC698 Series 90-70 Technical Notes

The Evolution of IC698 Architecture

The IC698 series progressed through three identifiable hardware generations. The first generation (circa 1988–1995) established the 9-slot and 17-slot VME-compatible rack form factor, single-bus backplane at 5 V/12 V, and the original CPE010/CPE020 processor family running at clock speeds below 20 MHz with battery-backed SRAM program storage. Firmware was stored on socketed EPROM, and inter-module communication relied on the proprietary GE Genius bus at 153.6 kbps.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

IC698 Full Catalog & Functionalities (SKU List)

Central Processing Units (CPU)

• IC698CPE010: Series 90-70 CPU, 512 KB user memory, single Ethernet port, standard scan
• IC698CPE020: Series 90-70 CPU, 1 MB user memory, enhanced instruction set, Genius bus master
• IC698CPE020-JV: IC698CPE020 revision JV; field-upgraded firmware, extended temperature tolerance
• IC698CPE030: Series 90-70 CPU, 2 MB user memory, floating-point coprocessor, flash storage
• IC698CPE040: Series 90-70 CPU, 4 MB user memory, dual Genius bus, high-speed interrupt inputs
• IC698CPE330: Series 90-70 CPU, 3 MB user memory, native TCP/IP, IEC 61131-3 runtime
• IC698CPE400: Series 90-70 CPU, 10 MB user memory, dual Ethernet, hot-standby redundancy capable

Discrete Input Modules (DI)

• IC698MDL230: 16-point 120 VAC discrete input, isolated, 10 ms filter, DIN rail compatible
• IC698MDL240: 32-point 24 VDC discrete input, source/sink configurable, 1 ms filter
• IC698MDL241: 32-point 24 VDC discrete input, high-density, individually fused, diagnostic reporting
• IC698MDL632: 16-point 24 VDC discrete output, 0.5 A per point, short-circuit protected
• IC698MDL740: 32-point 24 VDC discrete output, source type, 0.25 A per point, group isolation

Analog Input / Output Modules (AI/AO)

• IC698ALG220: 16-channel analog input, 4–20 mA / 0–10 V selectable, 12-bit resolution
• IC698ALG221: 16-channel analog input, ±10 V / ±20 mA, 14-bit resolution, HART-ready
• IC698ALG390: 8-channel analog output, 4–20 mA, 12-bit, loop-powered, open-wire detection
• IC698ALG391: 8-channel analog output, ±10 V / 4–20 mA, 14-bit, simultaneous update

Communication & Network Adapters

• IC698CMM001: Serial communication coprocessor, RS-232/RS-485, SNP/SNPX/Modbus RTU
• IC698CMM002: Dual-port serial coprocessor, simultaneous multi-protocol, 115.2 kbps max
• IC698ETM001: Ethernet TCP/IP module, 10/100 Mbps, SRTP/Modbus TCP, web diagnostics

Power Supply Modules

• IC698PSA100: 120/240 VAC input power supply, 90 W output, 5 V/12 V/24 V rails, rack-mount
• IC698PSA350: 120/240 VAC input power supply, 150 W output, redundancy-capable, active current sharing

Redundancy & Specialty Modules

• IC698RMX128: Redundancy memory exchange module, 128 KB transfer buffer, bumpless switchover
• IC698RMX228: Redundancy memory exchange module, 228 KB buffer, IC695 RX3i bridge compatible

Quality Control for the IC698 Range

The IC698 backplane uses a dual-bus VME architecture with active termination. Modules removed from service frequently exhibit degraded bus termination resistors, failed tantalum capacitors on the 5 V rail, and SRAM data retention failures due to depleted backup batteries. DriveKNMS applies a structured test protocol to all IC698 units prior to shipment.

CPU modules (CPE series) undergo: (1) full rack power-on with known-good backplane and power supply; (2) firmware version verification against GE Fanuc release notes; (3) Proficy Machine Edition connectivity test via SNP and Ethernet; (4) 72-hour burn-in at 45°C ambient; (5) Genius bus master functional test with a minimum 4-node Genius drop configuration. Analog modules (ALG series) are tested against NIST-traceable calibration references at 0%, 25%, 50%, 75%, and 100% of rated input/output range, with linearity error recorded and compared to OEM specification (typically ±0.1% full scale). Communication modules (CMM, ETM) are tested for protocol handshake integrity, frame error rate at maximum baud, and isolation resistance between communication ports and chassis ground (>100 MΩ at 500 VDC).

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.
