GE IC698RMX016-ED Redundant Memory Xchange Module – Obsolete PACSystems RX7i Spare Part

Technical Dossier

Product Details And Specifications

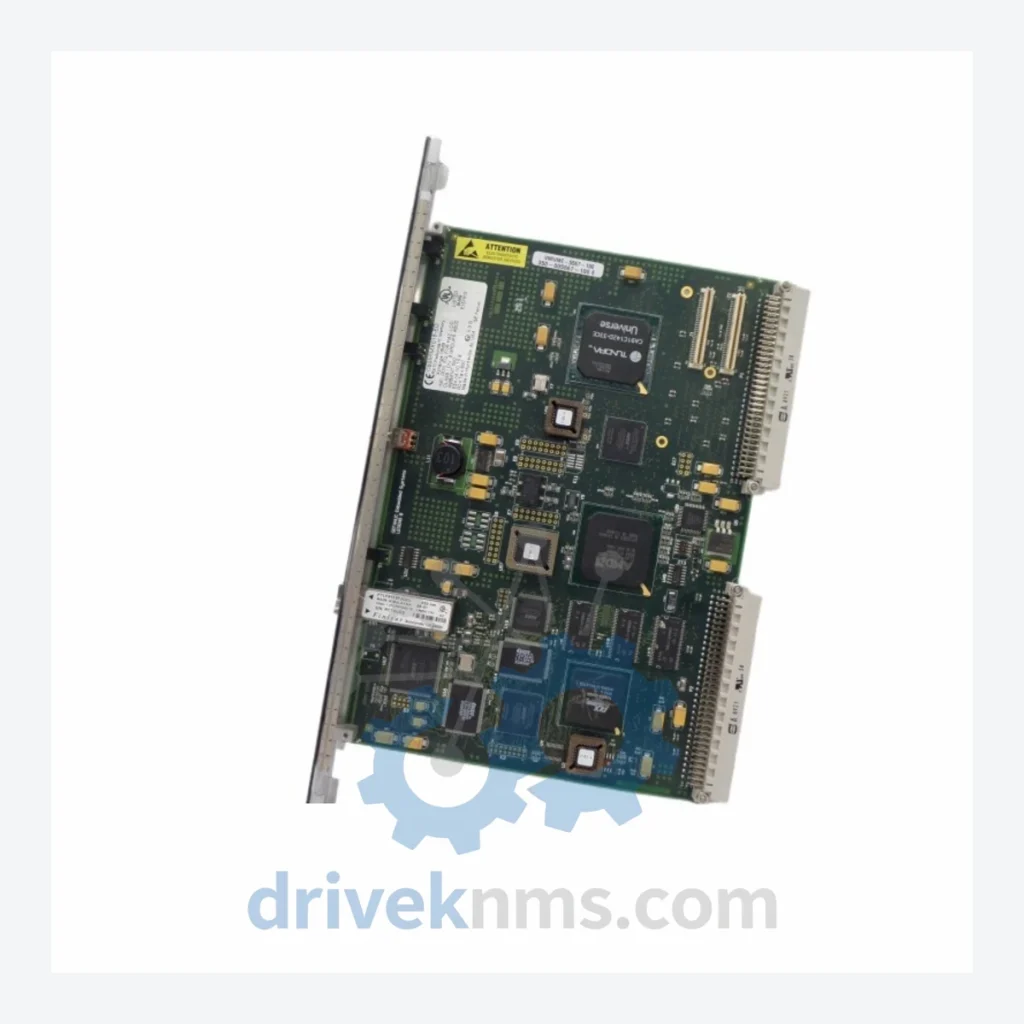

GE IC698RMX016-ED Redundant Memory Xchange Module – Obsolete PACSystems RX7i Spare Part

When a GE PACSystems RX7i redundant memory xchange module fails, the consequences extend far beyond a single component. The IC698RMX016-ED is the backbone of the RX7i's hot-standby redundancy architecture. Without it, the entire redundant control pair collapses to simplex operation — or shuts down entirely. For process industries running continuous operations, that failure scenario triggers emergency engineering assessments, potential line stoppages, and, in the worst case, a forced migration to a modern PLC platform that can cost upward of USD $500,000 when engineering, re-commissioning, and production downtime are factored in.

GE Automation & Controls discontinued the IC698RMX016-ED as part of the broader PACSystems RX7i end-of-life roadmap. Replacement units are no longer available through authorized distribution channels. DriveKNMS maintains verified physical stock of this module, sourced through controlled industrial asset recovery channels, and subjects every unit to a documented multi-step quality process before shipment.

Technical Specifications

Note: Electrical parameters not listed here are not independently verified by DriveKNMS. Refer to GE publication GFK-2222 for original design specifications.

Solving the Discontinued Hardware Crisis

The GE PACSystems RX7i platform was deployed extensively in oil & gas, power generation, water treatment, and heavy manufacturing facilities throughout the 2000s and 2010s. Many of these installations are mid-lifecycle — the mechanical and process infrastructure they control has 15–25 years of remaining service life. The control system, however, has been orphaned by its manufacturer.

The IC698RMX016-ED sits at the center of the RX7i's value proposition: hardware redundancy. Removing it from service does not simply degrade performance — it eliminates the fault-tolerance that justified the original capital expenditure. Plant managers facing this situation have three realistic options:

Option 1 – Full platform migration: Replace the RX7i with a current-generation PLC. Engineering costs alone typically run USD $150,000–$400,000 for a mid-size system, before factoring in I/O rewiring, SCADA reconfiguration, operator retraining, and validation downtime.

Option 2 – Operate in simplex mode: Remove the redundancy pair and run a single CPU. This eliminates the safety margin the system was designed around and may violate site safety or insurance requirements.

Option 3 – Source a verified replacement IC698RMX016-ED: Restore the system to its original redundant architecture at a fraction of the cost of either alternative. This is the strategy that protects capital assets, preserves institutional process knowledge embedded in existing ladder logic, and defers a multi-million-dollar capital project until it is operationally justified — not forced by a single component failure.

For facilities managing 5–10 year asset extension plans, maintaining a minimum of one cold-spare IC698RMX016-ED per redundant CPU pair is standard risk management practice. The cost of a spare module is measured in thousands. The cost of an unplanned migration is measured in hundreds of thousands.

Condition & Reliability Assurance

Every IC698RMX016-ED unit processed by DriveKNMS passes a documented 5-step quality protocol before it is offered for sale:

Step 1 – Visual and mechanical inspection: Boards are examined under magnification for physical damage, connector pin deformation, and evidence of thermal stress or arc damage.

Step 2 – Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in modules of this vintage. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned by qualified technicians or removed from inventory.

Step 3 – Firmware version verification: Where accessible, firmware revision is documented and cross-referenced against known compatibility requirements for the RX7i CPU firmware versions in active field use.

Step 4 – Connector and pin corrosion inspection: Backplane connectors and I/O pins are inspected and cleaned. Units with corrosion that cannot be remediated to specification are rejected.

Step 5 – Functional burn-in and documentation: Units are powered and functionally tested where test infrastructure permits. All findings are documented and accompany the shipment.

Units are classified as New Surplus (factory-sealed, never installed) or Refurbished (inspected, reconditioned, and tested). Classification is stated explicitly on every quotation and invoice.

Key Features for System Maintenance

The IC698RMX016-ED is a direct drop-in replacement for the original module position in any RX7i redundant chassis configuration. No firmware changes to the primary or secondary CPU are required for module substitution. No ladder logic modifications are necessary. No re-commissioning of the redundancy pair is required beyond the standard RX7i redundancy synchronization sequence documented in GFK-2222.

This means maintenance teams can execute the replacement during a planned maintenance window without engaging a controls engineering contractor. The avoided engineering cost alone — typically USD $5,000–$15,000 per site visit for specialized GE PACSystems expertise — represents a direct return on the spare parts investment.

For facilities with multiple RX7i redundant pairs, a centralized spare parts strategy covering IC698RMX016-ED alongside the CPU modules (IC698CPE030, IC698CPE040) and power supplies provides comprehensive protection against the most statistically probable failure points in an aging system.

FAQ

Q: What warranty applies to a discontinued module like the IC698RMX016-ED?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms are confirmed in writing on each order.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced from documented industrial asset recovery channels — decommissioned plant equipment, authorized surplus dealers, and controlled OEM overstock. We do not source from unverified secondary markets. Physical markings, board revision codes, and serial number formats are verified against known-good references.

Q: Should I buy more than one unit?
A: For any facility running RX7i redundant pairs, holding a minimum of one spare IC698RMX016-ED per pair is a defensible risk management position. Global inventory of this module is finite and declining. Lead times for sourcing will increase as remaining stock is absorbed. Procurement decisions deferred 12–24 months carry meaningful availability risk.

Q: Can this module be used with GE Series 90-70 systems?
A: The IC698RMX016-ED is specific to the PACSystems RX7i redundancy architecture. It is not compatible with Series 90-70 hardware. Confirm your chassis model before ordering.
