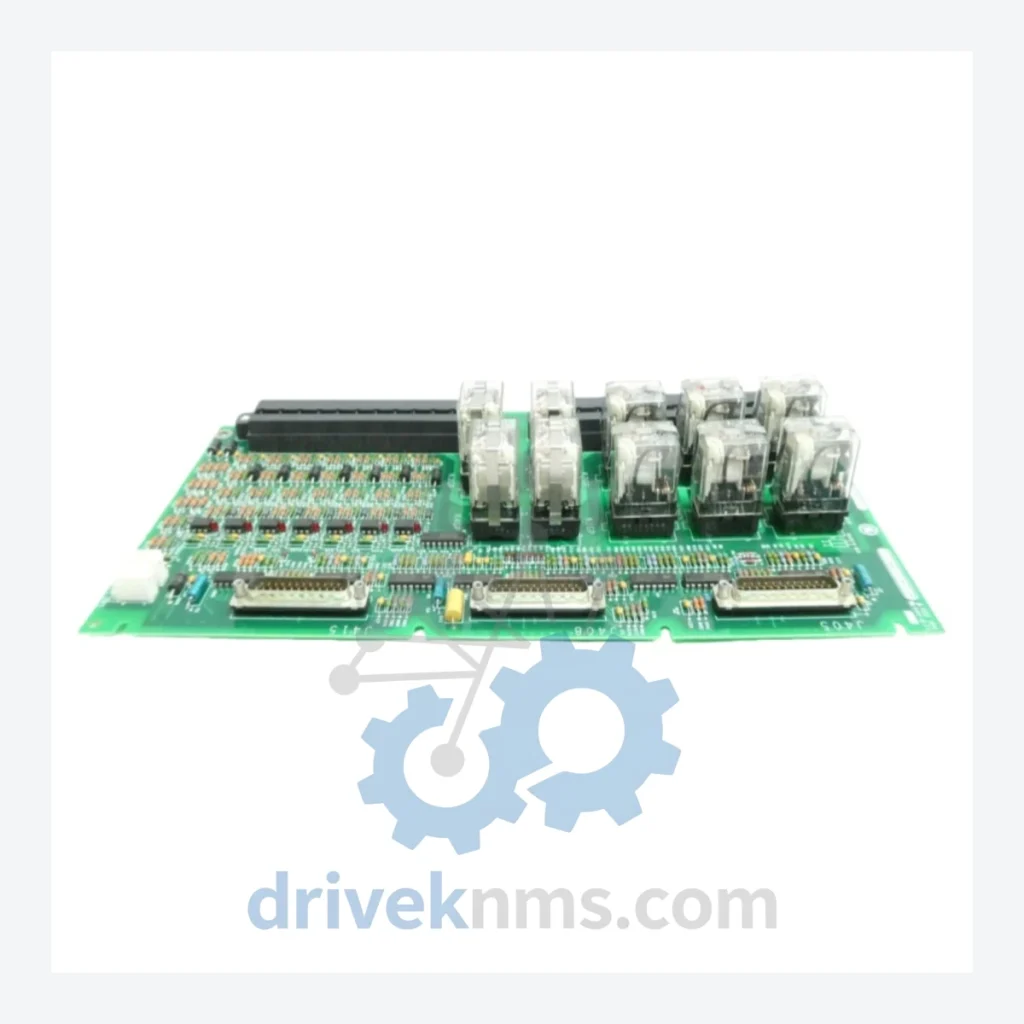

GE IS200ECTBG1A Exciter Contact Terminal Board – Obsolete Mark VI Spare Part

Technical Dossier

Product Details And Specifications

GE IS200ECTBG1A Exciter Contact Terminal Board – Obsolete Mark VI Spare Part

When a single terminal board failure forces a plant manager to choose between a six-figure emergency procurement scramble and a multi-million-dollar control system overhaul, the calculus is brutal. The GE IS200ECTBG1A Exciter Contact Terminal Board is a core I/O interface within the GE Mark VI turbine control platform — a system that remains operational in hundreds of gas and steam turbine installations worldwide, despite GE having discontinued active production of this board series. Replacement with a modern Mark VIe architecture requires not only new hardware but full re-engineering of I/O mapping, HMI reconfiguration, and turbine protection logic revalidation — a process that routinely exceeds USD $2–5 million per unit and demands months of planned outage time. DriveKNMS holds verified physical stock of the IS200ECTBG1A. This is not a catalogue listing. This is a confirmed, inspected unit available for immediate shipment.

Technical Specifications

Solving the Discontinued Hardware Crisis

The GE Mark VI platform entered service in the mid-1990s and became the dominant turbine control architecture across power generation, oil & gas, and petrochemical industries through the 2000s. GE's transition to the Mark VIe has left operators of legacy Mark VI installations in a difficult position: the OEM no longer supports active production of IS200-series boards, field service resources are shrinking, and the cost of a full platform migration is prohibitive for assets with 10–20 years of remaining mechanical life.

The IS200ECTBG1A sits at a particularly critical node in the excitation control chain. Exciter contact feedback is a mandatory input for generator protection and AVR (Automatic Voltage Regulator) loop integrity. A failed or degraded ECTBG board does not produce a graceful degradation — it produces a turbine trip or, in worst cases, an undetected excitation fault that escalates to generator damage. There is no software workaround. The board must be replaced with an identical or functionally equivalent unit.

For plant managers operating under capital expenditure constraints, the strategic answer is not a rushed platform migration. It is a disciplined spare parts strategy: identify the five to ten IS200-series boards that represent the highest single-point-of-failure risk, secure verified stock of each, and extend the operational life of the existing Mark VI installation by 5–10 years while a properly funded migration is planned and budgeted. The cost of holding two IS200ECTBG1A spares is measured in thousands of dollars. The cost of an unplanned outage caused by the absence of one is measured in millions.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry real risk. DriveKNMS applies a structured 5-step inspection protocol to every IS200ECTBG1A unit before it leaves our facility:

• Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burnt traces, cracked solder joints, and connector pin integrity. Boards with any physical compromise are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: IS200-series boards manufactured in the late 1990s and early 2000s are subject to electrolytic capacitor aging. Each capacitor is checked for bulging, leakage, and ESR (Equivalent Series Resistance) deviation. Aged capacitors are flagged and, where applicable, replaced with specification-matched components.
• Step 3 – Firmware and Label Verification: The board revision suffix (G1A) is cross-referenced against GE's Mark VI compatibility matrix. Boards with mismatched firmware revisions or undocumented field modifications are quarantined and disclosed separately.
• Step 4 – Pin and Connector Corrosion Check: All edge connectors and terminal blocks are inspected under magnification for oxidation and corrosion. Contact surfaces are cleaned to IPC-610 standards where required.
• Step 5 – Functional Verification: Where test bench capability permits, boards are powered and basic I/O continuity is confirmed. Full system-level functional testing requires integration into a live Mark VI rack, which is performed on request for high-volume orders.

Units are classified as New Surplus (factory-sealed, never installed) or Refurbished – Grade A (previously installed, passed all 5 inspection steps). Classification is disclosed on the invoice and shipping documentation.

Key Features for System Maintenance

• Drop-in replacement: The IS200ECTBG1A installs directly into the existing Mark VI rack slot with no hardware modification. No re-wiring of field cables is required.
• No reprogramming required: The Mark VI controller recognizes the board via the existing I/O configuration. There is no firmware flashing or parameter re-entry required at the board level.
• Avoids engineering reconstruction costs: A like-for-like board swap eliminates the need for I/O re-mapping, protection logic revalidation, and HMI reconfiguration that a platform migration would demand.
• Immediate availability: Stock is held at our warehouse and can be shipped within 24–48 hours of order confirmation, supporting both planned maintenance windows and emergency breakdown scenarios.
• Long-term spares strategy support: DriveKNMS can assist in identifying and sourcing the full IS200-series board set required to protect a Mark VI installation for an extended operational period.

FAQ

Q: What warranty applies to an obsolete board like the IS200ECTBG1A?
A: New Surplus units carry a 12-month warranty against manufacturing defects. Refurbished – Grade A units carry a 6-month warranty covering the inspection scope described above. Warranty claims are handled by direct replacement or credit; terms are confirmed on the sales order.

Q: How do I know the unit is genuine GE and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects, authorized distributors, or OEM overstock channels. GE part markings, date codes, and board revision labels are verified during intake inspection. Provenance documentation is available on request for critical applications.

Q: Should I buy one spare or multiple?
A: For a Mark VI installation with no planned migration within 5 years, holding a minimum of two IS200ECTBG1A boards is a defensible risk management position. Secondary market availability of IS200-series boards is declining as installed base units age out. Prices for hard-to-find boards trend upward as supply contracts. Purchasing now at current market pricing is a lower-cost option than emergency procurement during an unplanned outage.

Q: Can you source other IS200-series boards for our Mark VI system?
A: Yes. Contact us with your full board list and we will provide availability and pricing across the IS200 series.
